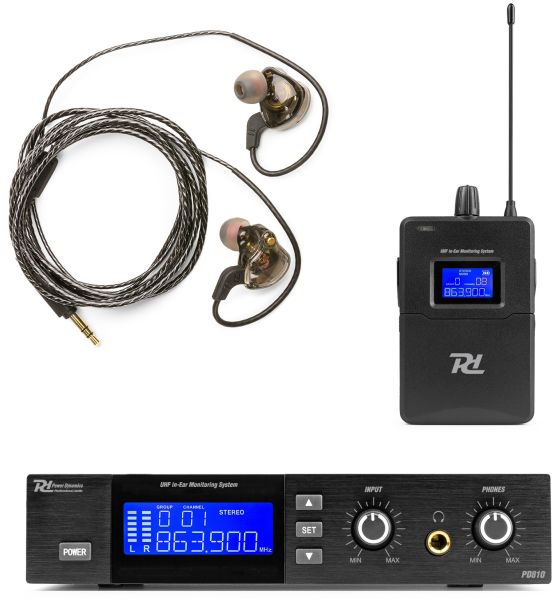

Power Dynamics PD810 In Ear Monitor System UHF

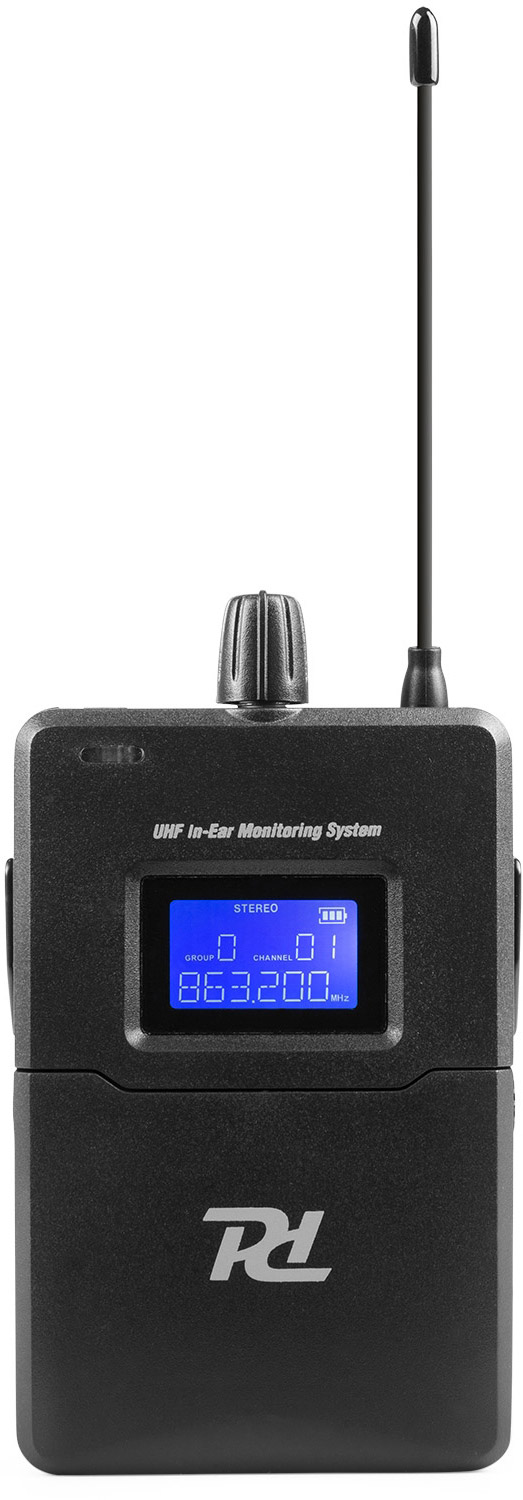

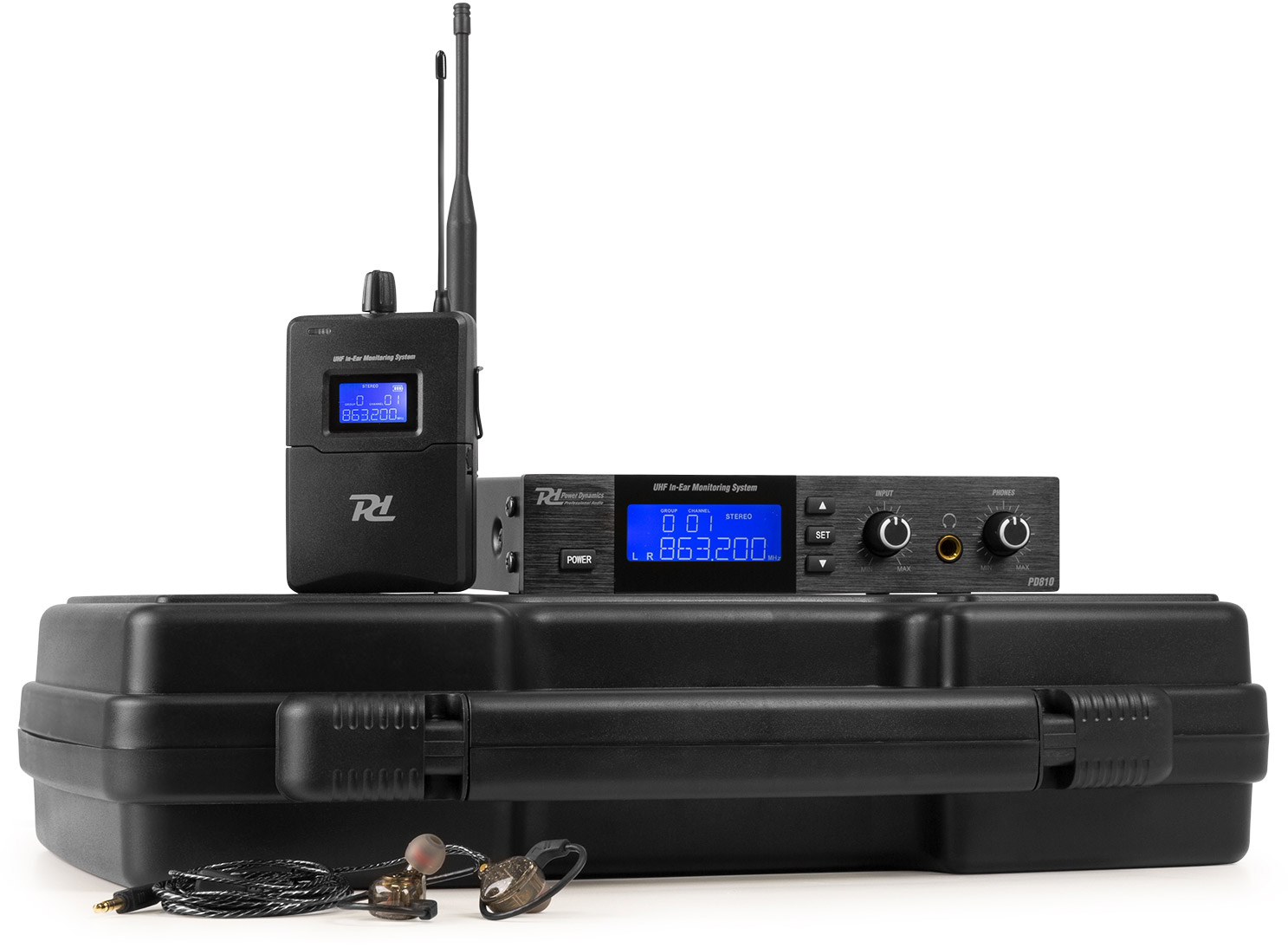

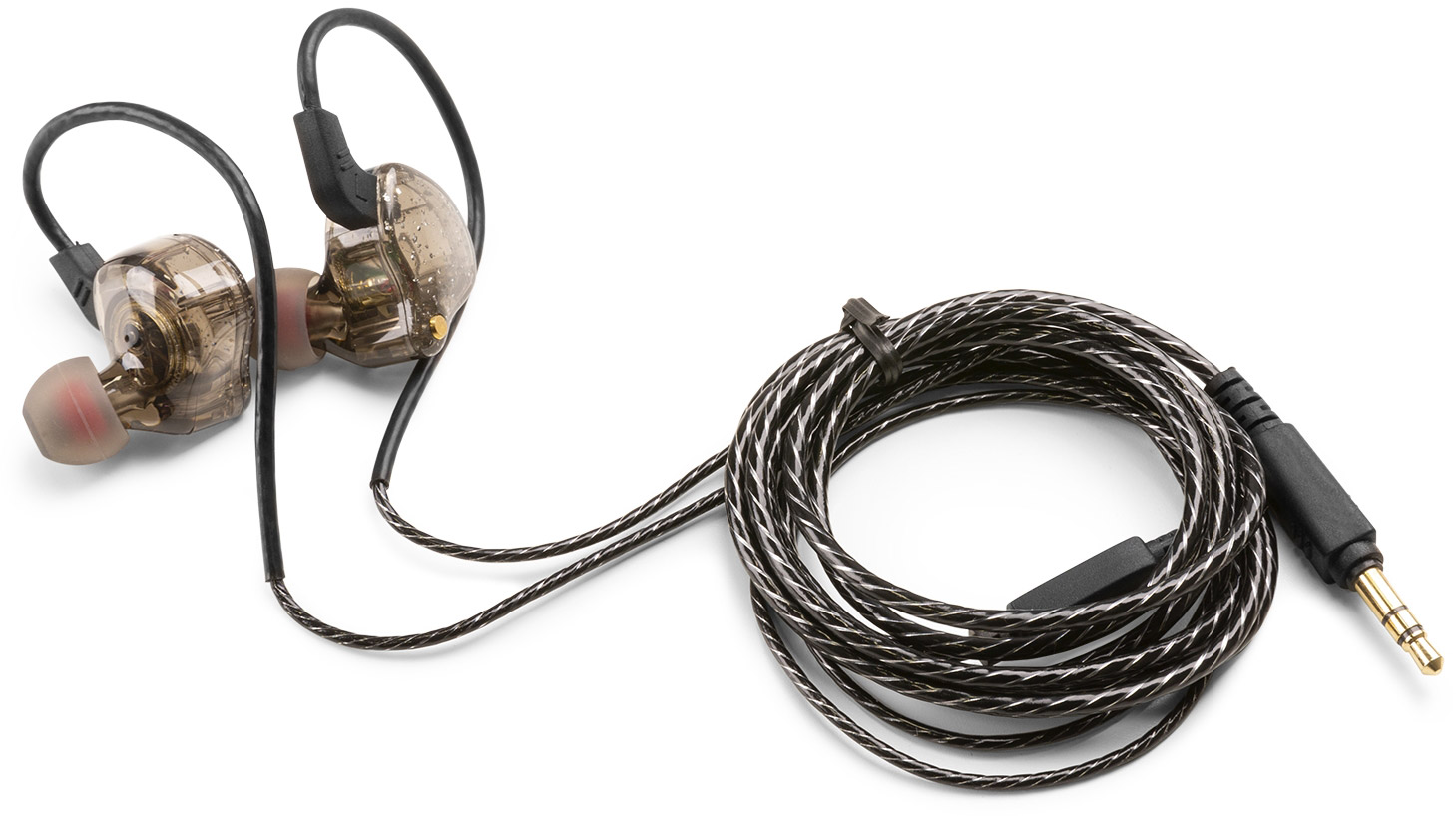

The PD810 In Ear Monitoring System is a professional-grade monitoring system designed to provide crystal-clear audio with exceptional clarity, making it an ideal choice for musicians, vocalists, and other performers. Featuring a compact and lightweight design, the PD810 is easy to use and comfortable to wear, making it perfect for extended use on stage or in the studio. The set is equipped with an easy to read backlit LCD display on both the receiver and transmitter and comes with an isolated earphone. It’s also possible to use your own custom designed earphones. With its advanced UHF wireless technology, the PD810 offers stable and interference-free performance, even in crowded and high-interference environments. The system includes 15 channels to choose from, allowing you to easily find the best frequency for your specific application.

• Frequency Range: UHF 863 – 865mHz
• Max. 50m operating range (under typical conditions)
• PLL oscillator
• 15 selectable channels
• Rugged metal housing

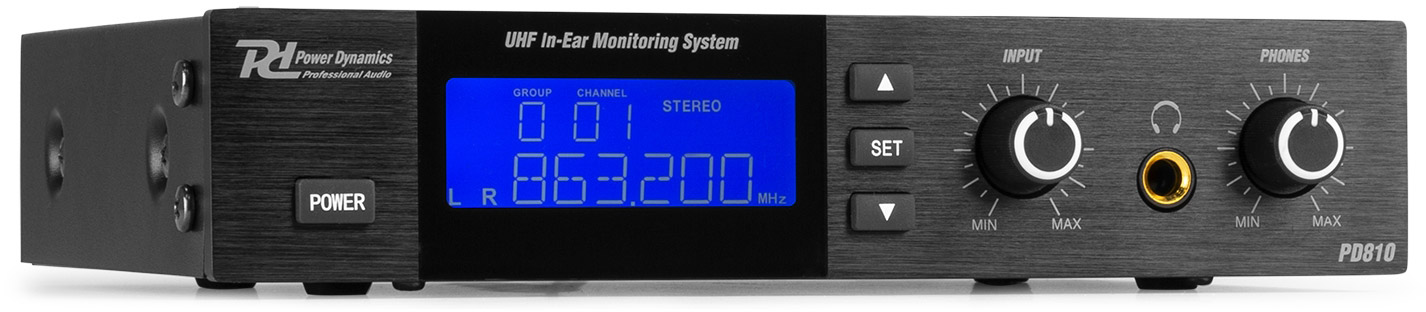

• LCD display function with backlight
• Signal/noise ratio: > 80dB

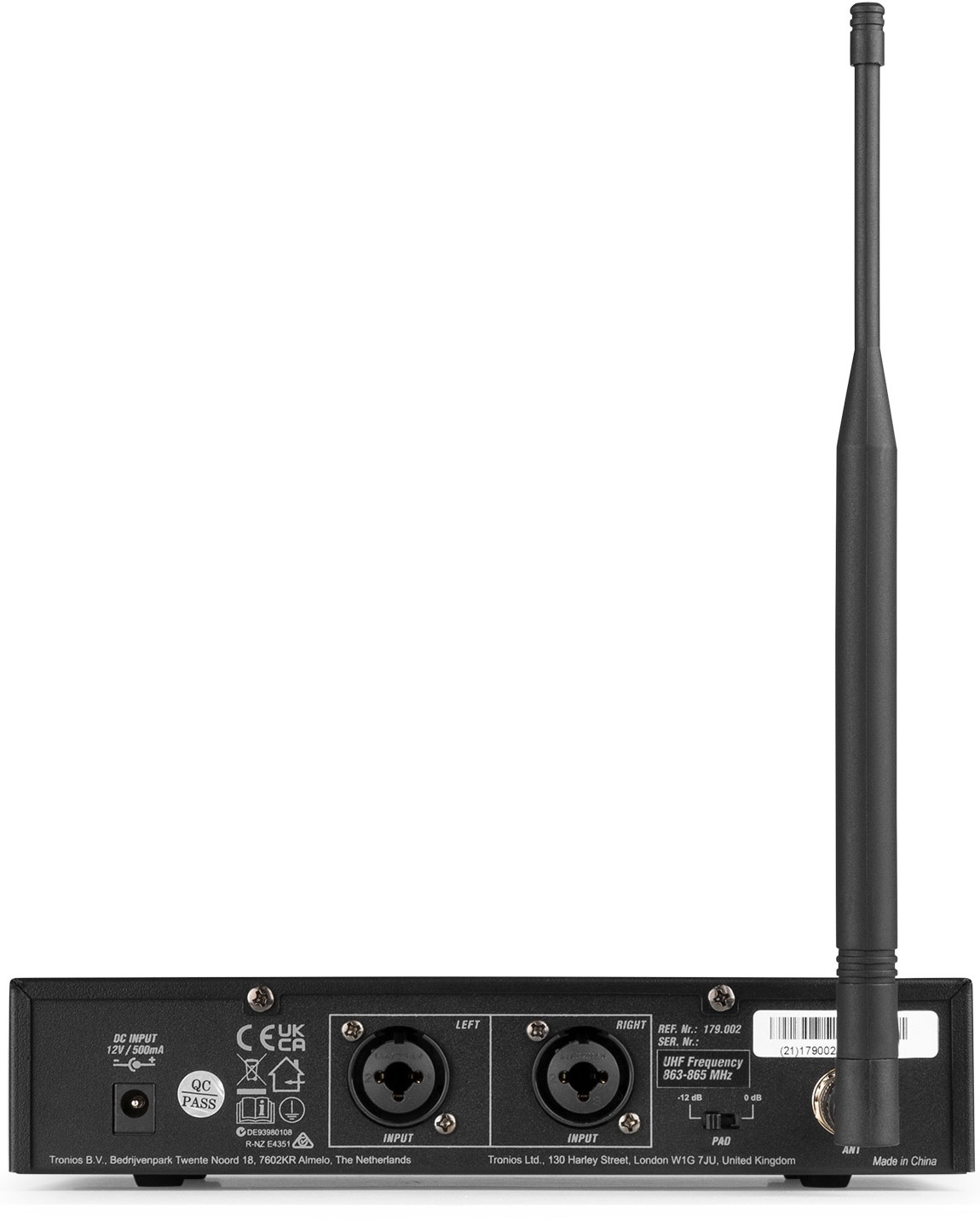

• Input: XLR L+R & 6.3mm Jack L+R
• Output: 6.3mm Jack L+R
• Audio sampling: 24bit/48KHz

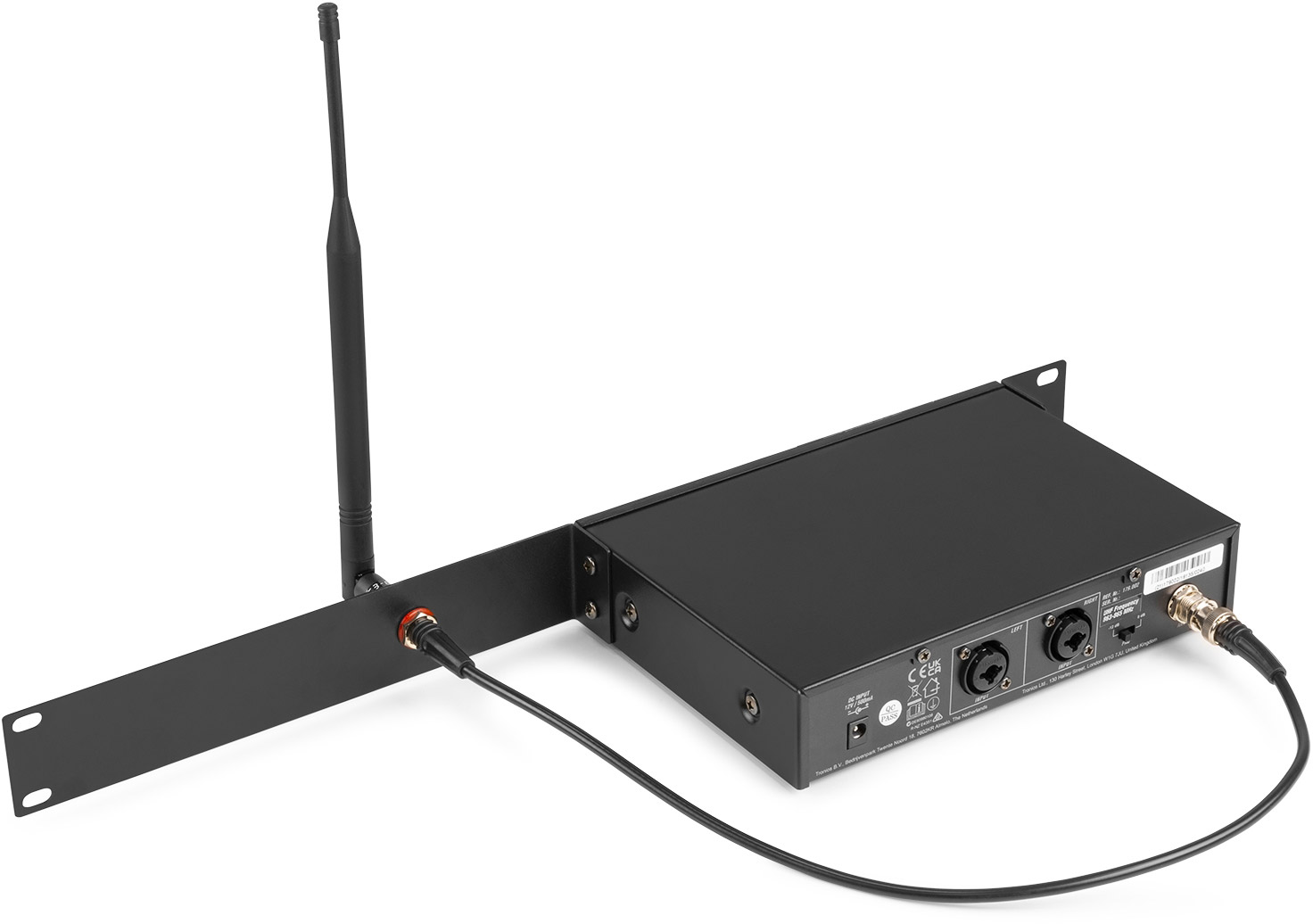

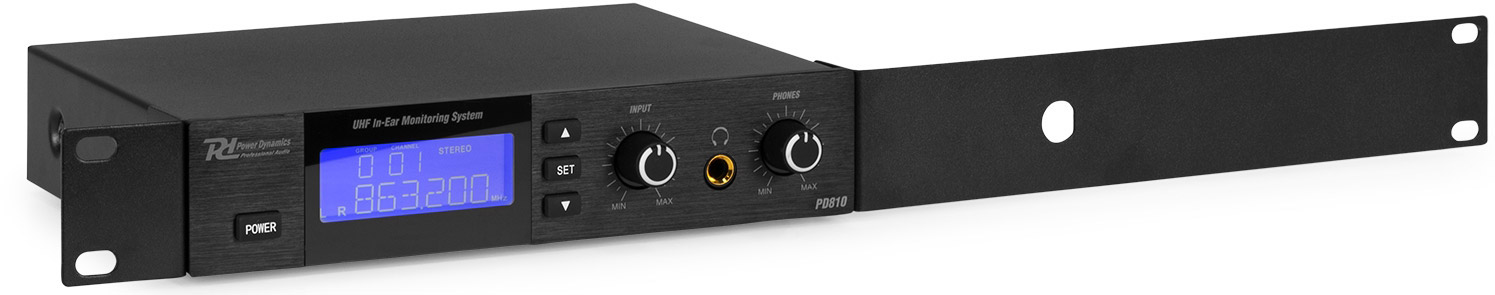

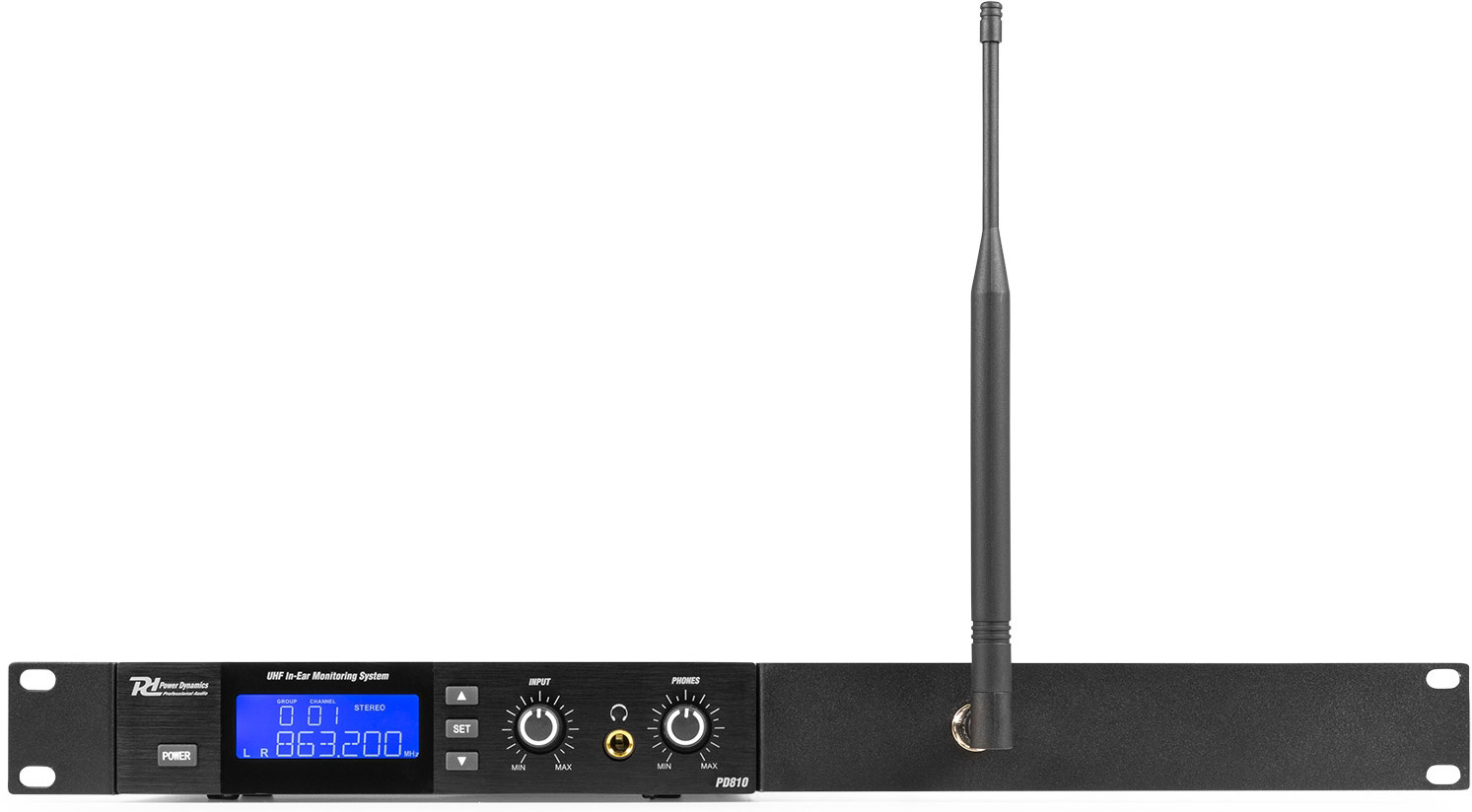

• Including 19" bracket with antenna extension cable

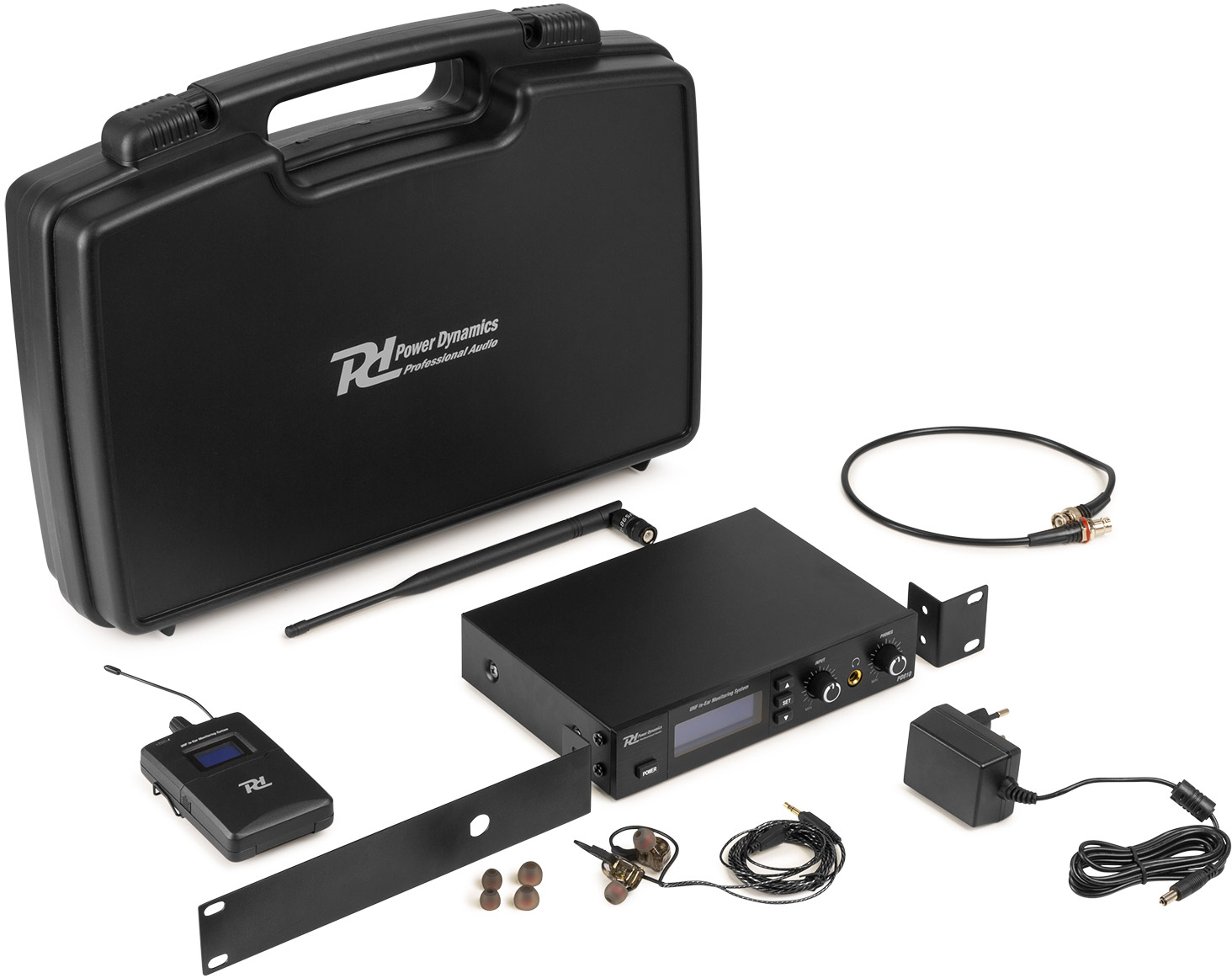

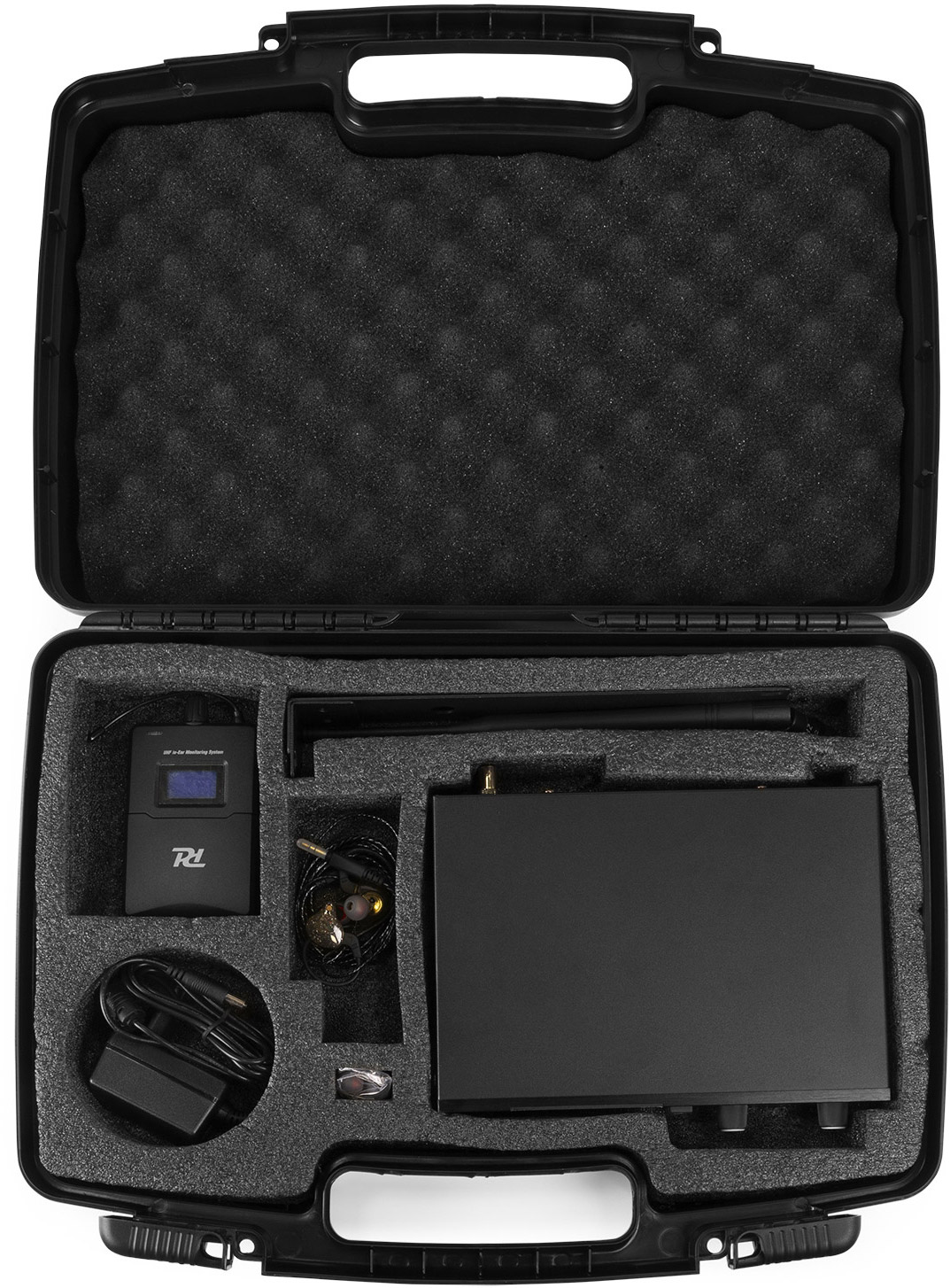

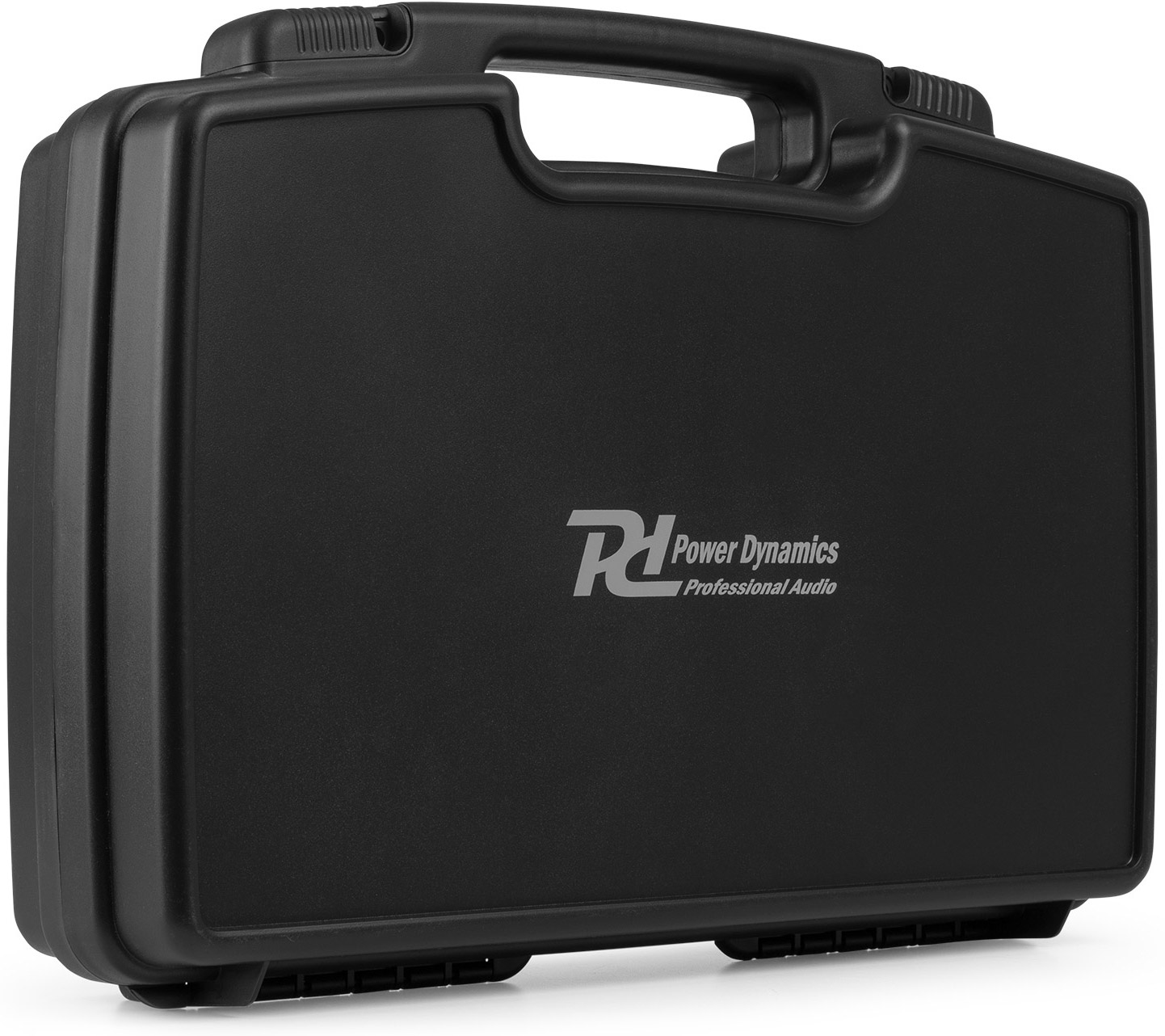

• Supplied in robust plastic case

Technical data:

• Product colour: Black
• Input connections: 6.3mm Jack, XLR (3-pin)
• Output connections: 3.5mm Jack, 6.3mm Jack
• Frequency: 863.000 - 865.000 MHz
• Frequency response : 20Hz - 20.000Hz
• Sensitivity: 80dB on input 6dBµV
• Signal-to-noise ratio: >105dB
• THD: 3%
• Batteries: 3V (2x AA)
• Power supply: 100-240VAC 50/60Hz (12V Adapter)
• Power consumption: 0.081 - 0.040A
• Dimensions (L x W x H): 215 x 178 x 47mm

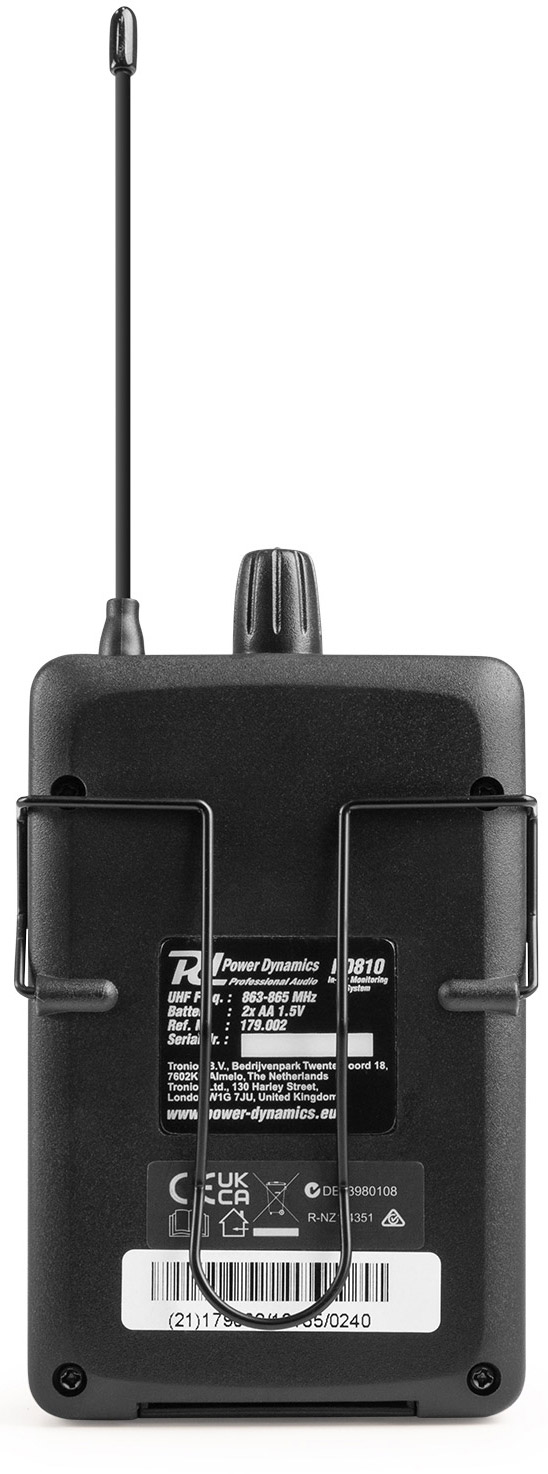

• Dimensions: Body pack: 120 x 66 x 27mm (without antenna)
• Weight: 1.4200 kg
• Weight: Bodypack: 0.15
