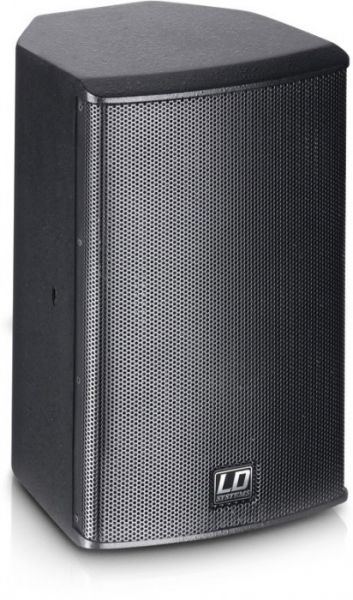

LD Systems SAT 62 A G2 - 6.5" active Installation Monitor black
Delivery time: approx. 1 week
The LD Systems SAT62AG2 is the active version of the SAT62G2. The compact 2-way speaker is not only suitable for installation, but also as a home studio monitor and for other sound reinforcement tasks.

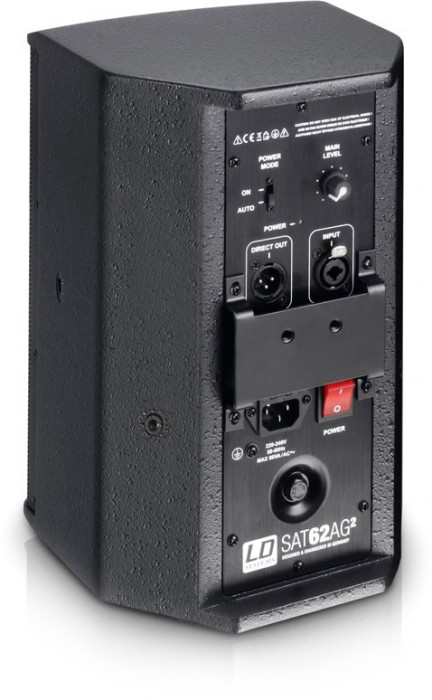

The bass-reflex design is loaded with a 6.5" custom woofer and a 1“ silk dome tweeter with wave guide, which are driven by a Class AB power amplifier with 50 W RMS power and overcurrent protection. The input is a XLR-jack combo socket, an XLR socket permits looping through of the signal. Reproduction is balanced and dynamic throughout the frequency range of 55 Hz - 20 kHz and attains a maximum sound-level pressure of 108 dB. The SAT62AG2 features a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.

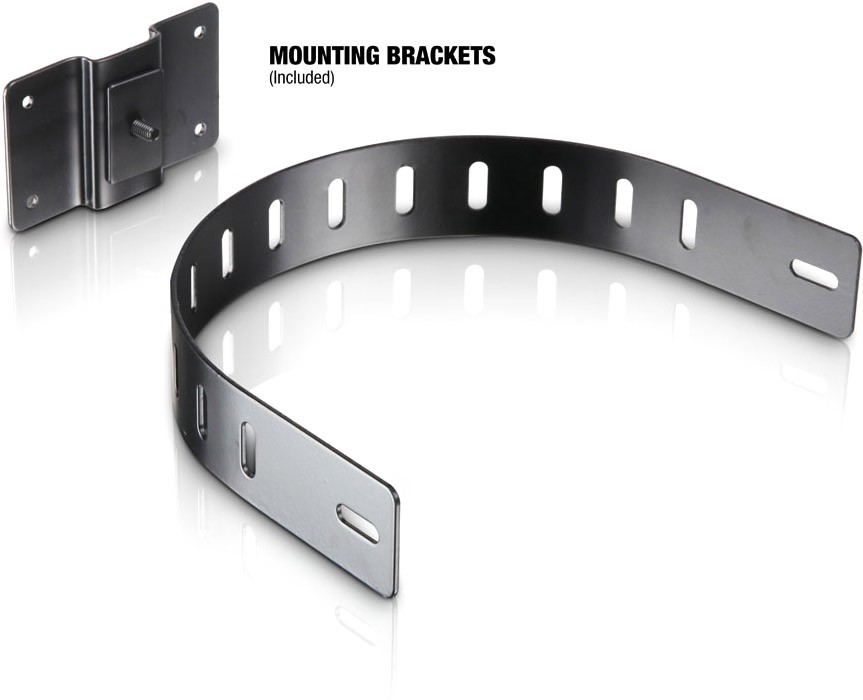

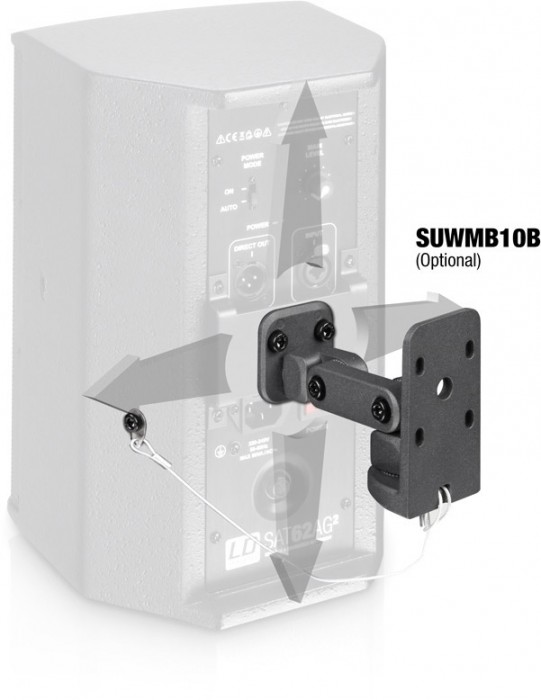

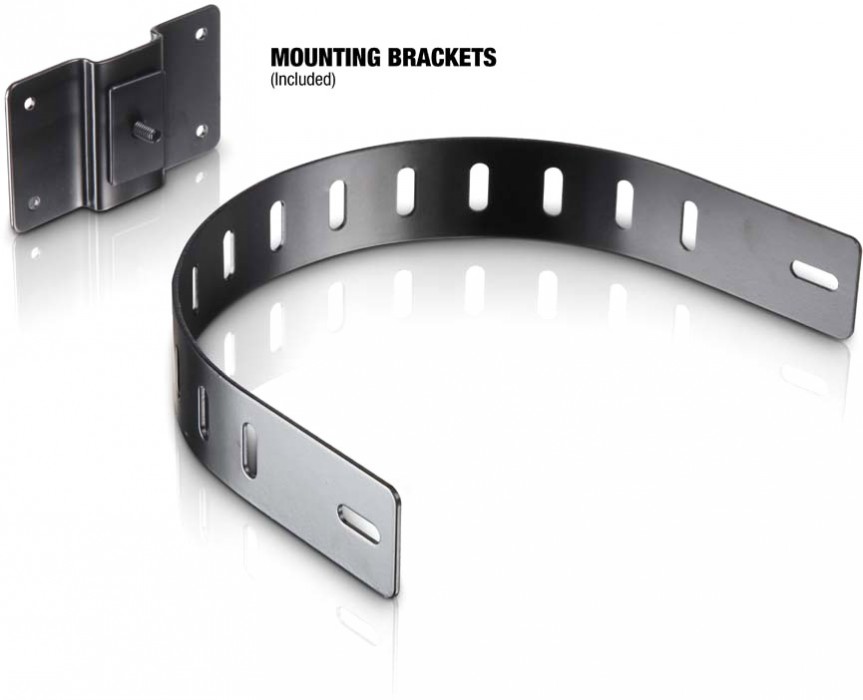

The 12 mm MDF cabinet with a durable textured coating is available in black and white and equipped with M6 rigging points. An included mounting bracket offers additional possibilities for mounting; a universal joint mount is available as an accessory.
Technical data:| Product type: | Installation Loudspeakers |
| Type: | Wall-mounted Loudspeaker |
| Low/mid driver dimensions: | 6.5 " |
| Woofer size: | 165 mm |
| Woofer magnet: | Ferrite |
| Woofer brand: | Custom-made |
| HF driver dimensions: | 1 " |
| HF driver size: | 25 mm |
| HF driver magnet: | Ferrite |
| HF driver brand: | Custom-made |
| Power amplifier (Class A): | Class A/B |
| Dispersion (H x V): | 60 x 60 ° |
| RMS: | 50 W |
| Frequency response: | 55 - 20000 Hz |
| Max. SPL: | 108 dB |
| Protection circuits: | HF Driver |
| Protection circuits: | over voltage |
| Controls: | mains switch (on/off) |
| Controls: | switchable auto power mode |
| Controls: | volume control |
| Indicators: | Power |
| Line input connectors: | 6.3 mm jack |
| Line input connectors: | XLR |
| Line output connectors: | XLR |
| Operating voltage: | transformer |
| Operating voltage: | 220 V AC - 240 V AC, 50-60 Hz |
| Cabinet material: | 12 mm MDF |
| Cabinet surface: | texture paint |
| Cabinet colour: | Black |
| Cabinet construction: | Bass Reflex |
| Width: | 200 mm |
| Height: | 320 mm |
| Depth: | 200 mm |
| Weight: | 5,25 kg |
| Features: | Wall bracket |
