DAP-Audio Xi-6 Passive 6" install speaker - white

The DAP Xi series offers passive installation speakers for a decent bass and a warm and clear Hi-Fi sound suitable for indoor locations. They'll be a perfect audio solution in places such as pubs, restaurants and shops. They can be closely mounted to a wall or ceiling due to multiple mounting options and recessed speaker connector. The design of Xi speakers are solid and practical. The high quality Celestion HF drivers meet the demands of today's audio enthusiasts.

Xi speakers can be mounted closely to a wall or ceiling with an optional U-shaped mounting bracket and compact speaker wall bracket. The speakers can be placed both horizontally and vertically as the horn of the Xi-8 and Xi-10 can be rotated to up to 90 degrees. For this you'll need to remove the grill. This can be done easily since it is magnet-mounted.

Our latest version is not only equipped with a speaker in- and output connector, but also with a green terminal connector. This is an easier and a more cost effective solution for setting up a fixed audio installation.

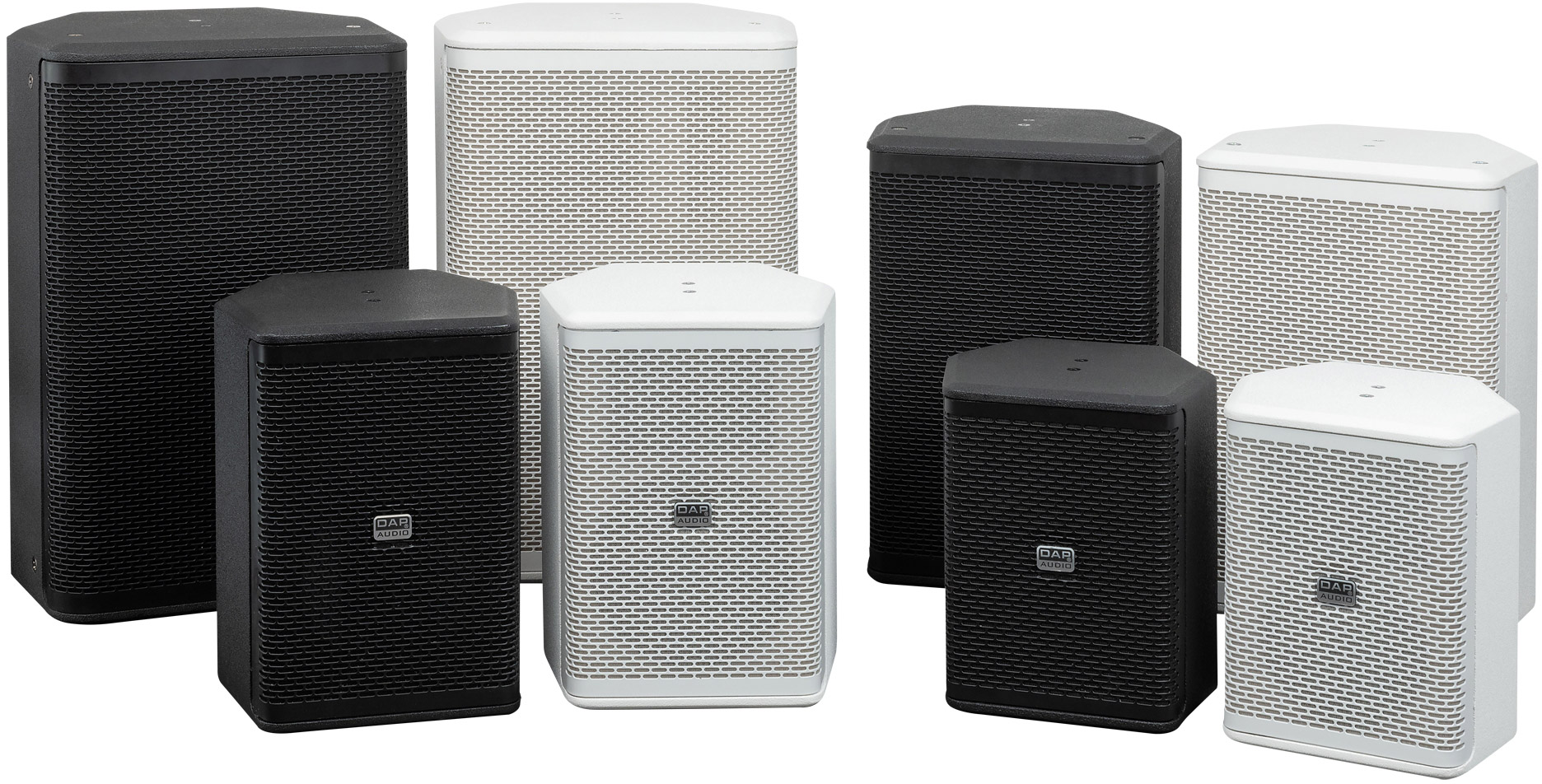

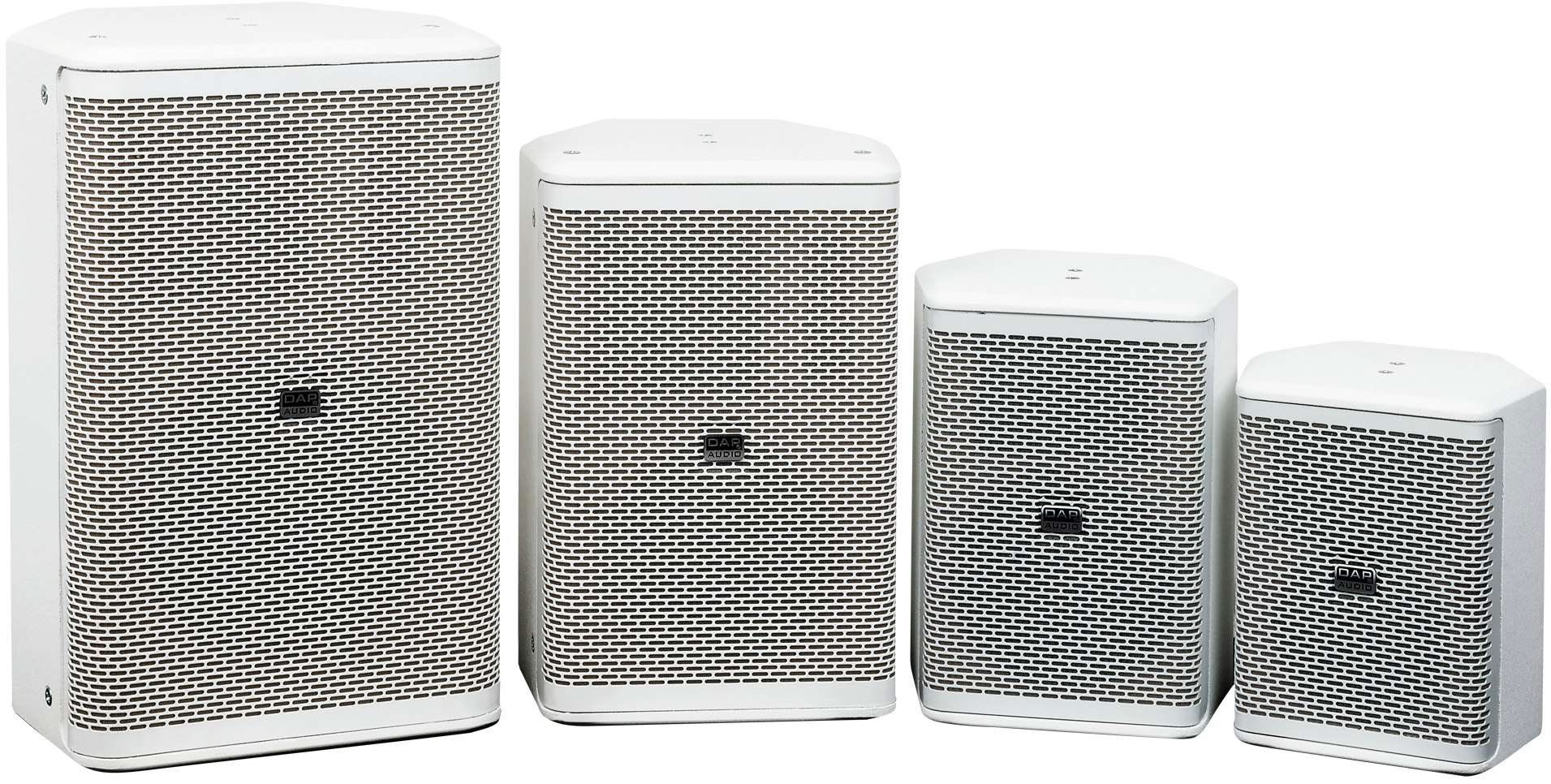

The Xi series consists of 5" to 10" full-range 2-way speakers. 12-inch and 2x 8-inch Xi subwoofers are also available for adding natural bass response under high pressure. All models are available in black and white to suit any environment. Interested in our DAP Xi series? Contact us now for free advice and get an offer you can't refuse or check out our product pages for more information.

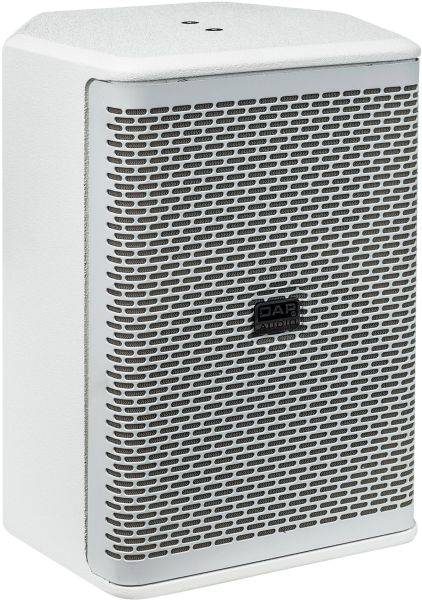

The DAP Xi-6 is an elegant 6.5 inch passive installation speaker with a 1" Celestion HF driver for clear Hi-Fi sound. It is particularly suitable for fixed indoor locations. Its ingenious design, with recessed Speaker 4-pin chassis, easily detachable magnet-mount grill and rotatable logo, is perfect for a variety of applications. Also, the speaker can be placed either horizontally or vertically due to its various mounting options.

This full-range 2-way speaker can be mounted directly to any ceiling or wall using the optional U-shaped mounting bracket and compact speaker wall bracket. The Xi-6 is not only versatile, it also fits into any environment since it is available in either black or white and works on any 16Ω audio infrastructure, capable of accomodating larger installations.

The speakers can be connected through either a Speaker 4-pin or green terminal connectors for a quick and cost-effective installation.Technical data:

Mono Input Impedance:	16 Ω
RMS Input Power:	175 W
Peak Input Power:	700 W
Passive Input Connection:	Speaker Connector 4 pole / Terminal
Speaker System:	2-way
Speaker Sensitivity (1 W/1 m):	92 dB
Speaker Impedance:	16 Ω
Maximum SPL at 1 m:	122 dB
Frequency Response Minimum:	80 Hz
Frequency Response Maximum:	20000 Hz
Frequency Response (-10 dB) Minimum:	60 Hz
Frequency Response (-10 dB) Maximum:	20000 Hz
Woofer Diameter:	6.5"
Woofer Voice Coil Diameter:	2"
Woofer Magnet Type:	Ferrite
Compression Driver Diameter:	1"
Compression Driver Voice Coil:	1"
Compression Driver Magnet Type:	Ferrite
Dispersion Angle (Horizontal):	90°
Dispersion Angle (Vertical):	60°
Height (mm):	333 mm
Width (mm):	250 mm
Length (mm):	226 mm
Material:	Plywood
Material Thickness:	12 mm
Colour:	White
Finish:	Painted
Weight:	6.7 kg
IP Rating:	IP20 (indoor use only)
Rotatable Horn:	No
Speaker Grille Material:	Steel
Rigging Eye Thread:	M6
