INTUSONIC 4VM100T 2-way Fullrange Column Array Speaker black

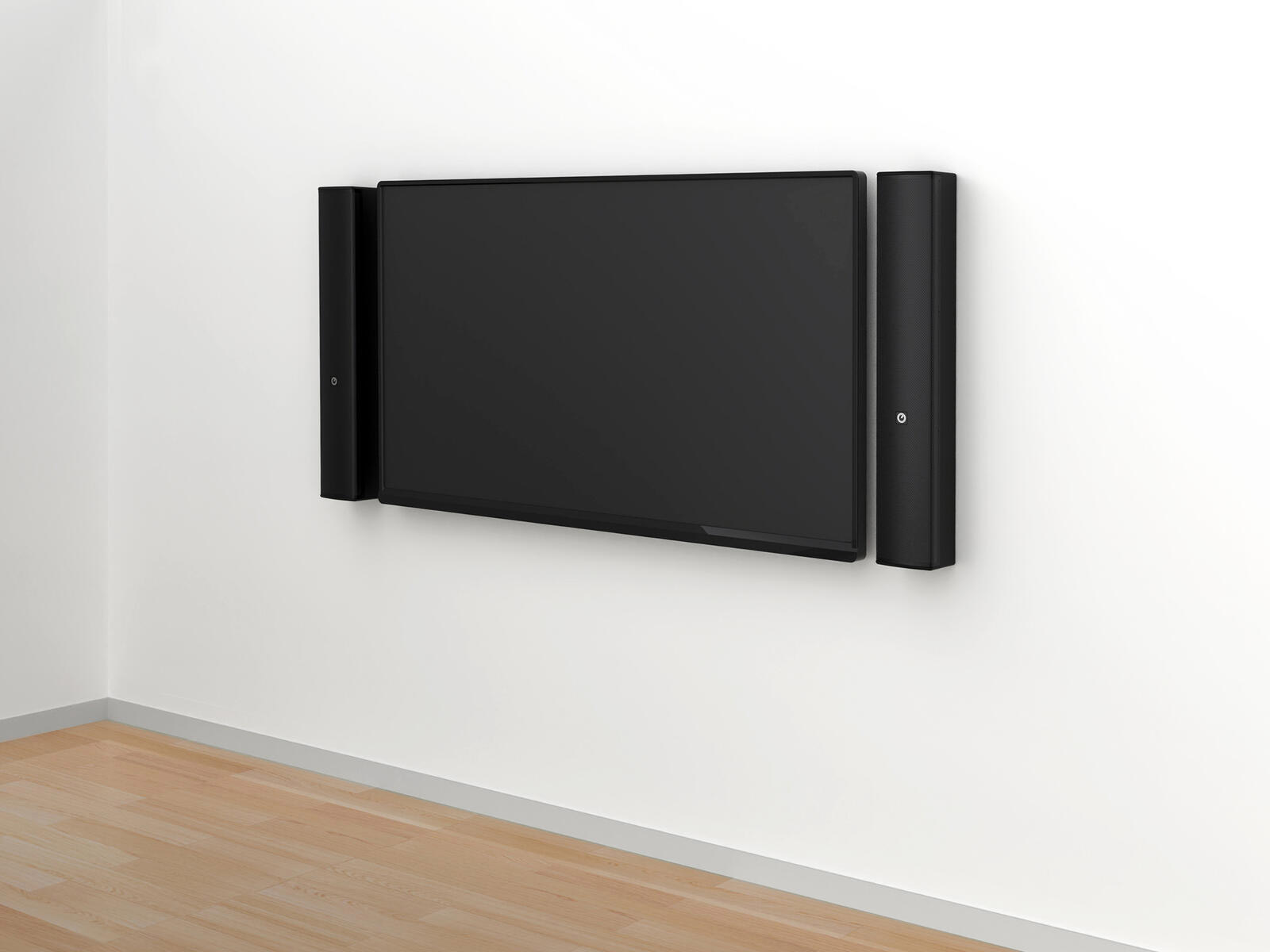

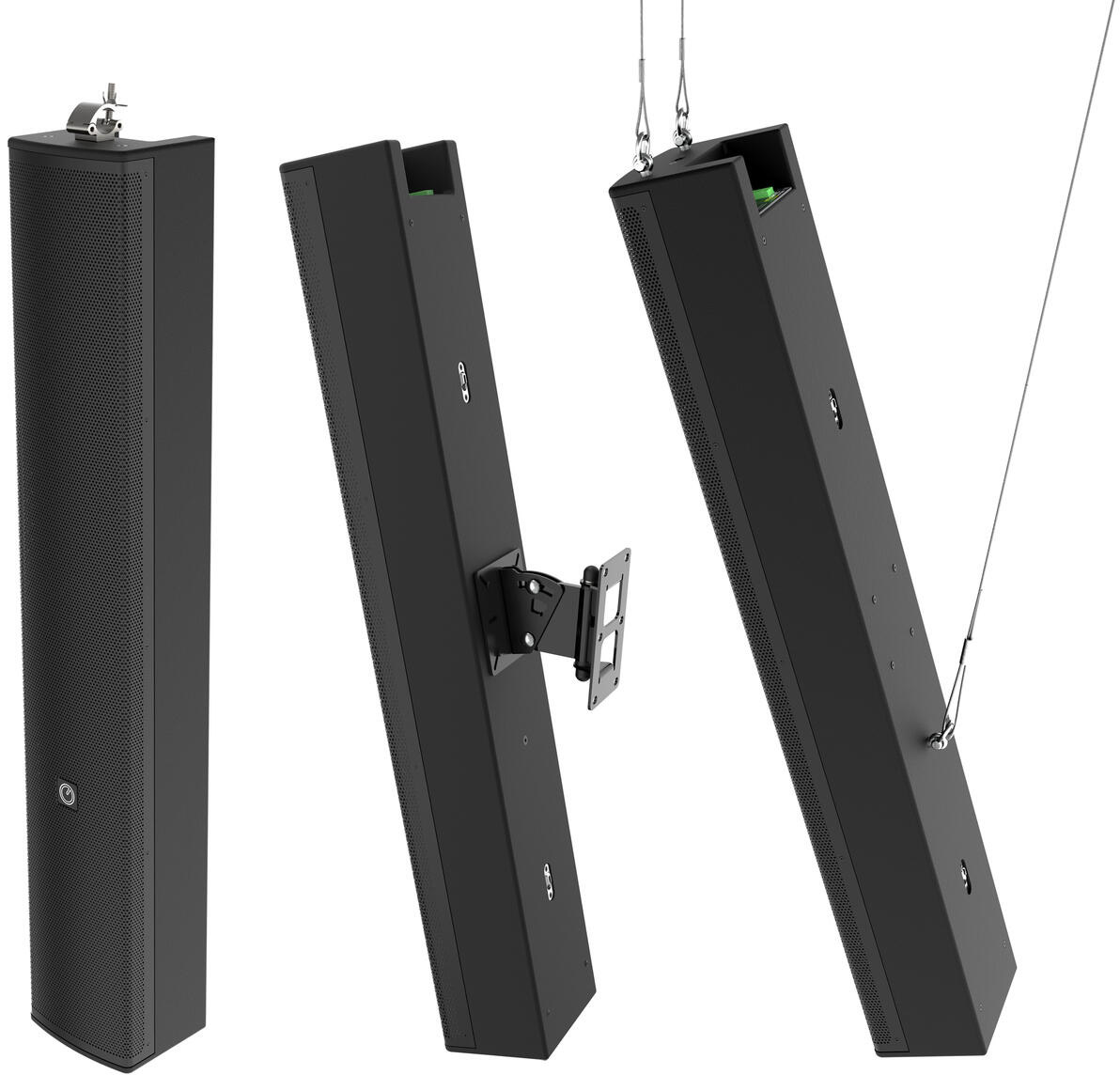

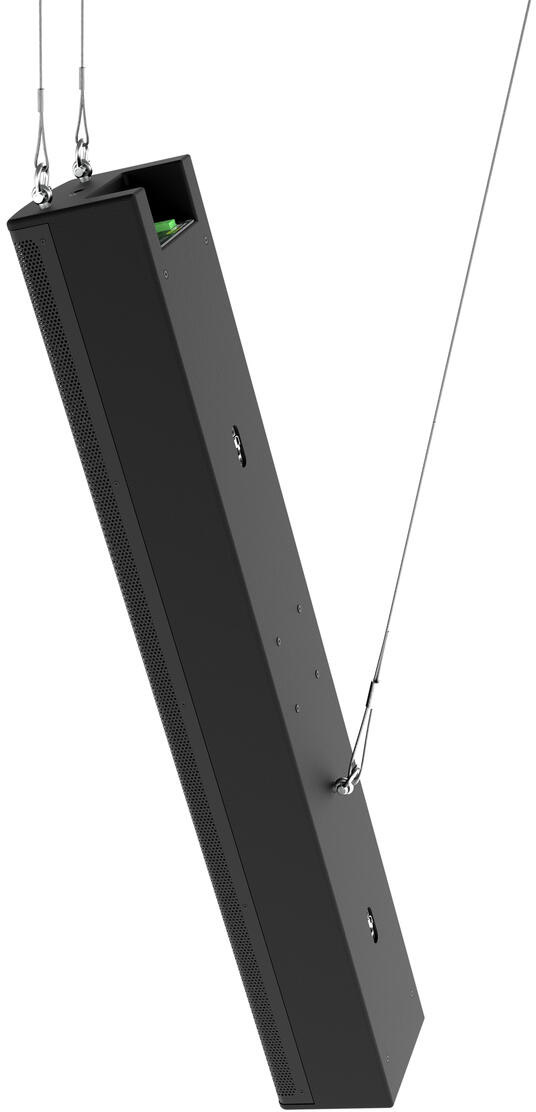

The INTUCAB 4VM100T column array is a real full-range speaker specifically designed for multimedia applications. It offers precise dispersion with tight vertical control to avoid unwanted reflections from ceilings and floors, but wide horizontal coverage. Custom-designed waveguide and phase plug parts allow this speaker to perfectly address the medium-throw requirements of seated audiences in class rooms, lecture rooms, chapels and board rooms. Mounting options include flying, vesa brackets, and flush wall mounting. Available in black and white structural paint finish.

Column array (4 x 4") with wave guide for multimedia applications, 280 W

• Optimized for best possible speech reproduction
• For applications where multimedia capabilities, especially reproduction of music, the INTUSONIC 8SM300T is recommended as extension

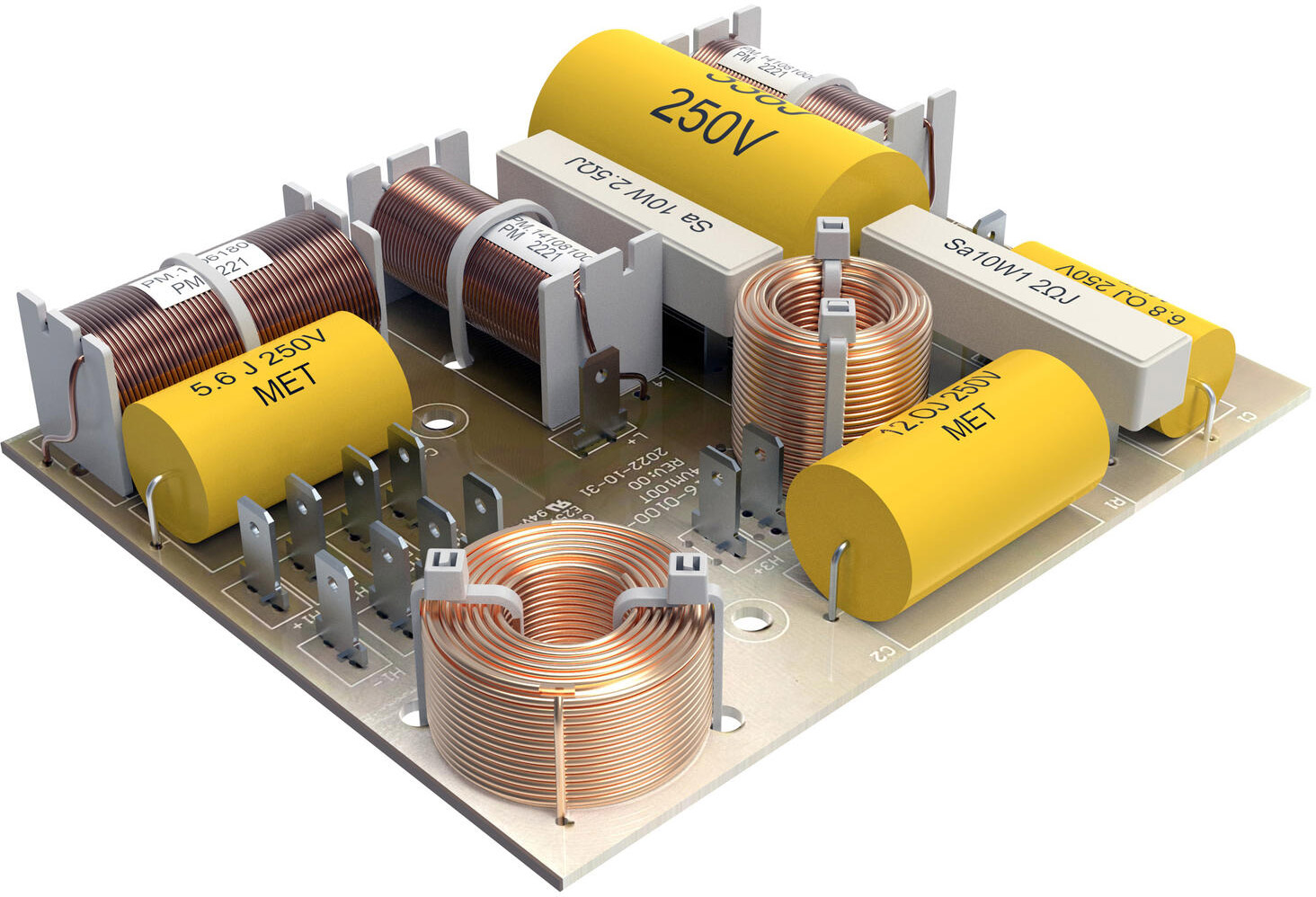

• Advanced passive crossover for best sound quality
• With rigging points

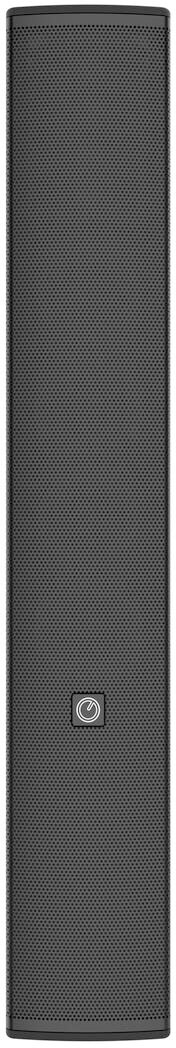

• Black metal grille with acoustic foam
• Scratchproof and shockproof
• For further information about this product, please refer to the Data Sheet under "Downloads"

Scope of delivery

• 1 x top
• 1 x user manual
• 1 x screw plug-in terminal
• 4 x safety eyelet
• 4 x foot
• 4 x screw

IP classification:	IP20
Power:	Rated: 140W AES Program: 280W
Frequency range:	90 - 18000 Hz
Sensitivity:	90 dB (1W/1m)
Max. SPL:	114 dB
Dispersion angle:	120° x 30°
Impedance:	4 ohms

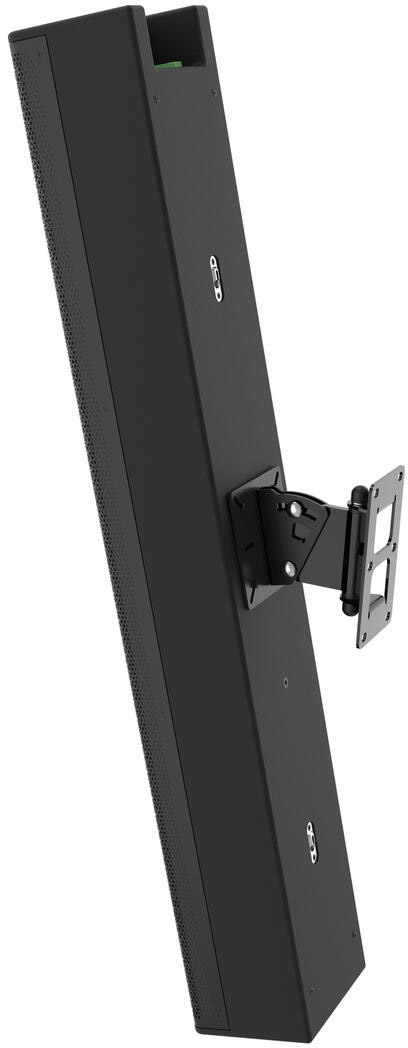

Attachment system:	VESA standard

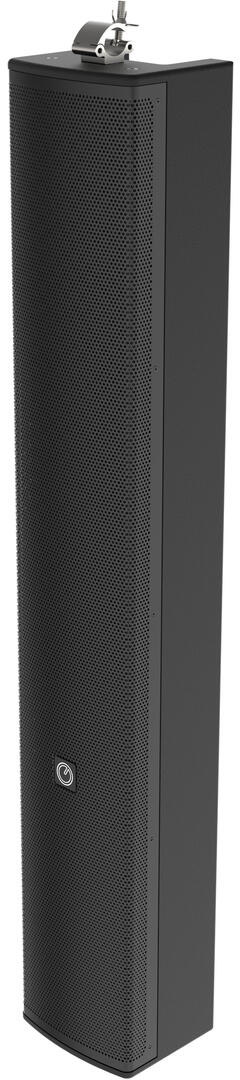

Flying points:	1 x M10 thread; 3 x M6 thread

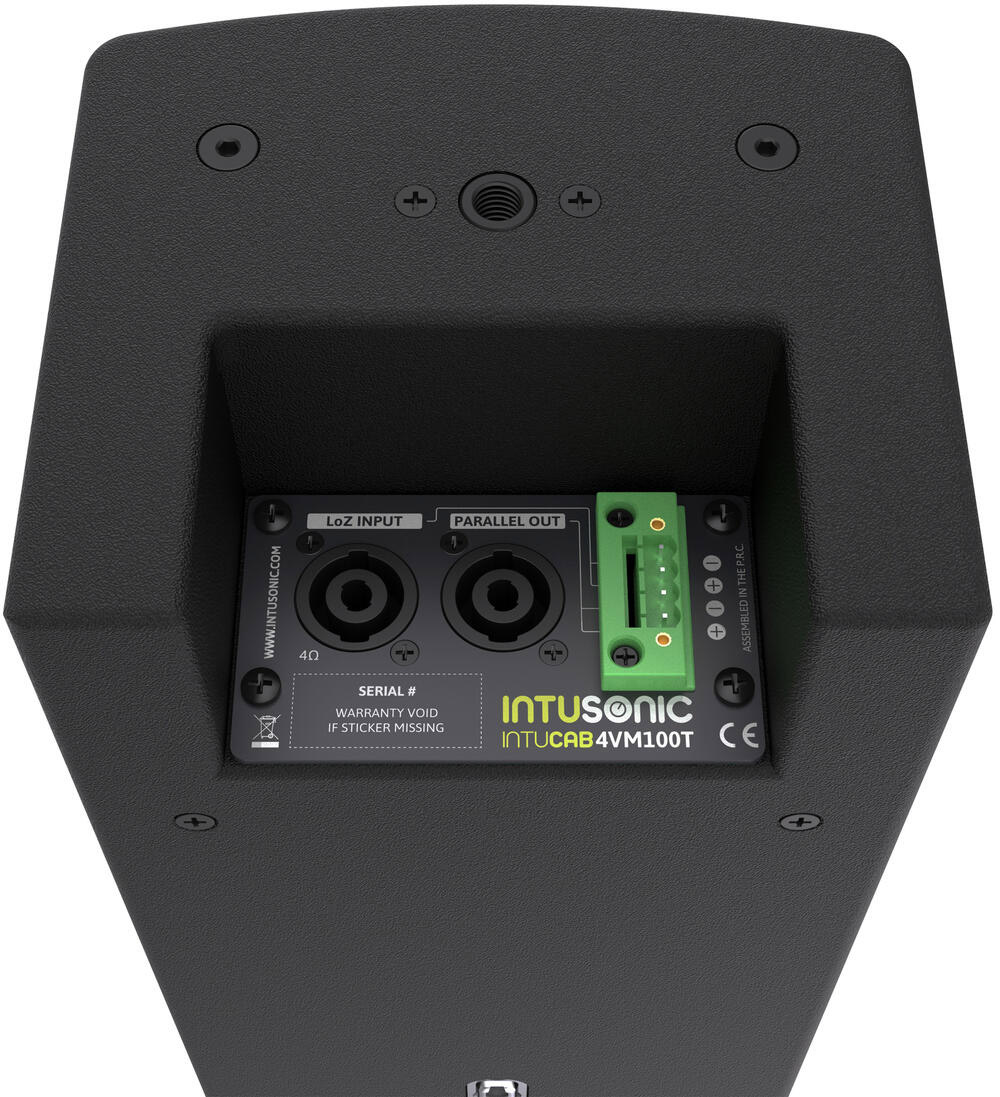

Connections:	Screw plug-in terminal Input: speaker built-in socket (F) Link: speaker built-in socket (F)

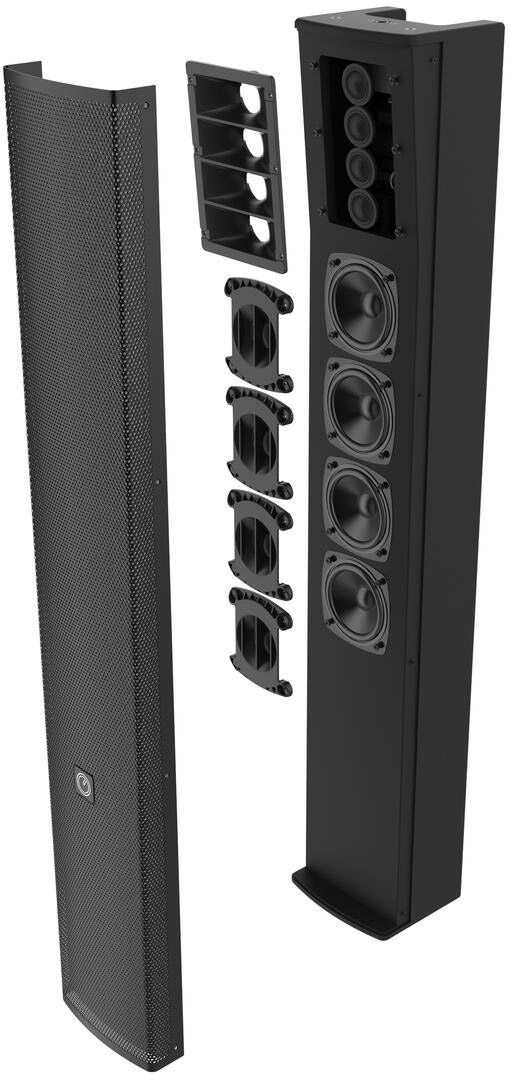

Speaker:	4 x woofer 4" Conematerial: cardboard/paper with phase plug 4 x dome tweeter 1" Dome drivermaterial: silk with wave guide
Type of speaker:	On ceiling/on wall speaker; pendant speaker
Material:	MDF (medium density fiberboard), 12 mm
Color:	Black, textured coating, scratchproof and shockproof
Dimensions:	Width: 16 cm Depth: 14 cm Height: 100 cm
Weight:	9.65 kg
