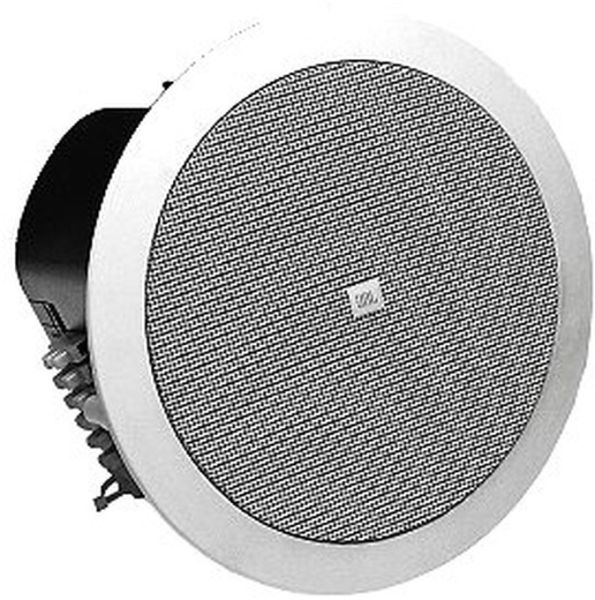

JBL Control 24C Micro- Background/ Foreground Ceiling Loudspeakers

The Control 24C is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.

Features

• Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter.
• High power, wide frequency response and low distortion for high sound level capability.
• Wide coverage allows fewer speakers, reducing the cost of the installed sound system without sacrificing performance.
• JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved system reliability.
• Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

• Frequency Range 80 Hz - 20 kHz
• Power Capacity 80 W Continuous Program Power; 40 W Continuous Pink Noise
• Nominal Sensitivity 86 dB SPL @ 1 m (3.3 ft)
• Nominal Coverage Angle 130° conical coverage
• Directivity Factor (Q) 2.4 dB averaged 500 Hz to 4 kHz
• Directivity Index (DI) 3.8 dB averaged 500 Hz to 4 kHz
• Rated Maximum SPL 102 dB @ 1 m (3.3 ft)
• Nominal Impedance 16 ohms (Min Z 16.1 ohms @ 320 Hz) (24C)
