dB Technologies DVX P10

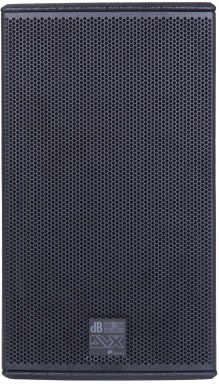

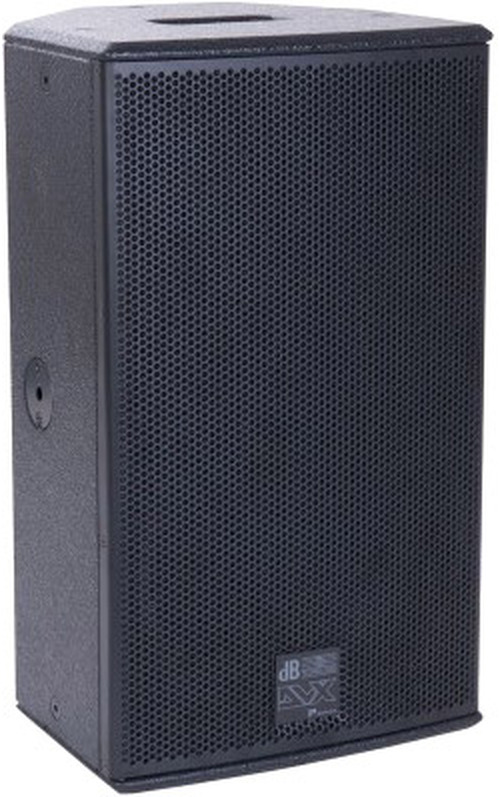

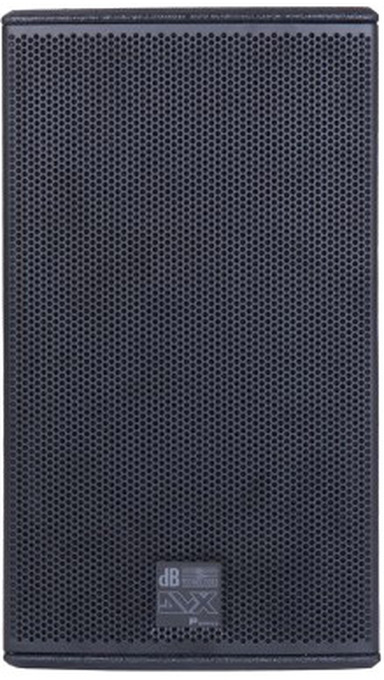

DVX P10 is a powerful 10” / 1” 2-way passive loudspeaker whose birch plywood cabinet has been specifically designed to render speech contents, background and any other kind of music in medium to large sized rooms.

Provided with a high-quality 10” woofer, a 1” neodymium compression driver on a rotatable CD horn and a premium crossover with precision filters, it assures maximum speech intelligibility and excellent audio properties at any sound pressure level. Not only, but combined with its compact dimensions, light weight and sturdy construction, it is rightfully placed among dBTechnologies high-end passive loudspeakers.

DVX P10 is equipped with a 10” woofer (2” voice coil) and a 1” compression driver (1.5” voice coil) on a 90°x70° rotatable CD- horn. It also features a passive crossover filter with 12dB/oct slope of for low-pass part, 18dB/oct for high-pass and a self-resetting thermal protection circuit on the high-frequencies driver to prevent protracted overloading.

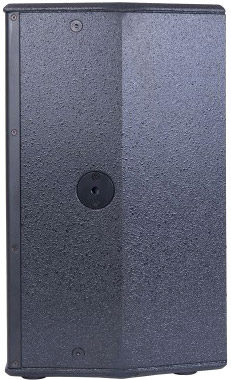

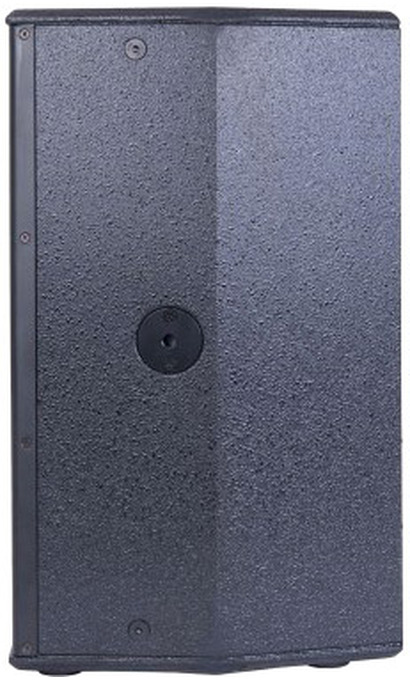

The huge versatility is confirmed by a top handle that enables easy transport, 2 flypins for wall-mount brackets located on the sides of the speaker, 12 x M8 threads rigging points, and a standard aluminum pole mount cup (D36mm). Its slanted back panel with two angles (40° and 22°) enables stage monitoring purposes, and the rotatable CD-horn allows the user to maintain the same high- frequencies coverage angle also when the speaker is used as monitor.

Combining the DVX P10 with DVX PSW passive subwoofer series, HPA Power amplifiers and AC26N loudspeaker processor creates premium quality audio Systems.

Features

• Passive 10 "/ 1" multi-function speaker
• 300W RMS
• 127dB max. SPL
• 90 ° x70 ° CD horn, rotatable
• flyingpoints
• 12.5 kg weight

Technical Data
Speaker Type:	2-Way Passive Speaker
Acoustical data
Nominal Power Rating:	300 W/RMS
Program Power Rating:	600 W
Impedance:	8 Ohms
Sensitivity 1W@1m:	96 dB
Frequency Response [+/- 3dB]:	90 - 19.000 Hz
Max SPL:	127 dB
HF:	1 "
Voice Coil HF:	1.5 "
Driver Protection:	PTC
Directivity:	90x70 °
Horn:	CD Horn Aluminium
Rotatable Horn:	YES
Crossover Frequency (passive):	1800 Hz
LF:	10 "
Voice Coil LF:	2 "
Input

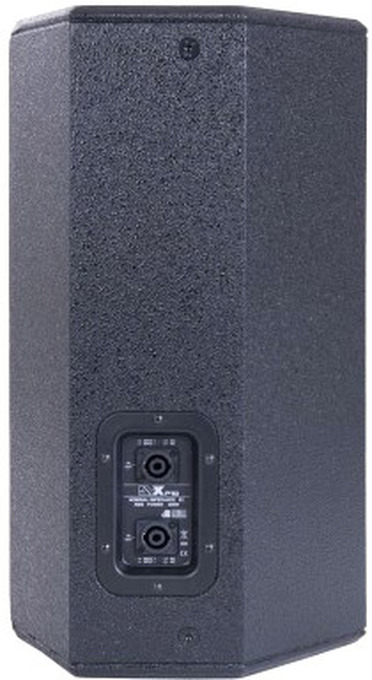

Signal Input:	1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output:	1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
Housing:	Multiplex plywood
Rigging Points:	12 x M8
Width:	290 mm (11.4 in)
Height:	510 mm (20.1 in)
Depth:	310 mm (12.2 in)
Weight:	12.5 kg (27.6 lbs)
