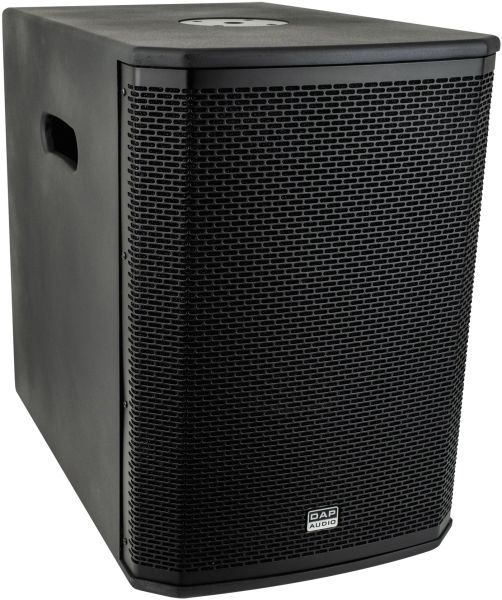

DAP-Audio Xi-12B Passive 12" subwoofer - black

The DAP Xi series offers passive installation speakers for a decent bass and a warm and clear Hi-Fi sound suitable for indoor locations. They'll be a perfect audio solution in places such as pubs, restaurants and shops. They can be closely mounted to a wall or ceiling due to multiple mounting options and recessed speaker connector. The design of Xi speakers are solid and practical. The high quality Celestion HF drivers meet the demands of today's audio enthusiasts.

Xi speakers can be mounted closely to a wall or ceiling with an optional U-shaped mounting bracket and compact speaker wall bracket. The speakers can be placed both horizontally and vertically as the horn of the Xi-8 and Xi-10 can be rotated to up to 90 degrees. For this you'll need to remove the grill. This can be done easily since it is magnet-mounted.

Our latest version is not only equipped with a speaker in- and output connector, but also with a green terminal connector. This is an easier and a more cost effective solution for setting up a fixed audio installation.

The Xi series consists of 5" to 10" full-range 2-way speakers. 12-inch and 2x 8-inch Xi subwoofers are also available for adding natural bass response under high pressure. All models are available in black and white to suit any environment. Interested in our DAP Xi series? Contact us now for free advice and get an offer you can't refuse or check out our product pages for more information.

The DAP Xi-12B is a compact, lightweight 12-inch passive installation subwoofer for creating a deep punchy sound with extra low grunt. It is ideal in combination with Xi series top cabinets and helps to optimize the sound experience in various applications such as party, cinema, theater and dance events.

The Xi-12B is not only versatile, but also fits into any space. It is available in both a black and white version. You can connect it to a 4-pin speaker cable. This makes bi-amp control possible.Technical data:

RMS Input Power:	300 W
Peak Input Power:	900 W
Passive Input Connection:	Speaker Connector 4 pole / Terminal
Passive Output Connector:	Speaker Connector 4 pole
Speaker System:	Subwoofer
Speaker Sensitivity (1 W/1 m):	122 dB
Speaker Impedance:	4 ?
Maximum SPL at 1 m:	125 dB
Frequency Response Minimum:	45 Hz
Frequency Response Maximum:	2800 Hz
Woofer Diameter:	12"
Woofer Voice Coil Diameter:	2.55"
Subwoofer Dispersion Angle (Horizontal):	360°
Subwoofer Dispersion Angle (Vertical):	180°
Height (mm):	513 mm
Width (mm):	350 mm
Length (mm):	542 mm
Material:	Wood
Colour:	Black
Weight:	19 kg
IP Rating:	IP20 (indoor use only)
