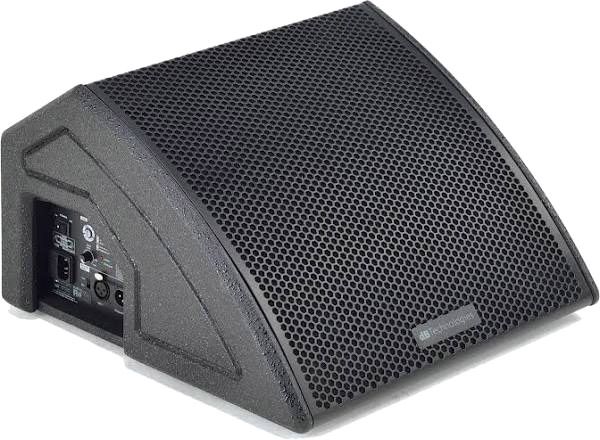

dB Technologies FMX 10

FMX is an active 2-way coaxial stage monitor series encompassing 3 models (10,12 and 15”) equipped with 400 RMS (for FMX 10) or 600 RMS (for FMX 12 and 15) Class D amplifiers.

The wedge’s coaxial acoustic design, together with its custom horn design and its advanced DSP featuring linear phase FIR filters, provides an even, highly-intelligible sound.

In facts, FMX’s horn design allows a very precise dispersion pattern (60° horizontal and 90° vertical) which can be easily reversed (90° horizontal and 60° vertical) by rotating the horn, adapting the wedge to the habits of the user.

Moreover, 8 on-board presets optimize EQ for different needs making FMX a skilful yet easy-to-use tool for performers of every kind.

All wedges of the series feature a peculiar front-rear grille design, a single handle integrated on the bottom side of the plywood cabinet and a 36mm pole mount on side panel which further enhance FMX versatility.

Technical Data

• Speaker Type: 2-Way Active Coaxial Stage Monitor

Acoustical data

• Frequency Response [- 10 dB]: 57 - 19.000 Hz
• Max SPL: 125 dB
• HF: 1", 1" v.c.
• Directivity: 60°X90°
• Horn: Rotatable
• LF: 10", 2" v.c.
• Amplifier
• Amp Class: Class D
• Peak Power: 800 W

Processor

• Controller: DSP 28/56 bit
• AD/DA Converter: 24 bit/48 Hz
• System Presets: 8 presets
• Limiter: Peak, RMS, Thermal
• Advanced DSP Funtion: FIR Filters
• Crossover Frequency: 1800 Hz
• Slope LF/HF: 24 dB/oct

Mechanics

• Housing: Plywood
• Housing Design: Multifunctional
• Handles: 1 integrated on bottom side
• Pole mount: 36 mm
• Width: 390 mm (15.35 in)
• Height: 268 mm (10.55 in)
• Depth: 411 mm (16.18 in)
• Weight: 11.3 kg (24.9 lbs)
