DAP-Audio EVO 8A Active 8" installation speaker set - black

The DAP Evo range offers decent 4" to 8" wall speaker sets with multi-angle brackets that are easy to install and adjust, suitable for background music at public places, businesses and theme parks. They are available in three versions: active indoor, passive outdoor and 100 V outdoor. The speakers have different mounting options for both horizontal and vertical positioning and are available in black and white versions to suit any environment.

The active Evo speakers are equipped with a built-in Class D amplifier with 2-band equalizer and volume control. The RCA and balanced green terminal inputs allow a quick and economical installation. The passive Evo speakers are suitable for outdoor installations. They have an IP54 rating and are equipped with a cap to protect the connectors from heavy rainfall. The 100 volt Evo Speakers also have an IP54 rating and are suitable for both 70 and 100 volt installations with 5 power taps and a low impedance.

Interested in our DAP Evo series? Contact us now for free advice and get an offer you can't refuse or check out our product pages for more information.

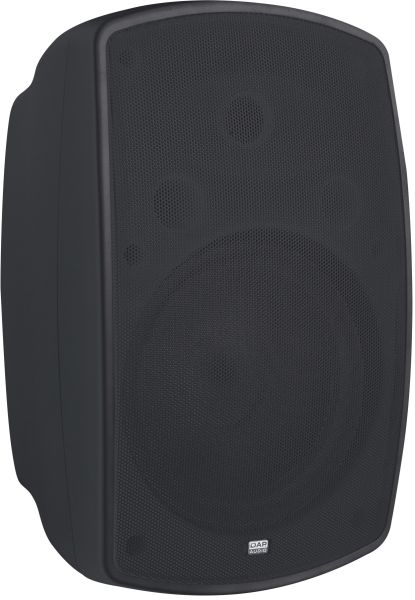

The DAP EVO 8A is a set of 2x 8" active installation speakers for a full-range Hi-Fi sound of up to 114 dB at 1 meter each. It fits nicely into any small indoor application due to its elegant design (available in black and white), strong construction and excellent sound quality. It is a perfect audio solution for many public places such as restaurants and retail stores.

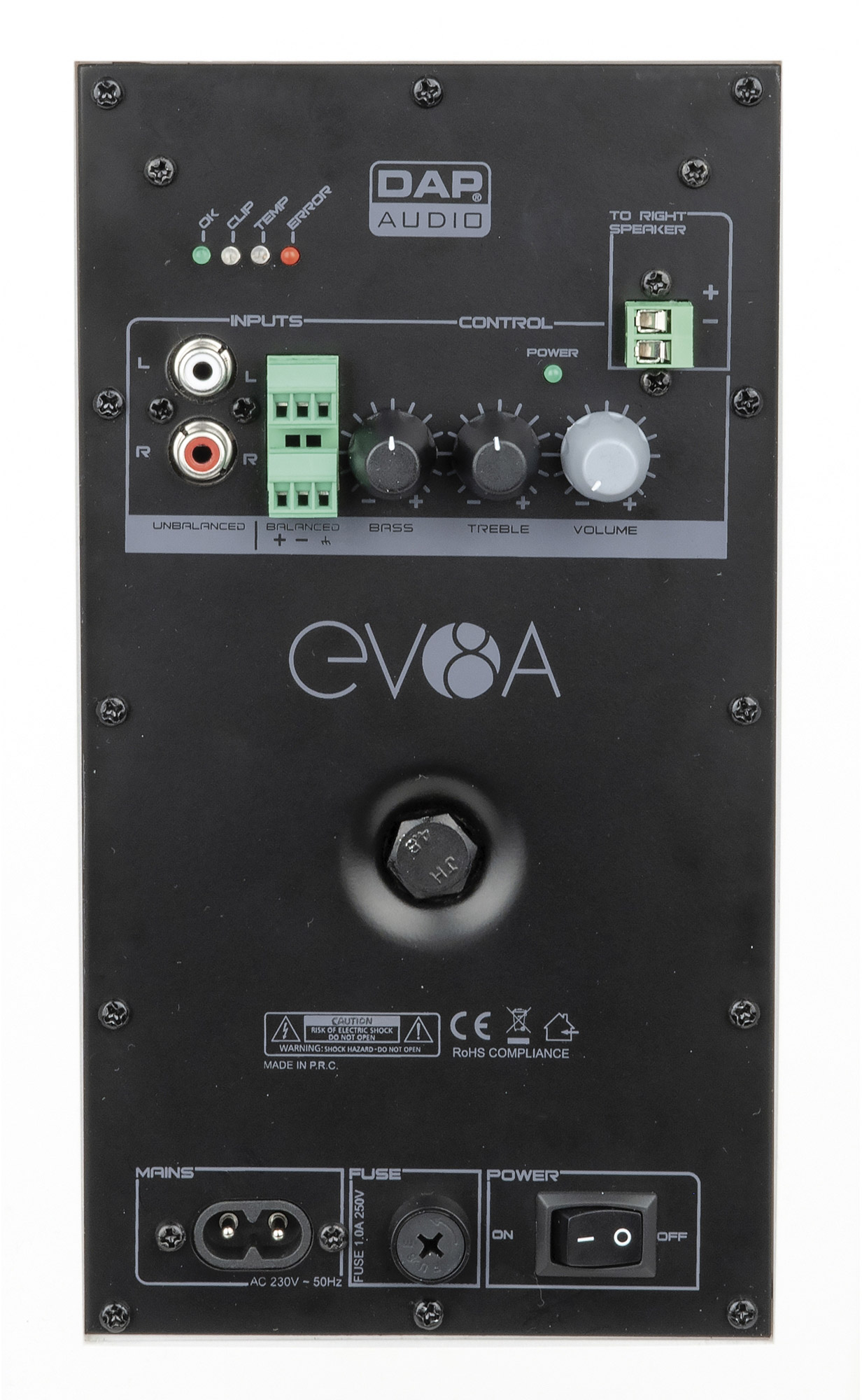

The EVO 8A has a built-in Class D amplifier with volume, bass and treble control. Installation can be done quickly and easily with a terminal and RCA audio input and 8-shaped Euro plug power connector. Besides, a mounting bracket is included for placement in either horizontal or vertical position.Technical data:

Stereo Inputs:	1
Stereo Input Connector:	Phoenix / RCA
Balanced Stereo Input Nominal Level:	0 dBu
Stereo Input Impedance:	10000 Ω
RMS Input Power:	80 W
Peak Input Power:	160 W
Passive Output Connector:	Terminal
THD Level %:	Signal-to-noise Ratio:> 100 dB
Amp Technology:	Class D
Damping Factor:	300:1
Speaker System:	2-way
Speaker Sensitivity (1 W/1 m):	92 dB
Speaker Impedance:	8 Ω
Maximum SPL at 1 m:	114 dB
Frequency Response Minimum:	40 Hz
Frequency Response Maximum:	20000 Hz
Woofer Diameter:	8"
Woofer Voice Coil Diameter:	2"
Woofer Magnet Type:	Ferrite
Compression Driver Diameter:	1"
Compression Driver Voice Coil:	1"
Compression Driver Magnet Type:	Neodymium
Dispersion Angle (Horizontal):	100°
Dispersion Angle (Vertical):	90°
Power Supply:	240 V AC 50/60 Hz
Power Consumption:	198 W
Fuse:	1.5 A
Power Connector In:	IEC C7 Non-polar (2-pole)
Height (mm):	385 mm
Width (mm):	250 mm
Length (mm):	227 mm
Material:	ABS
Colour:	Black
Weight:	13.5 kg
IP Rating:	IP20 (indoor use only)
LED Indicators:	Clip / Power / Protect / Thermal
Speaker Grille Material:	Aluminium
Mounting Options:	Bracket
Mounting Orientations:	Horizontal / Vertical
Included Cables:	IEC cable / Speakercable
Included Rigging:	Bracket
