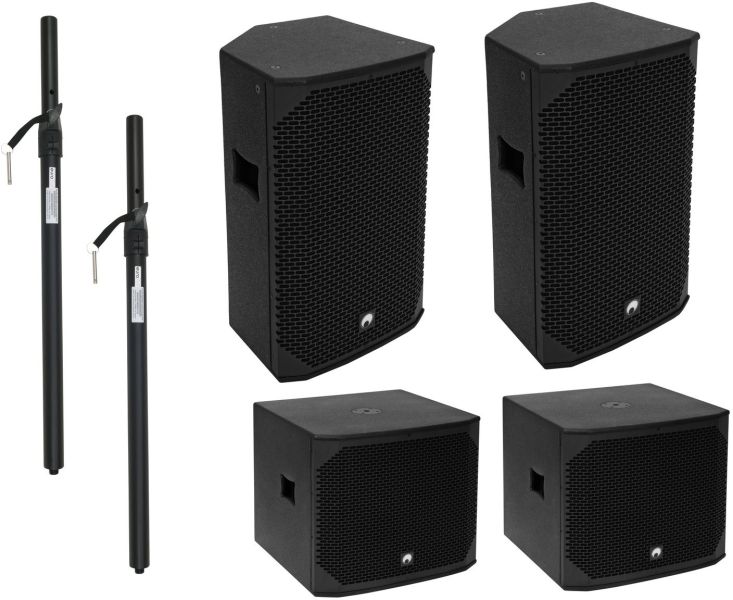

OMNITRONIC PA Set AZX active L

OMNITRONIC PA Set AZX aktiv L
€1,999.00 *
incl. tax, plus forwarding agency costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days

Bulky goods

Item number: 200020445
2x AZX-118A PA Subwoofer active 400W, 2x AZX-215A 2-Way Top active 350 W including 2x distance... more
All information about the product:
"OMNITRONIC PA Set AZX active L"

2x AZX-118A PA Subwoofer active 400W, 2x AZX-215A 2-Way Top active 350 W including 2x distance tube

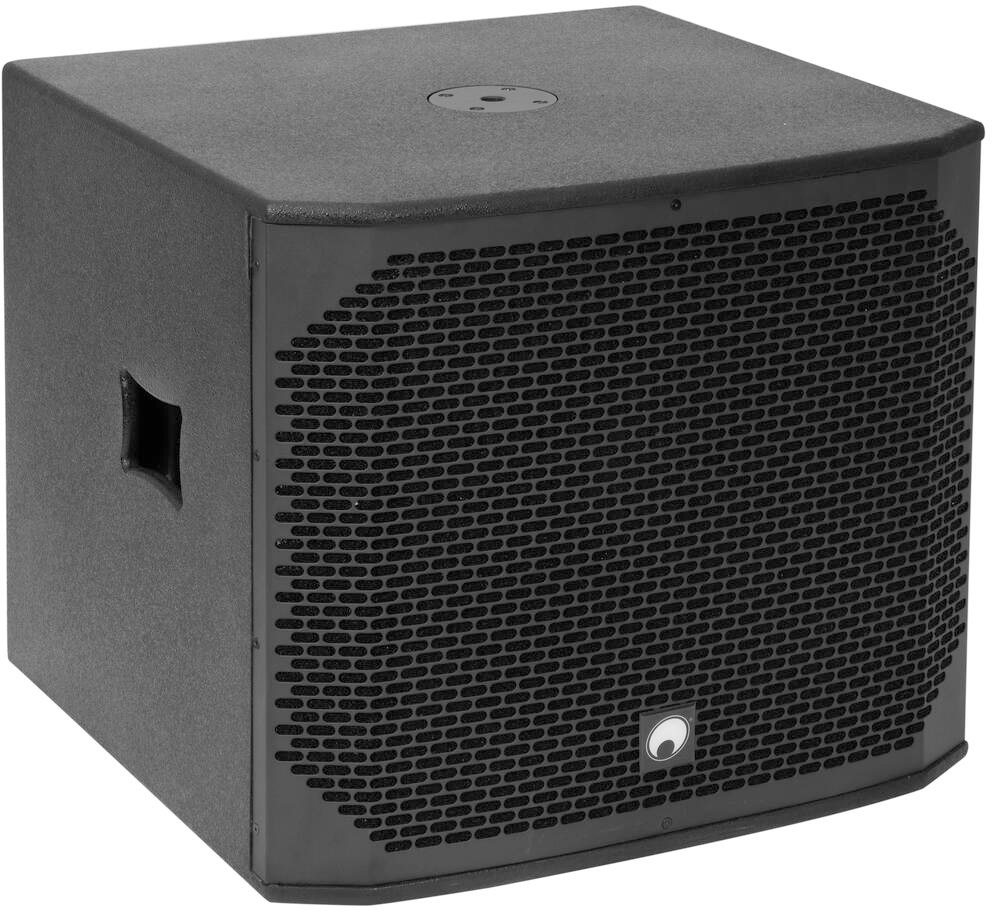

OMNITRONIC AZX-118A PA Subwoofer active 400W

Active 18" PA bassreflex subwoofer, 400 W

  • 46 cm (18") bass speaker with 76 mm voice coil
  • Class D amplifier with 400 W
  • XLR inputs and parallel outputs L/R
  • XLR output L/R with high-pass filter
  • Adjustable crossover frequency 80-200 Hz
  • Rugged carrying handle
  • Black metal grille with acoustic foam

Package contents

  • 1 x bass, 1 x user manual, 1 x power cord

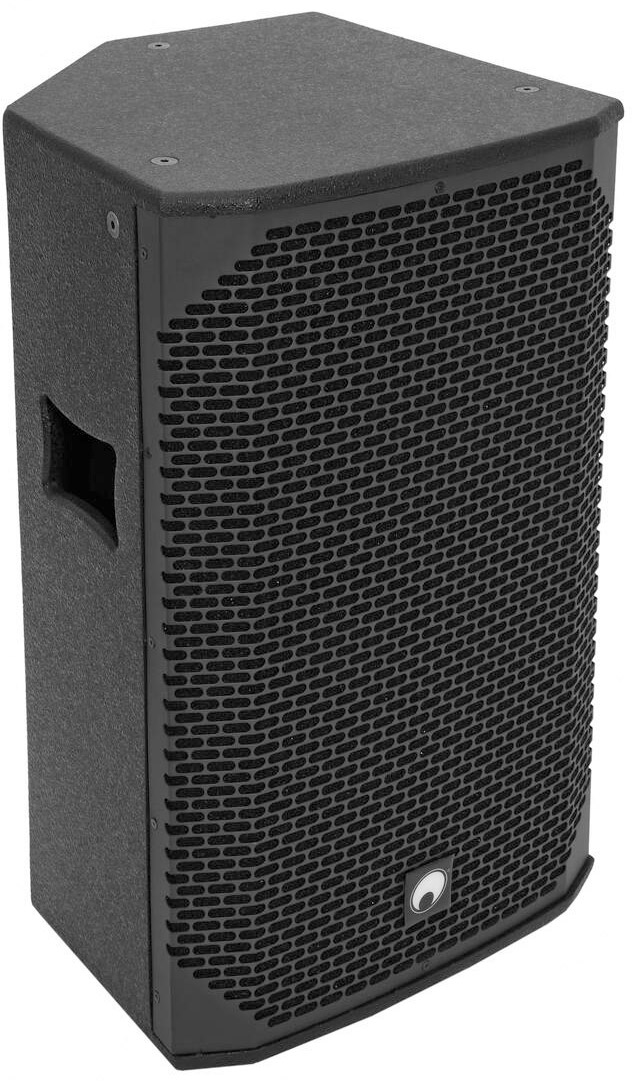

OMNITRONIC AZX-215A 2-way top active 350W

Active speaker with 15" woofer, 1.75" titanium driver, LF 300 W RMS, HF 50 W RMS

  • 2-way bass-reflex enclosure with 38 cm woofer and 4.5 cm titanium driver
  • Master control with 2-band EQ
  • HF adjustment -4 dB, -2 dB, 0 dB
  • Black metal grille with acoustic foam
  • Rugged carrying handle
  • With rigging points
  • Application possibility: Standing; suspended; monitoring; on tripod
  • Dual flange

Package contents

  • 1 x compact cabinet speaker, 1 x user manual, 1 x power cord

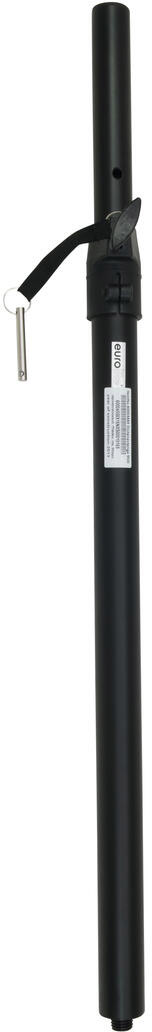

OMNITRONIC Distance Tube Subwoofer/Satellite M20

Variable distance tube

  • Connecting tube for satellite systems
  • Locking screw and bolt
  • Powder-coated steel version
  • Adjustable height
  • M20 thread

Package contents

  • 1 x distance tube, 1 x user manual
Weight:118,10 kg
OMNITRONIC AZX-118A PA Subwoofer active 400W
Power supply:230 V AC, 50 Hz
Power consumption:650 W
Protection class:Protection class I
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power:Rated: 400W RMS
Frequency range:40 - 250 Hz
Sensitivity:95 dB (1W/1m)
Attachment system:Flange: M20 thread
Circuitry:Class D
Control elements:Phase reversal switch
Controls:Limiter
Status LED:Limit, power, signal
Connections:Input: line via 2 x 3-pin XLR
Output: line via 2 x 3-pin XLR
Output: high-pass via 2 x 3-pin XLR
Crossover frequency:80-200 Hz
Speaker:1 x woofer (18") approx. 45 cm
Basket material: Steel
Voice coil lows (2.5") approx. 6.35 cm
Type of speaker:Subwoofer
Type of construction:Vented
Carrying handle:1 pc/pcs
Material:MDF (Medium-density fibreboard), 15 mm
Color:Black, textured coating, painted
Dimensions:Width: 61,3 cm
Depth: 61,3 cm
Height: 54 cm
Weight:32,70 kg
OMNITRONIC AZX-215A 2-way top active 350W
Power supply:230 V AC, 50 Hz
Power consumption:650 W
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power:Rated: 300W RMS LF
Rated: 50W RMS HF
Frequency range:50 - 20000 Hz
Sensitivity:95 dB (1W/1m)
Attachment system:Dual flange: Ø 35mm (0°/5°)
Flying points:7 x M10 thread
Circuitry:Class D Biamp
Controls:Limiter
Status LED:Limit, power, signal
Connections:Input: 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 1 x 3-pin XLR
Input channels:1 x mono with Mic-line switch via Combination socket (XLR/jack), channel control via Rotary dial
Equalizer:Master: 1 x 2-band tone control
Speaker:Woofer (15") approx. 38 cm with ferrit magnet
Voice coil lows (3") approx. 8 cm
Voice coil compression tweeter highs (1.75") approx. 4.5 cm
Type of speaker:Compact cabinet speaker
Carrying handle:1 pc/pcs
Material:MDF (Medium-density fibreboard), 15 mm
Color:Black, textured coating, painted
Dimensions:Width: 48,5 cm
Depth: 48 cm
Height: 75 cm
Weight:25,45 kg
OMNITRONIC Distance Tube Subwoofer/Satellite M20
Maximum carrying capacity:30 kg
Tube diameter sector:41 - 35 mm
Height:Maximum: 130 cm
Minimum: 75 cm
Attachment system:Ø 35mm
Type (general stands):Distance tube
Color:Black
Thread:M20 thread
Weight:900 g
