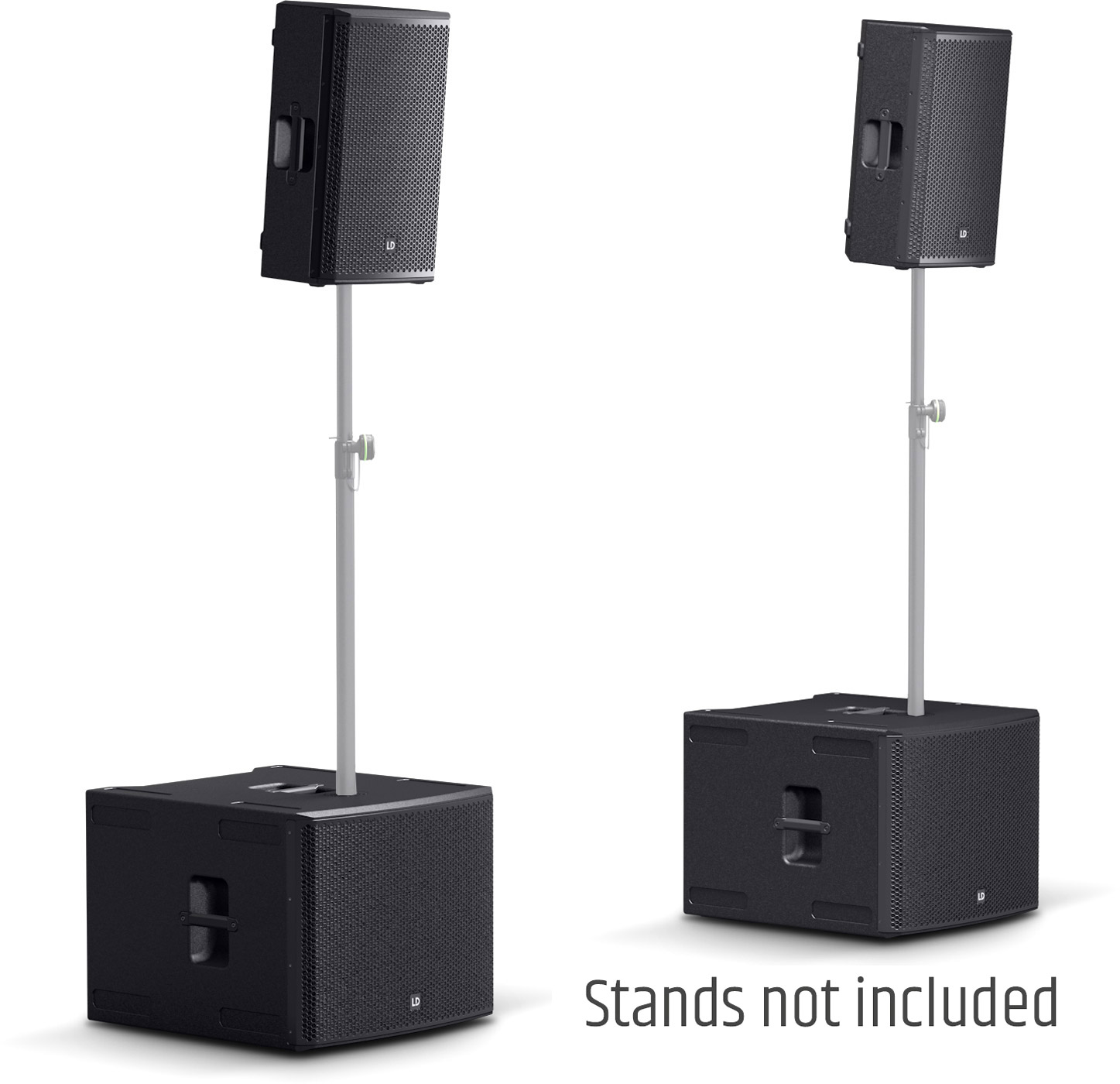

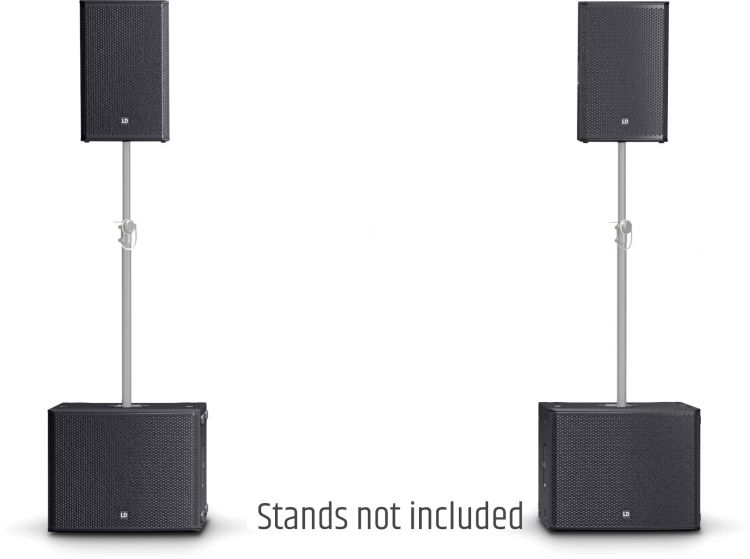

LD Systems STINGER G3 POWER SET A - 2 x 12" powered PA Speaker + 2 x 18" powered Subwoofer

Preview: LD Systems STINGER G3 POWER SET A - 2 x 12" Aktiv-PA-Lautsprecher + 2 x 18" Aktiv-Subwoofer

LD Systems STINGER G3 POWER SET A - 2 x 12" Aktiv-PA-Lautsprecher + 2 x 18" Aktiv-Subwoofer

€4,790.00 *

incl. tax, plus forwarding agency costs

Bulky goods

Availability:

Currently not available

Bulky goods

Item number: 210905160

EAN: 4049521304057

MPN: LDEBSETPOWERA

2 x 12" powered PA Speaker + 2 x 18" powered Subwoofer For audiences up to 350* pax For... more

Back to the overview

All information about the product:

"LD Systems STINGER G3 POWER SET A - 2 x 12" powered PA Speaker + 2 x 18" powered Subwoofer"

2 x 12" powered PA Speaker + 2 x 18" powered Subwoofer

For audiences up to 350* pax
For bands, live clubs, large private use, corporate events and AV presentations
Compact and easy to transport
Extensive and smart accessories for installation and transport
All-rounder for full-range, satellite and monitor applications
Practical presets for quick frequency response contouring
Highly efficient digital amplifier without fan
36 mm Dual-Tilt pole mount for 0° and 5° tilt angle
Birch plywood housing with ultra-robust Polyurea coating
Cardioid subwoofer array presets
Set includes protective covers and castor boards

Excellent for live clubs and touring bands, this set is a superb choice wherever highly dynamic music reinforcement with plenty of power and punch is of prime importance. We recommend this set for the following type of application: bands, live clubs, corporate events, AV presentations. The STINGER G3 POWER SET A is suitable for audiences of up to 350* pax. For optional stands and cables check out the "related products" section.

Set consisting of:

2 x STINGER 12 A G3 – 12” Powered loudspeaker

2 x STINGER SUB 18 A G3 – 18” Powered subwoofer

2 x STINGER 12 G3 PC – Padded protective cover for loudspeaker

2 x STINGER SUB 18 G3 PC – Padded protective cover for subwoofer

2 x STINGER SUB 18 G3 CB – Castor board for subwoofer

*NOTE: Audience size specifications are approximate only. The actual numbers may vary depending on room acoustics and environment.

Technical data:

Product type:	PA system
Product type:	PA Complete Systems Accessories
Product type:	PA Loudspeakers Accessories
Product type:	PA Subwoofer Accessories
Type:	Covers
Color:	Black
Product type:	PA loudspeaker
Product type:	PA subwoofer
Type:	Covers
Type:	Powered
Type:	castor boards
System output (RMS):	2.600 W
Frequency response:	35 - 20,000 Hz
Material:	Nylon 1680D
Material:	Birch multiplex
Material:	Nylon 1680D
Type:	active
Type:	active
Color:	Black
Dispersion (H x V):	90 x 50°
Low/mid driver dimensions:	12 "
Low/mid driver dimensions:	18 "
Material thickness:	15 mm
Thickness of the padding:	8 mm
Surface:	Polyurea
Thickness of the padding:	8 mm
Weight:	143,74 kg
Woofer size:	304.8 mm
Woofer size:	457.2 mm
Color:	Black
Height:	600 mm
Width:	567 mm
Height:	470 mm
Number of casters:	4
Width:	420 mm
Woofer magnet:	Ferrite
Woofer magnet:	Ferrite
Depth:	625 mm
Depth:	400 mm
Wheel diameter:	100 mm
Woofer brand:	Custom-made
Woofer brand:	Custom-made
Manufacturer of castors:	Adam Hall
Weight:	0,67 kg
Weight:	1,5 kg
Woofer voice coil:	2.5 "
Woofer voice coil:	4 "
Number of drag castors:	2
Woofer voice coil (mm):	101.6 mm
Woofer voice coil (mm):	63.5 mm
Amplifier:	Class D
Horn:	BEM optimized CD Horn
Width:	540 mm
HF driver dimensions:	1 "
Length:	650 mm
System Power (RMS):	800 W
HF driver size:	25.4 mm
Peak power:	1600 W
Frequency response:	35 - Low-Pass Hz
HF driver magnet:	Ferrite
HF driver brand:	BMS
Weight:	7 kg
HF driver voice coil:	1 "
HF driver voice coil:	25.4 mm
Max. SPL (peak):	135 dB
Amplifier:	Class D
Protection circuits:	DC
Protection circuits:	limiter
Protection circuits:	over voltage
Protection circuits:	short circuit
Dispersion (H x V):	90 x 50 °
Input impedance:	30000 Ohm(s)
Input sensitivity:	0.3 V
System Power (RMS):	500 W
Controls:	Main level
Controls:	Mode
Peak power:	1000 W
Frequency response:	58 - 20000 Hz
Indicators:	Limit
Indicators:	Mode
Indicators:	On
Indicators:	Protect (protection circuit engaged)
Indicators:	Signal
Line inputs:	2
Line input connectors:	6.3 mm jack
Line input connectors:	XLR
Line outputs:	2
Line output connectors:	XLR
Max. SPL (peak):	131 dB
Operating voltage:	100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
Operating voltage:	SMPS
Protection circuits:	Multiband limiter
Protection circuits:	over voltage
Protection circuits:	over-current
Protection circuits:	thermal overload
Power consumption (max.):	600 W
Operating Temperature:	0 - 40 °C
Relative Humidity:
Cabinet material:	18 mm Plywood
Cabinet surface:	Polyurea
Input sensitivity:	-5 dBu
Cabinet construction:	Bass Reflex
Controls:	2 x gain
Controls:	2 x Mic/Line
Controls:	Mode
Width:	677 mm
Height:	547 mm
Depth:	740 mm
Weight:	42,6 kg
Indicators:	Limit
Indicators:	Mic
Indicators:	Mode
Indicators:	On
Indicators:	Protect (protection circuit engaged)
Indicators:	Signal
Line inputs:	2
Line input connectors:	6.3 mm jack
Line input connectors:	XLR
Line outputs:	1
Line output connectors:	XLR
Operating voltage:	100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
Operating Temperature:	0 - 40 °C
Relative Humidity:
Cabinet material:	15 mm Plywood
Cabinet surface:	Polyurea
Cabinet construction:	Bass Reflex
Monitor angle:	54 °
Width:	390 mm
Height:	627 mm
Depth:	377 mm
Weight:	20,1 kg
