Preview: LD Systems Roadman 102 HS B 6 Mobiler PA Lautsprecher mit Headset

LD Systems Roadman 102 HS B 6 Mobiler PA Lautsprecher mit Headset

€850.01 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Near-term available
Delivery time: approx. 1 week

Delivery time: approx. 1 week

Item number: 210902875

EAN: 4049521204630

MPN: LDRM102HSB6

Portable PA Loudspeaker with Headset The LD Systems Roadman 102 HS B6 is a mobile and compact... more

Back to the overview

All information about the product:

"LD Systems Roadman 102 HS B6 - Portable PA Loudspeaker with Headset"

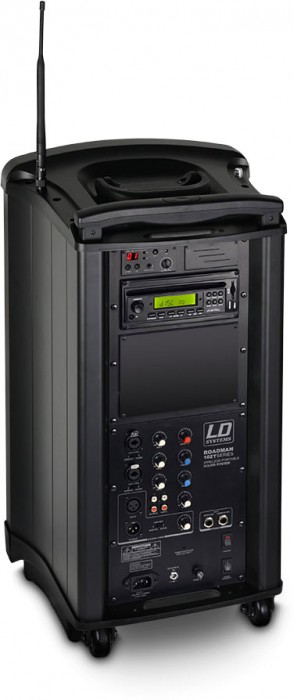

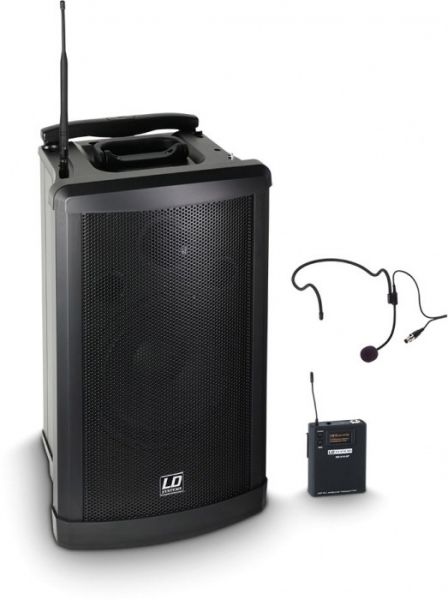

Portable PA Loudspeaker with HeadsetThe LD Systems Roadman 102 HS B6 is a mobile and compact sound system

The Roadman 102 HS B5 is a compact and mobile PA solution with integrated battery. This system is perfectly suitable for solo entertainers, churches, schools, business conferences or presentations where versatility is required. The Roadman comes with a CD/MP3/USB/SD Player as well as a wireless microphone unit and headset. A second wireless microphone unit can also be integrated as an option.

Technical data:

Product type:	Battery-powered PA speaker
Version:	Set with Handheld Transmitter
Low/mid driver dimensions:	10 "
Woofer size:	254 mm
Woofer magnet:	Ferrite
Woofer brand:	Custom-made
HF driver dimensions:	1 "
HF driver size:	25.4 mm
HF driver magnet:	Ferrite
HF driver brand:	Custom-made
Amplifier:	Class D
RMS:	80 W
Peak power:	320 W
Frequency response:	70 - 16000 Hz
SPL (1W/1m):	95 dB
Max. SPL:	115 dB
Protection circuits:	short circuit
Controls:	Audio-link set (master / slave)
Controls:	Audio-link slave volume
Controls:	Bass
Controls:	Line Gain
Controls:	Master
Controls:	Power
Controls:	Speech / music switch (Mic / Line 1)
Controls:	Speech / music switch (Mic / Line 2)
Controls:	Treble
Controls:	Value Down
Controls:	Voice priority on / off
Controls:	Volume Mic 1
Controls:	Volume Mic 2
Indicators:	Charge/battery status
Indicators:	Power

Media player

Supported media:	Audio-CD
Supported media:	CD-R
Supported media:	CD-R/W
Supported media:	SD Card
Supported media:	USB stick
Supported formats:	Audio-CD
Supported formats:	MP3 file
Supported formats:	MP3-CD
Supported formats:	WMA file
Supported formats:	WMA-CD
Media player controls:	CD ejector
Media player controls:	Folder -
Media player controls:	Folder +
Media player controls:	Mode (CD / SD / USB)
Media player controls:	mute
Media player controls:	Next Track
Media player controls:	Play / Pause
Media player controls:	Power / Volume
Media player controls:	Previous Track
Media player controls:	Program
Media player controls:	Repeat
Media player controls:	Shuffle
Media player controls:	Stop
Media player display elements:	Lighted multifunctional LC display
Line inputs:	3
Line input connectors:	2 x RCA
Line input connectors:	Audio-link input XLR, female
Mic inputs:	2
Mic inputs:	6.3 mm jack
Mic inputs:	XLR
Line outputs:	2 x sat output 100 Hz
Line output connectors:	2 x RCA
Line output connectors:	Audio-link output XLR, male
Loudspeaker outputs:	Speaker Out Switched
Loudspeaker outputs:	Speaker Out Unswitched
Speaker output connections:	6.3 mm jack

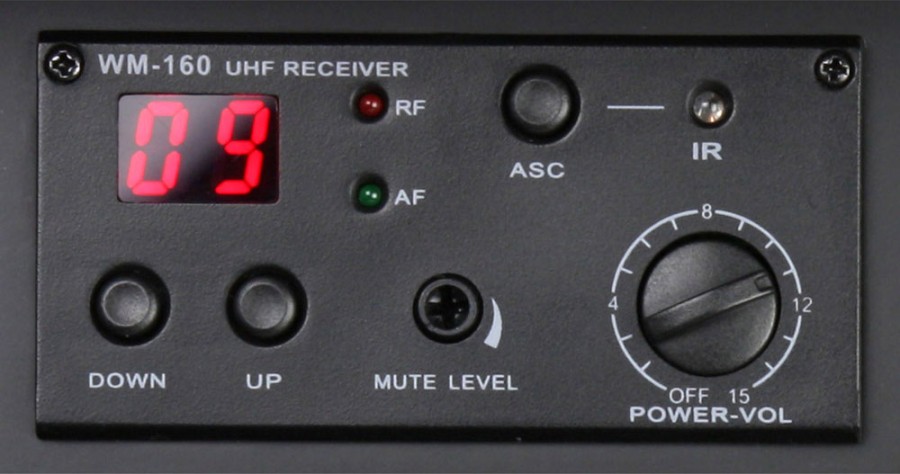

Transmission frequency range:	655 - 679 MHz
Operating voltage:	transformer
Operating voltage:	200 V AC - 250 V AC
Operating voltage:	24 V DC - 32 V DC (5A)
Rechargeable batteries:	2 x 12 V / 4.5 AH
Cabinet material:	Aluminium
Cabinet material:	Plastic
Cabinet construction:	Bass Reflex
Width:	355 mm
Height:	610 mm
Depth:	315 mm
Weight:	19 kg
Other features:	additional radio receiver (LDRM102R) available optionally
Other features:	Audio-link function
Other features:	Stand mount 36 mm
Other features:	Transport bag available optionally
Other features:	Transport casters
Other features:	transport handle
Other features:	Trolley handle
