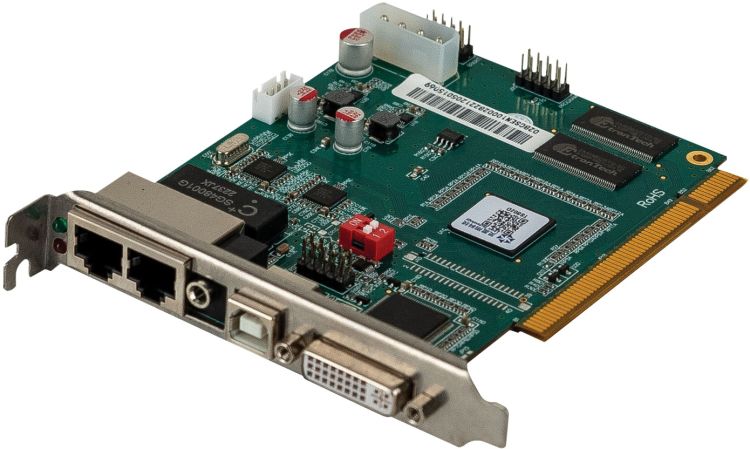

LINSN TS-802 LED Sender Card PCI LED panel control card

The LINSN TS-802 is a PCI LED sending card for controlling LED displays of up to 1.310.720 pixels. It supports video input resolutions of up to 2048x1152 and output resolutions of up to 2048x640 through its two RJ45 output ports. It can be daisy chained to up to 4 cards in total for higher output resolutions (up to 4096x1152). The screen resolution can be set up without constrictions to accommodate non-conventional display setups.
The TS-802 supports refresh frequencies between 10 and 3,000 Hz and 10-bit colour, resulting in vivid images with more than 1 billion colours. It also supports the transmission of audio data over the RJ45 cable. The configuration is easily taken care of via USB by means of software (LEDStudio V9.0 or higher). DVI-DVI and USB-A to USB-B cables are included.Technical data:

Type of input connector:	Single Link DVI
Stereo Inputs:	1
Stereo Input Connector:	TRS balanced 3.5 mm
Single Link DVI:	1
Main Outputs:	2
Ethernet Speed (LED Screen):	1 Gbit/s
Optical Slot:	No
Control Software:	Led Studio/Ledset
Scaling Function:	No
Control System:	Linsn
Maximum Loading Capacity:	1300000 Mpx
Maximum Input Resolution:	1920 x 1200
Power Supply:	5 V DC
Power Consumption:	3 W
Power Connector In:	Molex
Data Connector In:	USB B
Data Connector Out:	RJ45
Length (Without Handles):	127 mm
Width (Without Handles):	100 mm
Height (Without Handles):	10 mm
Weight:	0.2 kg
IP Rating:	IP20 (indoor use only)
Cooling:	Passive
Maximum Ambient Temperature:	75 °C
Minimum Ambient Temperature:	-20 °C
Operating Humidity:	0-95 %rH
Included Cables:	DVI-DVI cable / USB-A - USB-B cable
