Look Viper deLuxe 2.6 fog machine 3050 watts

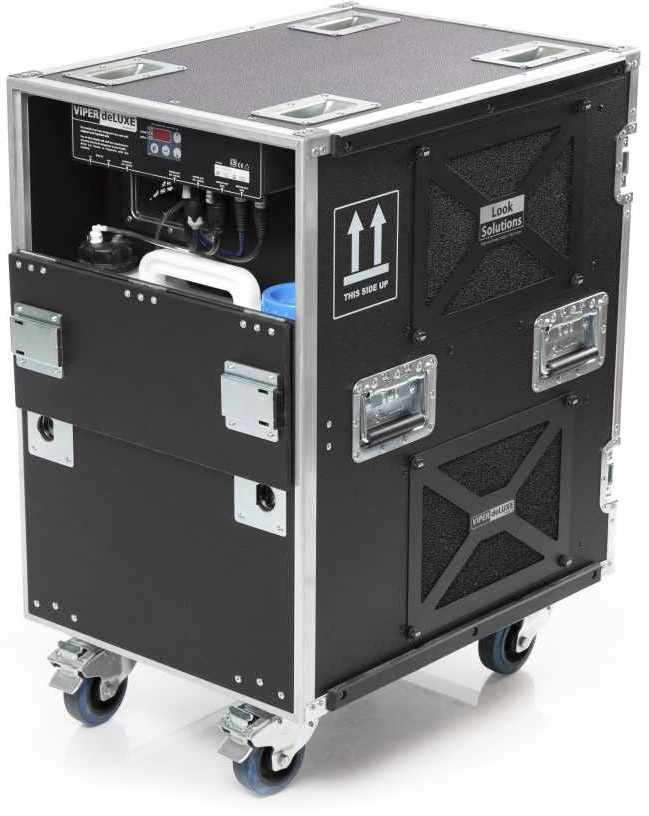

Look Viper deLuxe - Powerful fog machine in a flight case

The Viper deLuxe is a specially developed fog machine that is integrated in a robust flight case and has been optimized for touring applications. It offers the perfect combination of power, flexibility and durability to produce large amounts of fog in the shortest possible time. With precise control and integrated protection against external influences, the Viper deLuxe is an ideal solution for professional events, concerts, special effects or practice applications.

Highlights

• Robust flight case: Protects against dirt, dust and confetti, ideal for mobile use.
• Integrated fan: Increases the range of the mist up to 25 m.
• Large quantities of fog: Ideal for larger clubs, halls and events.
• Precise control: fog quantity adjustable in 1% increments, DMX-512 control as standard.
• Easy to maintain: Easily accessible filters and quickly replaceable tanks.
• Safe and efficient: microprocessor-controlled temperature regulation and overheating protection.
• Ergonomic: With automatic rollers and stacking recesses for easy transportation.

Technical data

• Operating principle: Vaporizer fogger
• Heating capacity:
• Viper NT: 1300 W
• Viper 2.6: 2600 W
• Supply voltage: 230V / 50Hz
• Heating time:
• Viper NT: approx. 7 minutes
• Viper 2.6: approx. 12 minutes
• Fluid consumption:
• Viper NT: 120 ml/min at max. output, 35 ml/min with continuous mist
• Viper 2.6: 240 ml/min at max. output, 70 ml/min with continuous mist
• Fluid tank capacity: 20 liters
• Fog output: Adjustable in 99 levels
• Ejection distance: approx. 25 m
• Fog time:
• approx. 40 sec. at max. output
• Continuous fog with <50% output
• Connections: DMX 512, standalone
• Dimensions (L x W x H): 77 x 49.5 x 83.5 cm
• Weight:
• Empty: approx. 65-67 kg (depending on configuration)
• Filled: approx. 87-89 kg
• Fan data:
• Functional principle: Radial blower
• Voltage: 230V / 50/60Hz
• Volume flow: 1605 m³/h
• Power: 450 W
• Power consumption: 2.8 A

Included in the scope of delivery

• Viper deLuxe fog machine in flight case
• 20-liter flat tank
• Integrated radial fan
• Truecon connection cable
• Operating instructions
