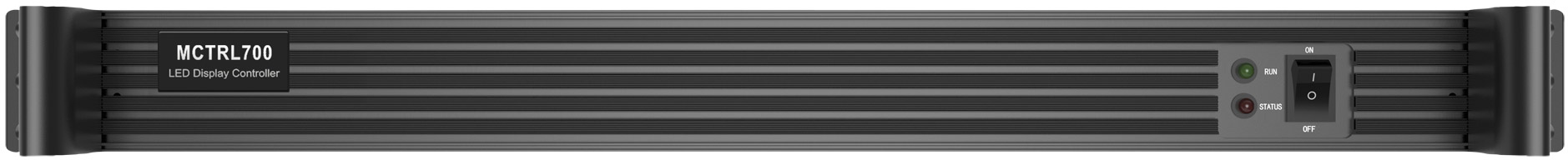

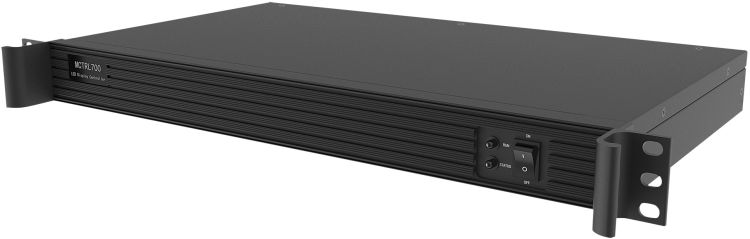

NOVASTAR MCTRL-700 Sender Box

The Novastar MCTRL-700 is a 6-output sender box for easily setting up your LED screen, suitable for fixed and mobile installations. Its HDMI and DVI input ensure an easy and reliable connection for playing your content on your LED screen without big hassles. Configured settings can be saved for plug-and-play use. One Novastar MCTRL-700 can handle up to 2.3 million pixels with a maximum resolution of 1920 x 1200. Multiple units can be cascaded to form one uniform control in case you need to control more pixels.Technical data:

Type of input connector:	Stereo Input Connector / HDMI 1.3 / Single Link DVI
Stereo Inputs:	1
Stereo Input Connector:	TRS balanced 3.5 mm
HDMI 1.3:	1
Single Link DVI:	1
Type of output connector:	HDMI 1.3 (Loop) / Single Link DVI (Loop)
Main Outputs:	6
HDMI 1.3 (Loop):	1
Single Link DVI (Loop):	1
Optical Slot:	No
Control Software:	Novastar LCT / Smart LCT
Scaling Function:	No
GenLock:	No
Maximum Loading Capacity:	2.3 Mpx
Maximum Input Resolution:	1920 x 1200
Control Options:	USB
Power Supply:	100-240 V AC 50/60 Hz
Power Consumption:	12 W
Power Connector In:	IEC
Data Connector Out:	RJ45
Width (Including Handles):	482 mm
Width (Without Handles):	428 mm
Height (Including Handles):	44.4 mm
Height (Without Handles):	44.4 mm
Depth (Including Handles):	269 mm
Depth (Without Handles):	239 mm
Weight:	2.6 kg
Rack Units:	1 U
IP Rating:	IP20 (indoor use only)
Colour:	Black
Maximum Ambient Temperature:	60 °C
Minimum Ambient Temperature:	-20 °C
Operating Humidity:	10-90 %rH
Included Cables:	IEC cable
