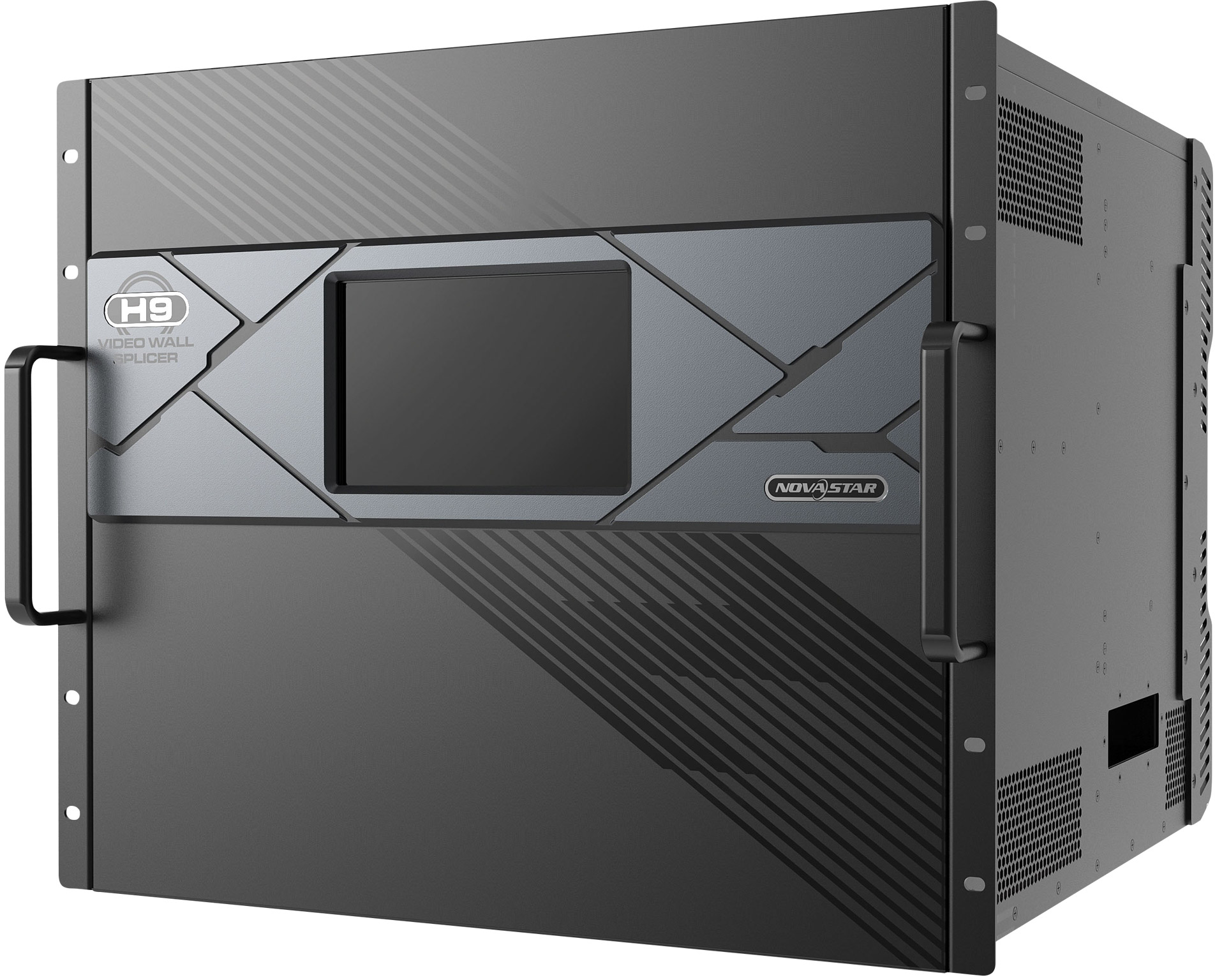

NOVASTAR H-Series H9 Main Frame Video Wall Splicer for 65 Megapixels

The H Series from Novastar is intended to be used in fixed installations with large and fine pitch LED screens. The H9 is an all-in-one solution which combines video splicing features with LED processing in one housing. The modular design works with hot-swappable plug-in modules that allow for a flexible configuration of input and output cards. A variety of connector modules is available providing the industry-standard input connectors, so the system can be optimised for the intended installation.
The H9 is based upon a powerful hardware FPGA system architecture, providing stable and highly efficient operation. It supports 10-bit video sources and processing and 4 K high-definition in- and outputs. Two kinds of LED 4 K sending cards are available, allowing for backup connections as well as ultra-long-distance transmission. The H9 supports multi-screen and multi-layer management, as well as in- and output EDID management and monitoring. With its browser/server control architecture it supports cross-platform, cross-system access and control from within Windows, Mac, iOS, Android, and Linux. Even online collaboration of multiple users is supported.Technical data:

Type of input connector:	RS-232
RS-232:	1
Ethernet speed:	1 Gbit/s
Input Slots:	15
Output Slots:	5
Optical Slot:	No
Control Software:	Novastar LCT
Scaling Function:	Yes
Crop Settings:	Yes
Layers:	80
GenLock:	In & Out
Display:	LCD
Maximum Loading Capacity:	65 Mpx
Control Options:	Ethernet / RS232
Power Supply:	100-240 V AC 50/60 Hz
Power Consumption:	450 W
Power Connector In:	IEC
Data Connector In:	RJ45
Data Connector Out:	RJ45
Width (Including Handles):	483 mm
Width (Without Handles):	440 mm
Height (Including Handles):	400 mm
Depth (Including Handles):	533 mm
Weight:	35 kg
Rack Units:	9 U
IP Rating:	IP20 (indoor use only)
Colour:	Black / Gray
Maximum Ambient Temperature:	45 °C
Minimum Ambient Temperature:	0 °C
Operating Humidity:	0-80 %rH
Included Cables:	CAT-5 Cable / HDMI-HDMI cable / IEC cable
