NOVASTAR KU20 LED display controller

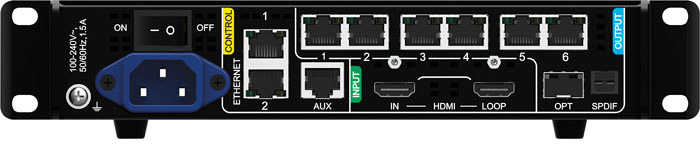

Novastar’s KU20 is an LED display controller with an HDMI 1.3 input and a loop. It has six Ethernet outputs as well as optical and S/PDIF outputs. There are also two network ports and one auxiliary port on board. A control knob and a back button, together with a 2-inch LCD screen, make it easy to control the device. The KU20 can also be controlled by the comprehensive, user-friendly VMP software, which ensures easy operation and control. Cascading control via Ethernet is also possible and both SNMP and Art-Net protocols are supported. Advanced features include image scaling, pixel level brightness and chroma calibration, low latency support and display system monitoring. The KU20 can be mounted in a 19-inch rack and comes complete with a mounting plate.

Note: MX series controllers only support Armor A5s Plus series receiver cards or higher. Older receiver cards like the MRV series are not supported.Technical data:

Type of input connector:	HDMI 1.3
HDMI 1.3:	1
Type of output connector:	HDMI 1.3 (Loop) / S/PDIF (Out)
Main Outputs:	6
HDMI 1.3 (Loop):	1
S/PDIF (Out):	1
Ethernet Speed (LED Screen):	1 Gbit/s
Optical Slot:	Yes
SFP Slot Type:	10G
SFP Slot Quantity:	1
Control Software:	VMP
Scaling Function:	Yes
DMX Control:	Art-Net
Display:	LCD
Display Size:	2"
Maximum Loading Capacity:	3.9 Mpx
Maximum Input Resolution:	1920 x 1200
Control Options:	Ethernet
Power Supply:	100-240 V AC 50/60 Hz
Power Consumption:	25 W
Power Connector In:	IEC
Data Connector In:	RJ45
Data Connector Out:	RJ45
Width (Including Handles):	255 mm
Width (Without Handles):	217 mm
Height (Including Handles):	44 mm
Depth (Including Handles):	290 mm
Depth (Without Handles):	263 mm
Weight:	2.1 kg
Rack Units:	1 U
IP Rating:	IP20 (indoor use only)
Colour:	Black
Maximum Ambient Temperature:	50 °C
Minimum Ambient Temperature:	-20 °C
Operating Humidity:	0-80 %rH
Included Cables:	CAT-5 Cable / HDMI-HDMI cable / IEC cable
Included Accessories:	Connection Plate / Screws
