Naxpro-Truss Truss TV Stand FD 33

Naxpro-Truss Truss TV Stand FD 33

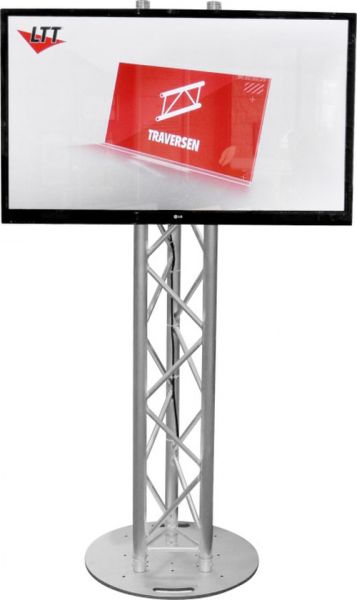

The Naxpro-Truss TV Stand is based on the TÜV-certified FD 33 3 point truss system. The system has a flange width of 290 mm and is connected using tapered connectors for a force-fit connection.

The set includes a 200 cm long FD-33 truss, a round galvanized steel multibase, a TV truss mount for screens ranging from 42 to 100 inches and weighing up to 95 kg, and a 60 cm long safety lanyard rated for up to 22 kg.

Highlights

• For TVs from 42 to 100 inches: The included truss mount is designed for LED and LCD screens ranging from 42 to 100 inches.
• Up to 95 kg: The TV mount is designed for a maximum device weight of 95 kg.
• TÜV-certified truss system: The TV stand is based on the TÜV-certified Naxpro FD 33 3-point system.
• Round steel multibase: The set includes a galvanized steel multibase with a diameter of 650 mm and a height of 15 mm.
• With safety lanyard: A 60 cm long safety lanyard with a 6 mm diameter, rated for up to 22 kg, is included.
• Conical connection: The truss is connected using the included conical connectors, bolts, and split pins.

Technical Specifications

Note: The TV is not included.
