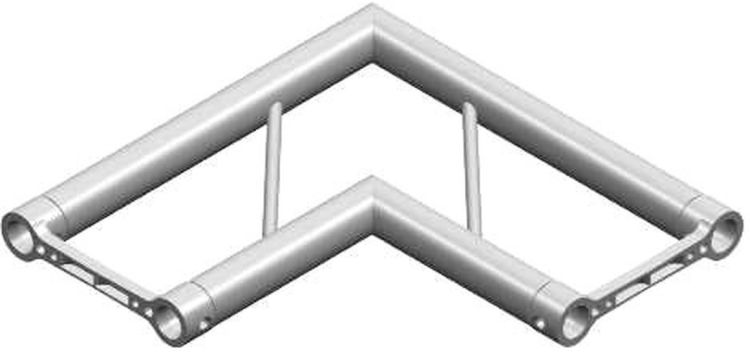

LITEC FX25 2-way 90° corner horizontal

LITEC FX25 2-Weg 90° Ecke horizontal
€199.00 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 360000060
Features: Flat section aluminium truss with 25cm long side. Main Tubes: Extruded tube... more
All information about the product:
"LITEC FX25 2-way 90° corner horizontal"


Features:

  • Flat section aluminium truss with 25cm long side.
  • Main Tubes: Extruded tube Ø 50 x 1,5 mm 6005 T6
  • Crosswise Tube: Extruded tube Ø 14 x 1,5 mm 6060 T6
  • Joint: Cast SG AlSi 12 aluminium plate


Connection systems:

  • FXFC: quick-fit kit
  • FXSM8: bolt connection kit
  • Attention: For each truss you ordered you have to choose and order a connection kit separately.

Description:

The popular end plate system has a new design, produced from a new aluminium alloy that is heat treated to ensure even greater strength and provide a bright polished appearance.

The diagonal chords have been re-configured and their diameter changed to improve the aesthetic appearance and increase the overall strength of the truss.

The new “S” series trusses still employ the same dual connection systems of bolt kits or Fast connection kits as the existing range, to ensure full compability between the lines.

The two systems maybe used as alternatives to each other, but if the structures are to be used near their limits, we recommend using the quick-fit-system. The bolt connection has lower loading capacity than shown in our reference tables.

The possibility to choose between two different connection systems is more important than it may seem. The quick-fit system is certainly the most widespread and mainly used when the structure is frequently assembled and dismantled. In the case of permanent installations, on the other hand, a more economical bolt connection system may be used. Our plate is made in such a way that the bolts may be completely inserted so that there are no edges or external protuberances which could damage canvases or other fabrics. Futhermore, the posibility of using readily available bolts may be an advantage if there is a temporary lack of quick-fits kits due to oversight or loss.
