MONACOR EDL-70/WS PA ceiling speaker -B-Stock-
This article is currently not available.
€20.00 *
€29.00 *
(31.03% Saved)
incl. tax,
plus shipping costs
Availability:
Currently not available
Currently not available
Item number: 250132805D
EAN: 4007754244472
MPN: 0163310
Note: The items in the category sales are remnants or items from customer returns. These items... more
All information about the product:
"MONACOR EDL-70/WS PA ceiling speaker -B-Stock-"
Note: The items in the category sales are remnants or items from customer returns.
These items are only available in limited quantities, fully functional but partly without original packaging.
If you have any questions about the product pictured here, please contact us before making your purchase to avoid possible discrepancies. We will be happy to inform you.
Comments on the article:
- Item with signs of wear

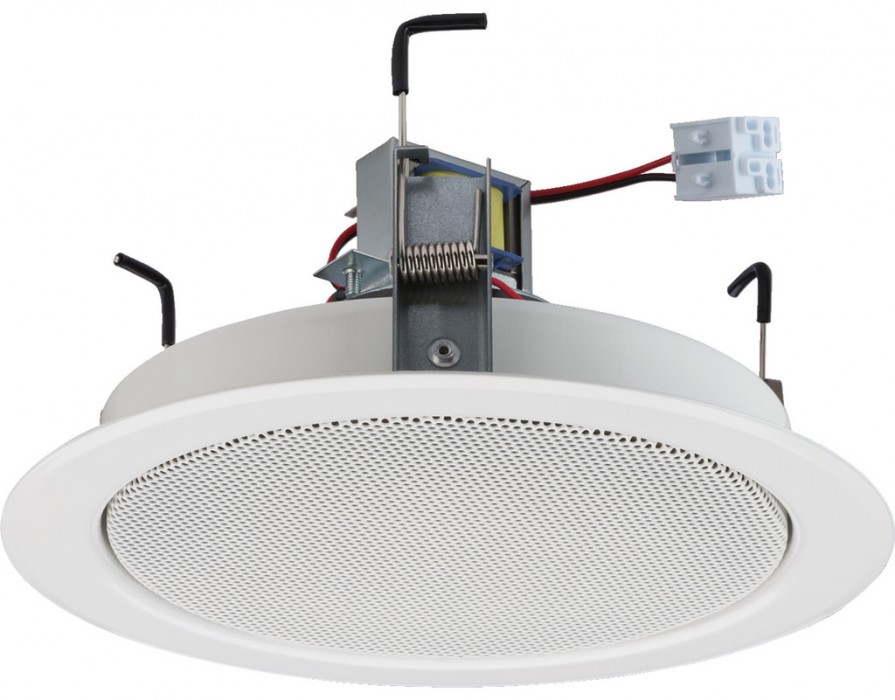

PA ceiling speaker,
with special 2-step mounting.
- 100 V line technique
- Snap-in mounting
- For a ceiling thickness from 2 to 45 mm
- Full range speaker with a clear voice reproduction
- Wide frequency range
- Robust metal version (basket and protective grille)

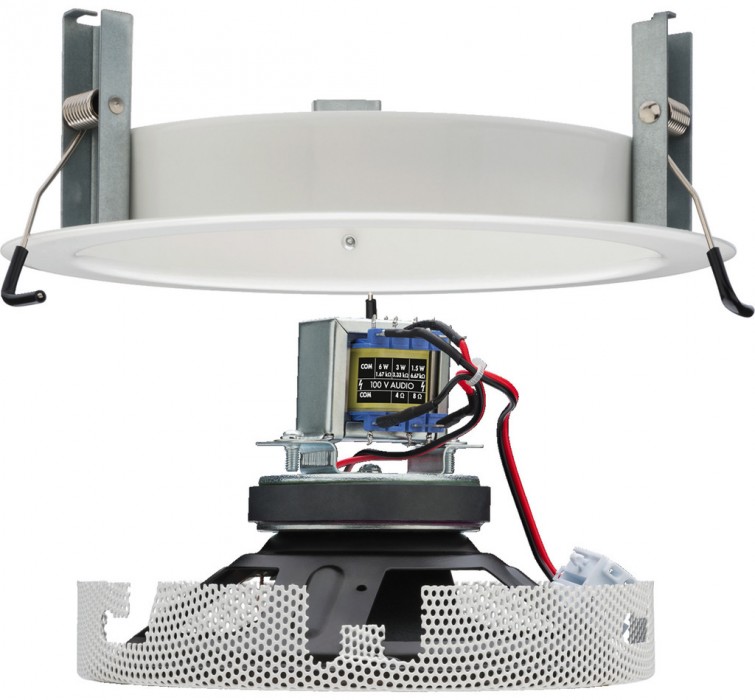

For mounting this PA ceiling speaker, the mounting frame is attached to the ceiling cutout at first via the snap-in system. Then, the speaker is inserted into the frame with a bayonet-type locking. A safety rope provides additional safety.
| Transmission method: | 100 V |
| Frequency range: | 90-20,000 Hz |
| Power rating (RMS): | 6/3/1.5 W |
| Sensitivity: | 97 dB/W/m |

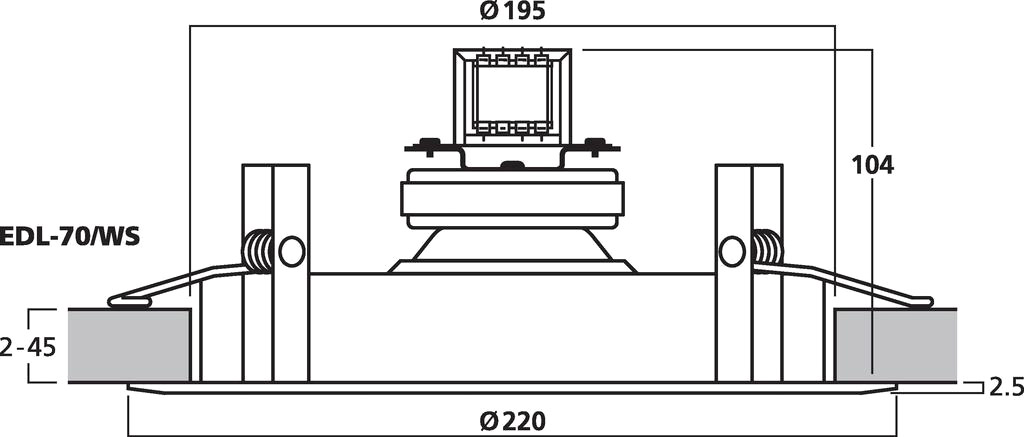

| Mounting cutout: | Ø 195 mm |
| Mounting depth: | 100 mm |
| Dimensions: | Ø 220 mm x 104 mm |
| Outside diameter: | Ø 220 mm |
| Width: | Ø 220 mm |
| Depth: | 104 mm |
| Colour: | white, RAL9010 |
| Admiss. ambient temp.: | 0-40 °C |
| Weight: | 1 kg |
| Type of speaker: | 165 |
| Packing dimensions (W x H x L): | 0.22 x 0.11 x 0.23 m |
| Gross weight: | 1.127 kg |
| Net weight: | 1.017 kg |
