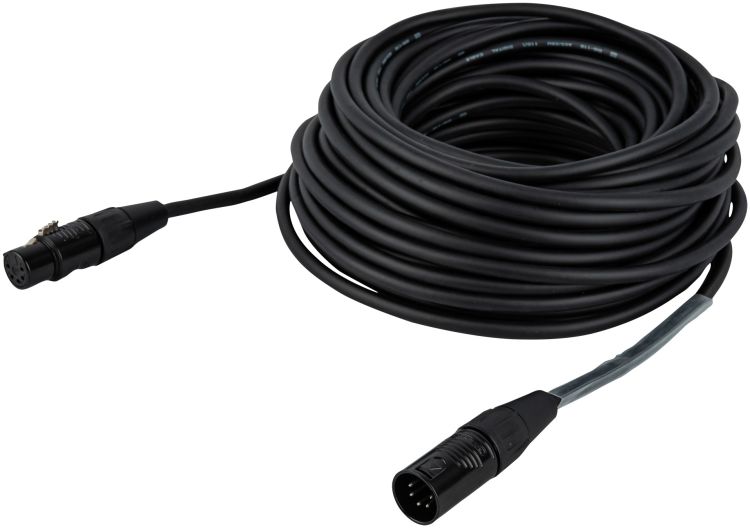

DAP-Audio FLR08 - DMX/AES-EBU XLR/M 5P to XLR/F 5P 15 m - Silver plated

The DAP FLR08 DMX/AES-EBU cable offers professional grade signal transmission, constructed with DAP DIG-110 digital cable and Rean RC5 connectors. The DIG-110 uses a braided shield for interference-free signal transmission. The RC5 connectors have silver-plated contacts to ensure low-impedance, high-quality connections for your signals. The sleek, black-plated zinc housing provides robust protection while maintaining a professional look. Each cable includes a transparent heat-shrink label sleeve for easy identification and a convenient hook-and-loop fastener to keep setups tidy.Technical data:

Connector 1:	XLR 5P Male
Connector 2:	XLR 5P Female
Brand Connector 1:	REAN
Impedance:	110 Ω
Cable Length:	15 m
Pins:	5
Conductor Resistance:	110 Ω/km
Conductor Capacitance:	35 pF/m
Capacity Inner Conduct. Shield/Inner Conduct.:	52 pF/m
Wire Connection:	3 mm²
Outer Cable Diameter:	7 mm
Outer Isolation Type:	PE
Weight:	1.27 kg
IP Rating:	IP20 (indoor use only)
Material:	Copper / PVC
Colour:	Black
Contact Type:	Silver plated
1st Shield:	Aluminium foil
2nd Shield:	Braided Tinner Copper
Shield Resistance:	12.5 Ω/km
Filler Material:	Paper
Conductors:	2
Conductor Construction:	Stranded Core
Maximum Ambient Temperature:	60 °C
Minimum Ambient Temperature:	-20 °C
