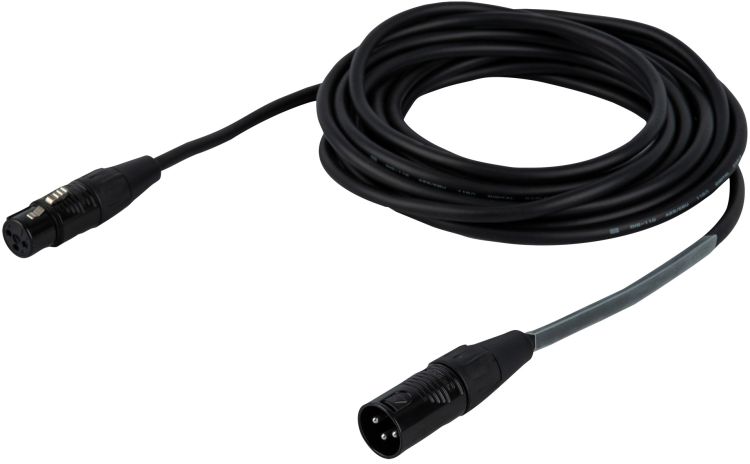

DAP-Audio FLR09 - DMX/AES-EBU XLR/M 3P to XLR/F 3P 6 m - Silver plated

The DAP FLR09 DMX/AES-EBU cable offers professional grade signal transmission, constructed with DAP DIG-110 digital cable and Rean RC3 connectors. The DIG-110 uses a braided shield for interference-free signal transmission. The RC3 connectors have silver-plated contacts to ensure low-impedance, high-quality connections for your signals. The sleek, black-plated zinc housing provides robust protection while maintaining a professional look. Each cable includes a transparent heat-shrink label sleeve for easy identification and a convenient hook-and-loop fastener to keep setups tidy.Technical data:

Connector 1:	XLR 3P Male
Connector 2:	XLR 3P Female
Brand Connector 1:	REAN
Impedance:	110 Ω
Cable Length:	6 m
Pins:	3
Conductor Resistance:	130 Ω/km
Conductor Capacitance:	20 pF/m
Capacity Inner Conduct. Shield/Inner Conduct.:	65 pF/m
Wire Connection:	1.8 mm²
Outer Cable Diameter:	6 mm
Outer Isolation Type:	PE
Weight:	0.36 kg
IP Rating:	IP20 (indoor use only)
Material:	Copper / PVC
Colour:	Black
Contact Type:	Silver plated
1st Shield:	Braided
Shield Resistance:	12.5 Ω/km
Filler Material:	Cotton
Conductors:	2
Conductor Construction:	Stranded Core
Maximum Ambient Temperature:	60 °C
Minimum Ambient Temperature:	-20 °C
