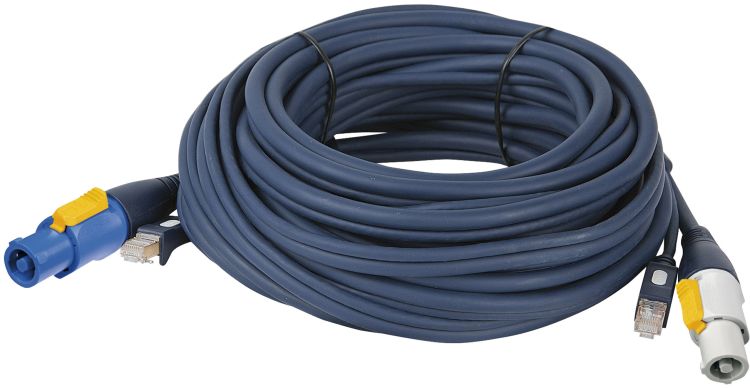

DAP-Audio powerCON/RJ45 - powerCON/RJ45 - Data / Power 3 m

powerCON data extension cables are the ideal solution for quick and easy connection of multiple Showtec LED light effects and strips or DMT LED screens. No more separate power and data cables, no more cable mess. The powerCON data extension cables are available in different lengths so you will always find the length you need to connect your devices without having too much cable length left. There are three different variations of the powerCON extension cable: XLR, RJ45 or etherCON data connectors. Check also the DAP prefab power signal cables. (FP0410, FP0510, FP0610, FP0810, FP0910, FP1010)Technical data:

Rated Current (A):	16 A
Flashover Voltage:	250 V
Impedance:	100 Ω
Connector 1:	powerCON Grey
Connector 2:	powerCON Blue
Data Connector In:	RJ45
Data Connector Out:	RJ45
Brand Connector 1:	Neutrik
Cable Length:	3 m
Pins ( power ):	3
Pins ( data ):	8
Conductor Resistance:	78.4 Ω/km
Outer Cable Diameter:	8 mm
Weight:	0.542 kg
IP Rating:	IP20 (indoor use only)
Material:	PVC
Colour:	Blue
Contact Type:	Gold plated
Maximum Ambient Temperature:	60 °C
Minimum Ambient Temperature:	-30 °C
