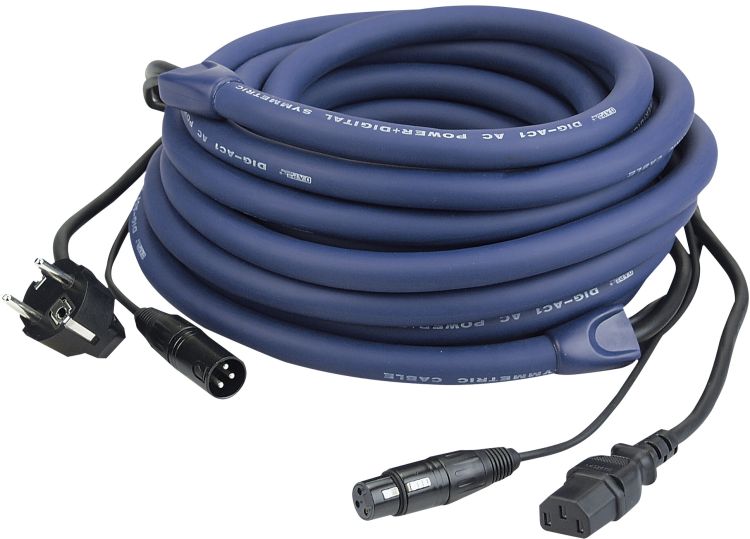

DAP-Audio FP04 - Schuko/XLR M - IEC/XLR F - DMX / Power 20 m
€103.30 *
Availability:
Delivery time: 3-5 days
Delivery time: 3-5 days
Item number: 200802070
EAN: 8717748047649
MPN: FP0420
Blue power/DMX cable with male and female 3P XLR connector, male schuko connector and female IEC... more
All information about the product:
"DAP-Audio FP04 - Schuko/XLR M - IEC/XLR F - DMX / Power 20 m"
Blue power/DMX cable with male and female 3P XLR connector, male schuko connector and female IEC connector.Technical data:
| Rated Current (A): | 16 A |
| Flashover Voltage: | 30 V |
| Impedance: | 110 Ω |
| Connector 1: | Schuko Plug |
| Connector 2: | IEC C13 female |
| DMX Connector In: | XLR 3P |
| DMX Connector Out: | XLR 3P |
| Cable Length: | 20 m |
| Pins ( power ): | 3 |
| Pins ( data ): | 3 |
| Conductor Resistance: | 80 Ω/km |
| Conductor Capacitance: | 60 pF/m |
| Capacity Inner Conduct. Shield/Inner Conduct.: | 78 pF/m |
| Outer Cable Diameter: | 15 mm |
| Outer Isolation Type: | PVC |
| Weight: | 5.6 kg |
| IP Rating: | IP20 (indoor use only) |
| Material: | PVC |
| Colour: | Blue |
| Contact Type: | Copper |
| 1st Shield: | Twisted |
| Shield Resistance: | 30 Ω/km |
| Filler Material: | Paper |
| Maximum Ambient Temperature: | 60 °C |
| Minimum Ambient Temperature: | -20 °C |
