DAP-Audio FP12 - IEC/XLR M - IEC/XLR F - DMX / Power 6 m

€45.45 *

incl. tax, plus shipping costs

Availability:

Delivery time: 3-5 days

Delivery time: 3-5 days

Item number: 110801895

EAN: 8717748314710

MPN: FP126

Power/DMX cable with male and female 3P XLR connector, male and female IEC connector. Technical... more

All information about the product:

"DAP-Audio FP12 - IEC/XLR M - IEC/XLR F - DMX / Power 6 m"

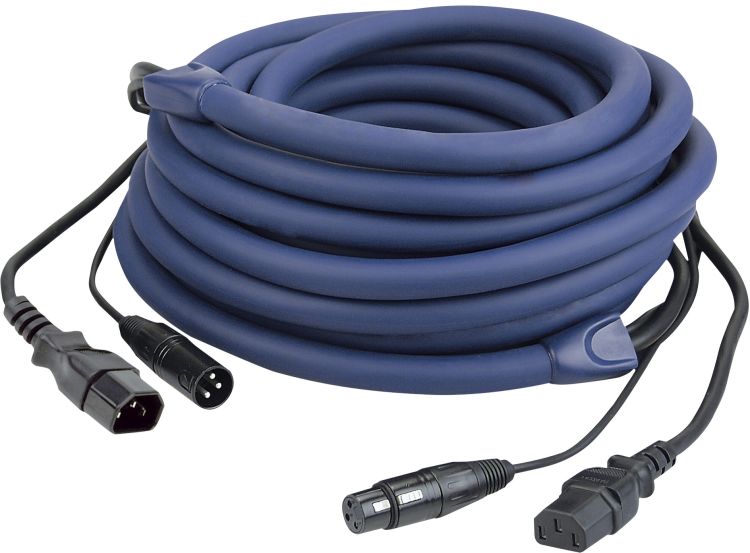

Power/DMX cable with male and female 3P XLR connector, male and female IEC connector.Technical data:

Rated Current (A):	16 A
Flashover Voltage:	30 V
Impedance:	110 Ω
Connector 1:	IEC C14 male
Connector 2:	IEC C13 female
DMX Connector In:	XLR 3P
DMX Connector Out:	XLR 3P
Cable Length:	6 m
Pins ( power ):	3
Pins ( data ):	3
Conductor Resistance:	80 Ω/km
Conductor Capacitance:	60 pF/m
Capacity Inner Conduct. Shield/Inner Conduct.:	78 pF/m
Outer Cable Diameter:	15 mm
Outer Isolation Type:	PVC
Weight:	1.418 kg
IP Rating:	IP20 (indoor use only)
Material:	PVC
Colour:	Blue
Contact Type:	Copper
1st Shield:	Twisted
Shield Resistance:	30 Ω/km
Filler Material:	Paper
Maximum Ambient Temperature:	60 °C
Minimum Ambient Temperature:	-20 °C
