ADJ Mirage Q6 Pak Black

€3,149.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Currently not available.
Expected to be available again in 10 weeks.

Currently not available

Item number: 250802855

The ADJ Lighting Mirage Q6 Pak Black is an all-in-one event up lighting system with six (6)... more

Back to the overview

All information about the product:

"ADJ Mirage Q6 Pak Black"

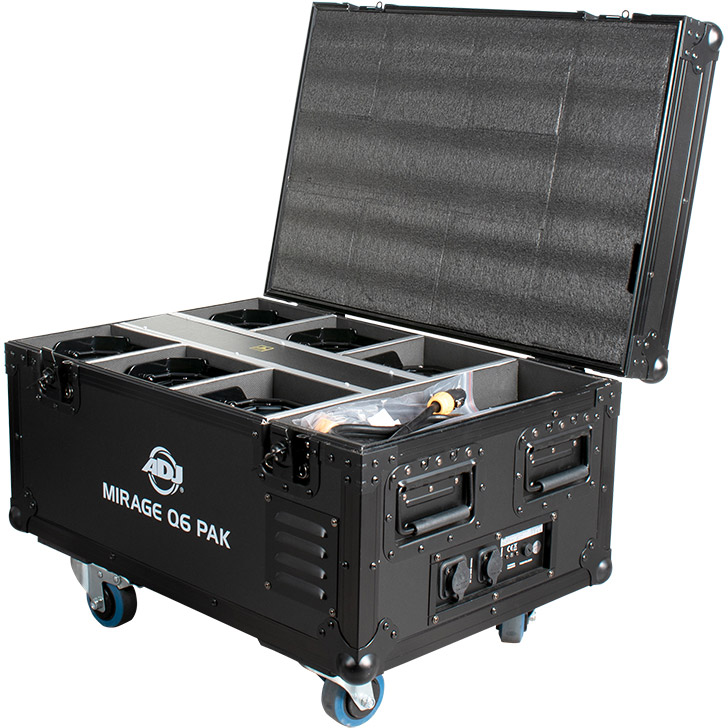

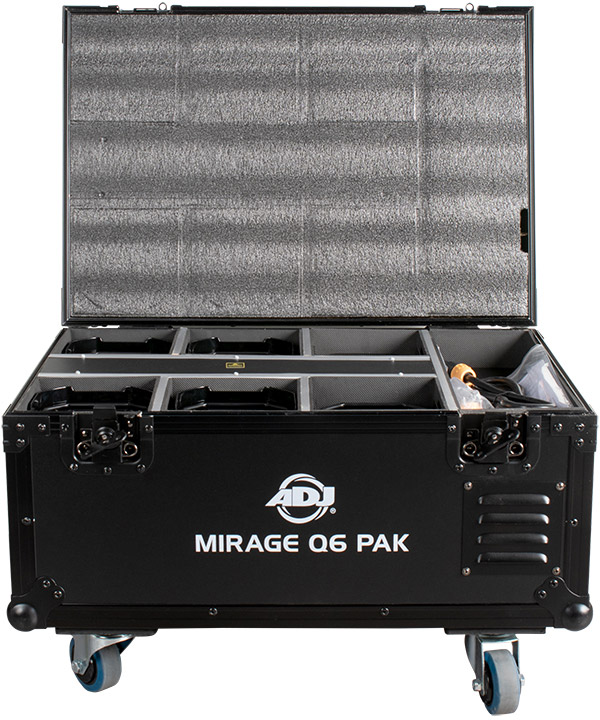

The ADJ Lighting Mirage Q6 Pak Black is an all-in-one event up lighting system with six (6) IP65 rated, for outdoor or indoor use, battery powered fixtures and a durable flight case with an on-board battery charging solution.

Each Mirage Q6 IP Black fixture is powered by four (4) 10W RGBA LEDs that produce a 11-degree beam angle. The fixture is IP65 rated and is waterproof; suitable for temporary use outdoors with protection against the elements (rain, snow, dust and sand). Built-in WiFLY EXR wireless DMX allows for the fixtures to communicate with a lighting controller, also with WiFLY EXR wireless DMX, up to 2,500 feet (700M) away.

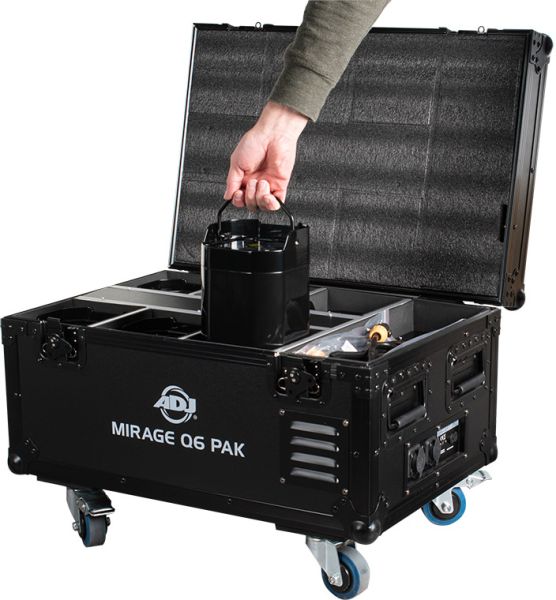

Ideal for wall washing, Mirage Q6 IP Black fixtures are all fitted with an integral carry handle and built-in feet which mean they can simply be dropped in place and are ready to go. They also feature a built-in kickstand which allows the beam to be easily angled inwards towards a wall if required. This creates a more intense wash and minimizes light spill onto the ceiling above.

Each fixture has an alarm system with on/off controls. If someone picks up the fixture with the alarm system on, the fixture will make a beeping sound and strobe in red.

The robust battery will operate up to 40 hours on a single color (20 hours changing colors). The battery charge time is 7 hours.

Technical data:

Mirage q6 Pak includes:

(6) MIRAGE Q6 IP Black Fixtures
(1) MIRAGE Q6 FC Flight Case
(6) MIRAGE Q6 IPCB Charging bases and power supplies
(1) UC-IR Wireless Infrared Controller
(1) IP65 Locking Power Cable

Mirage Q6 Pak Features:

Houses / Transports and Charges (6) MIRAGE Q6 IP™ BLACK fixtures

MirageQ6 Pak Dimensions & Weight (with 6 fixtures):

Length: 26.4” (671mm)
Width: 18.2” (461mm)
Vertical Height: 18.1” (459mm)
Loaded Weight: 97.9 lbs. (44.4 kg)

Pak Electrical & Thermal:

Power Input: AC100VAC~240VAC, 50/60Hz
IP65 Power Locking Input and Output
Max Power Consumption: 400 Watts
Power Draw: 4A
Charge status indicator
14°F to 113°F (-10°C to 45°C)

MIRAGE Q6 IP BLACK FIXTURE

Source:

4 x 10-Watt RGBA LEDs (4-in-1 - Red, Green, Blue & Amber)
50,000 Hour Average Life*

*May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometrics:

LUX: 9903 @ 2M; 2303 @ 4M

Optics:

11-degree beam angle

Control & Connections:

Control protocol: WiFLY EXR Wireless DMX
11 DMX Channel modes: 4, 6, 7, 8, 9A, 9B, 10, 11, 12, 15 or 18 channels
Remote control: WiFLY EXR DMX, UC-IR24 (Included)
5 Operation modes: RGBA Dimmer Mode; Auto Run Mode (13 programs, & 1 color/fade combo mode); Static Color mode; and Wireless DMX Control
Contact Charging system. 6x Charging bases and power supplies included in flight case

Features:

IP65 Outdoor Rated
Built-in kickstand to angle fixture when sitting on the floor
4-touch button OLED display on rear panel
Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR
Battery Transceiver
64 built-in Color Macros
Variable RGBA color mixing offers a smooth, seemingly unlimited color palette - Great for Wall Washing!
LED pulse and strobe effect (0.2Hz-11Hz)
Flicker Free Operation
Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves
Run all night – No duty cycle
Energy Save Mode
Built-in alarm system with On/Off
Battery charge indicator on each fixture
Die-cast aluminum housing

Battery:

Battery Type: Fixed lithium battery
Battery Energy: 162.8WH (Watt Hours)
Battery Weight: 0.84 kg.
Battery Voltage: 14.8V
Battery Capacity: 11000mAh (Typical Capacity)
Total Lithium Ion Cells: 20 pieces

Battery Wrap Material: PVC sleeving + highland barley paper
Battery Charge Time: 7 Hours
Battery Life: 14 hours (When color changing in Battery Saver Mode 14); 40 hours (When set to a single color in Battery Saver Mode 14) Battery Saver Mode 14 is available in software V1.03>

Dimensions & Weight:

Length: 143.2mm
Width: 143.2mm
Vertical Height: 211mm
Weight: 4.01kg

Electrical & Thermal:

Power Input: DC 17.3V
Power Draw: 2A
40W Max Power Consumption (each unit)
-10°C to 45°C

and documentation subject to change without notice.
