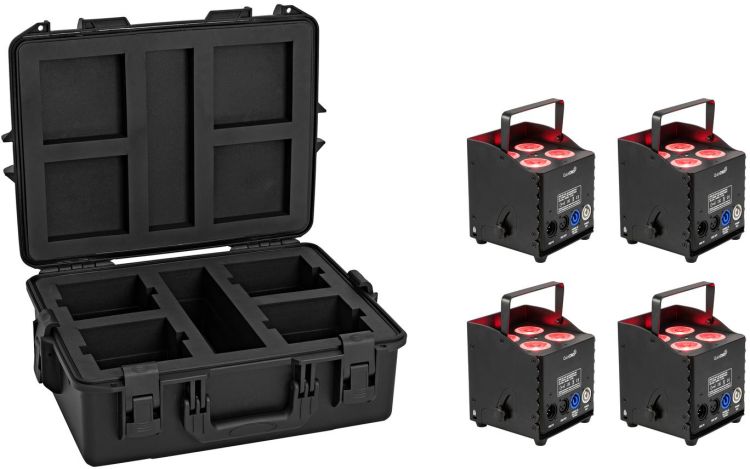

EUROLITE Set 4x AKKU UP-4 QCL Spot QuickDMX MK2 + Plastic case

€1,349.00 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Delivery time: 3-5 days
Delivery time: 3-5 days
Please choose a variant.
Item number: 120037675
EAN: 4026397710106
MPN: 20001038
EUROLITE AKKU UP-4 QCL Spot QuickDMX MK2 Bright battery powered LED uplight with 10 W 4in1 LEDs... more
All information about the product:
"EUROLITE Set 4x AKKU UP-4 QCL Spot QuickDMX MK2 + Plastic case"

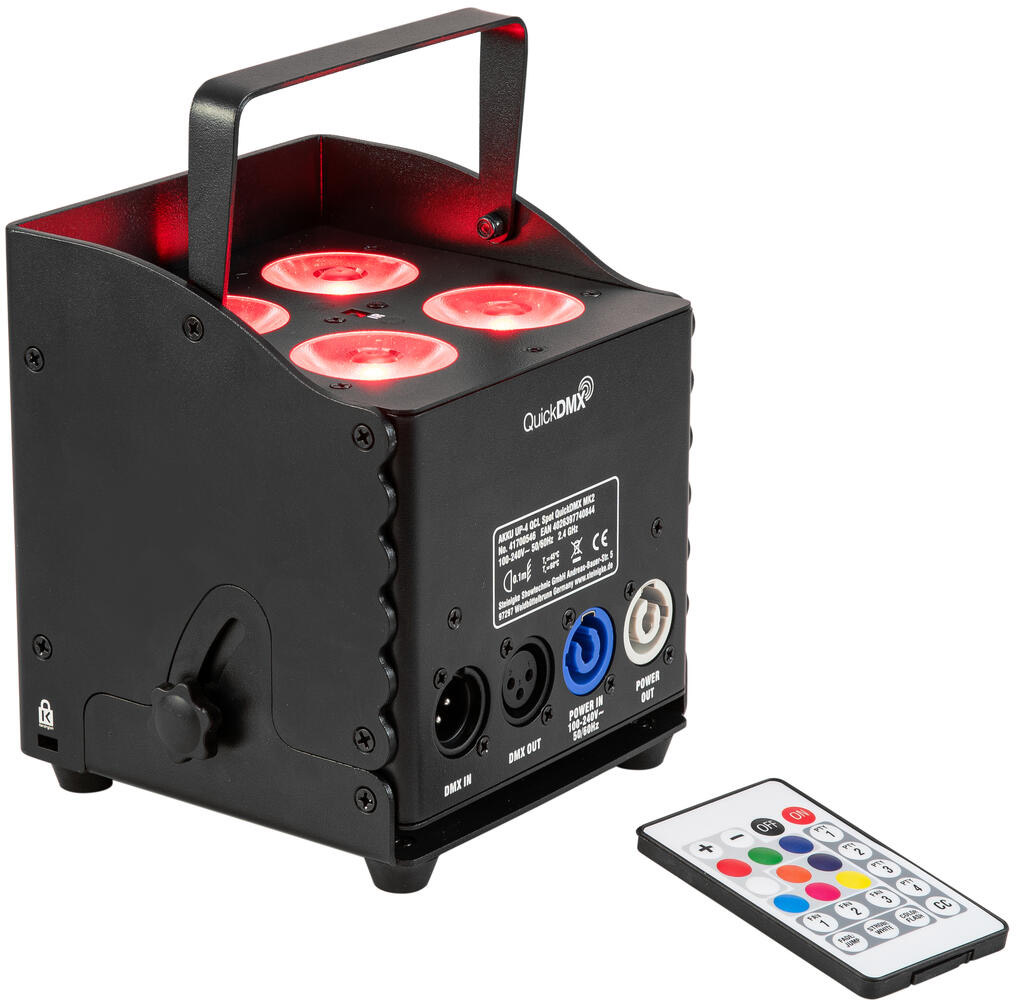

EUROLITE AKKU UP-4 QCL Spot QuickDMX MK2

Bright battery powered LED uplight with 10 W 4in1 LEDs and QuickDMX

  • Integrated QuickDMX transceiver for wireless DMX control
  • Cordless, flexible and versatile
  • 4 powerful LEDs 10 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
  • Dimmer electronic; Dimmer speed (step response) adjustable; color fade adjustable speed; color change adjustable speed; white balance adjustable; color blend adjustable; frost filter; color selection manual; program selection manual; pulse-width modulation; Energy-saving mode; Emergency lighting function in case of power failure
  • Multi beam effect; spot effect; wash effect; strobe effect
  • 36 integrated show programs
  • Direct color selection for 15 preset colors
  • The device is cooled by passive convection cooling
  • Control via IR remote control; QuickDMX; DMX; stand-alone; sound to light via microphone; wireless Master/slave function; RDM
  • Up to 6 transmitters can be operated in parallel without interference
  • DMX fail mode (blackout; hold; static; full on)
  • With a beam angle of 7°
  • With bracket for floor use
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Wedding/gala/events; mobile use; mobile djs / entertainer; rental
  • Silent operation
  • Application possibility: Standing; suspended
  • Battery operation up to 9h depending on program used
  • Integrated automatic charging of the battery and status indicator
  • With a KENSINGTON LOCK theft protection
  • Preprogrammed in Colorchief
  • Flicker-free
  • QuickDMX: operating range up to 600m in the open air
  • Monochrome OLED display
  • Display of the remaining battery life for the current setting
  • Charge status indicator
  • 3 buttons on the remote control for saving your own settings

Package contents

  • 1 x spotlight, 1 x user manual, 1 x declaration of conformity, 1 x power cord, 1 x remote control, 1 x battery, 1 x frost filter, 1 x knurled screw

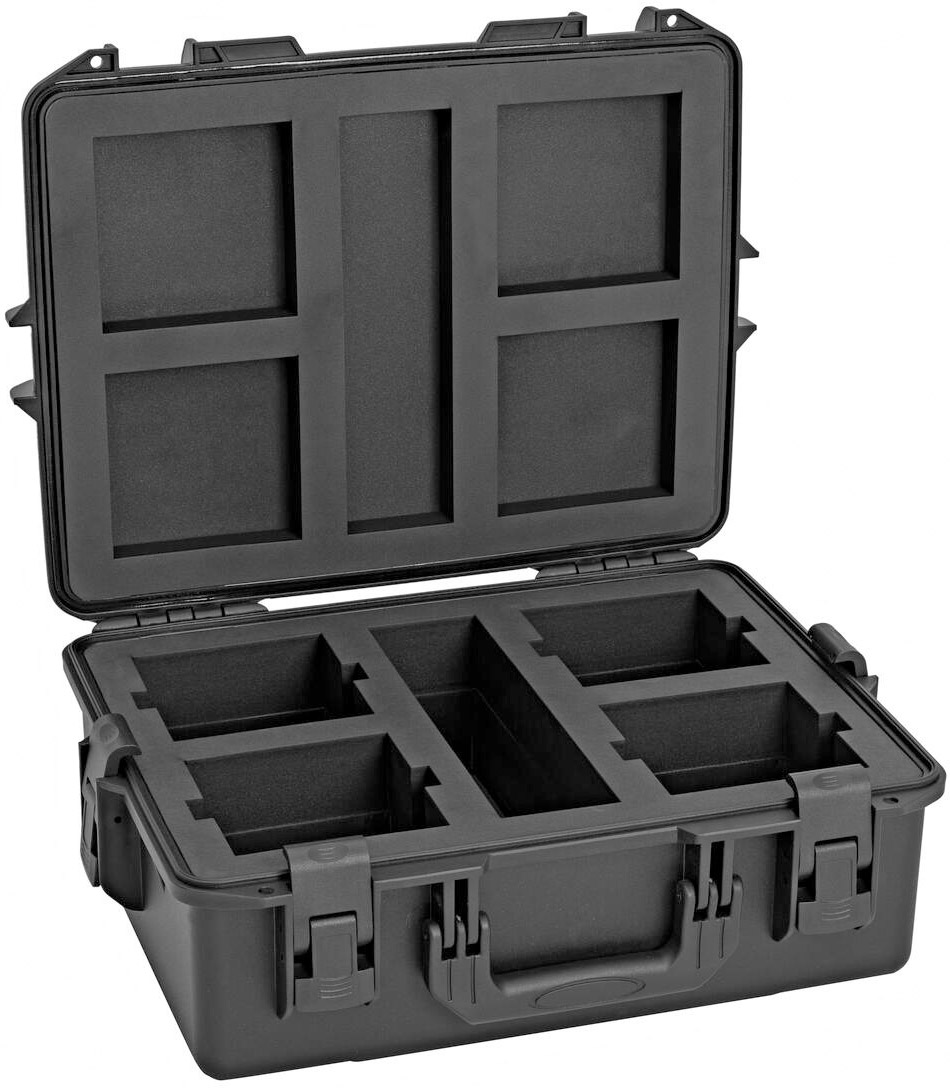

ROADINGER Plastic Case for 4x AKKU UP-4 QCL Spot QuickDMX MK2

Carrying case

  • With 4 device compartment
  • High-quality workmanship with plastic , black
  • Interior with foam padding
    cover with foam padding
  • Rugged carrying handle
  • 4 high-quality spring locks with shut-off function
  • 4 plastic feet
  • For application areas such as: Mobile use; rental; mobile djs / entertainer

Package contents

  • 1 x case
Weight:15,62 kg
EUROLITE AKKU UP-4 QCL Spot QuickDMX MK2
Power supply:100-240 V AC, 50/60 Hz
IP classification:IP20
Protection class:Protection class I
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Cable construction:3 x 1,0 mm² H05VV-F
Power output:P-Con (gray), mounting version
Battery pack type:1 x lithium ion 14,8 V, 6600 mAh, 97,68 Wh
Battery pack:Battery operation up to 9h depending on program used
Recharging time 3h
Lamp type:LED lamp
LED type:4 x 10 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
Flash rate:27 Hz
DMX channels:3; 4; 6; 8; 11
DMX input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Cooling:Passive convection cooling
Control:IR remote control; QuickDMX; DMX; stand-alone; sound to light via microphone; wireless Master/slave function; RDM
Preprogrammed in:Colorchief
Projection:Flicker-free
PWM frequency:3000 Hz
Range:QuickDMX: range up to 600m in the open air
Carrier frequency:2,4 GHz
Parallel mode:Max. 6 transmitter
Modulation:GFSK
DMX fail mode:Blackout; hold; static; full on
Beam angle:
Beam angle (1/2 peak):
Frost filter 20°
Beam angle (1/10 peak):18°
Frost filter 42°
Distance to wall:500 mm
Attachment system:Bracket for floor use
Display type:Monochrome OLED display
Display:Battery runtime calculation , charge status indicator
Material:Metal, painted
Theft protection:KENSINGTON LOCK
Dimensions:Length: 15,4 cm
Width: 13,3 cm
Height: 15,8 cm
Weight:2,83 kg
Noise classification:Class 0 (no noise at all)
Remote control
Battery:1 x button cell 3.0 V CR2032 lithium manganese built-in
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
ROADINGER Plastic Case for 4x AKKU UP-4 QCL Spot QuickDMX MK2
Maximum load:25 kg
Carrying handle:1 pc/pcs
Lock:Spring lock: 4 pc/pcs with shut-off function
Transport aid:4 x plastic feet
Material:Plastic
Color:Black
Inside dimensions:49 cm x 36 cm x 13 cm
Device compartment:16 cm x 13,5 cm x 16 cm
Accessory compartment:8 cm x 30,5 cm x 16 cm
Dimensions:Length: 55 cm
Depth: 42,5 cm
Height: 21 cm
Weight:4,30 kg
