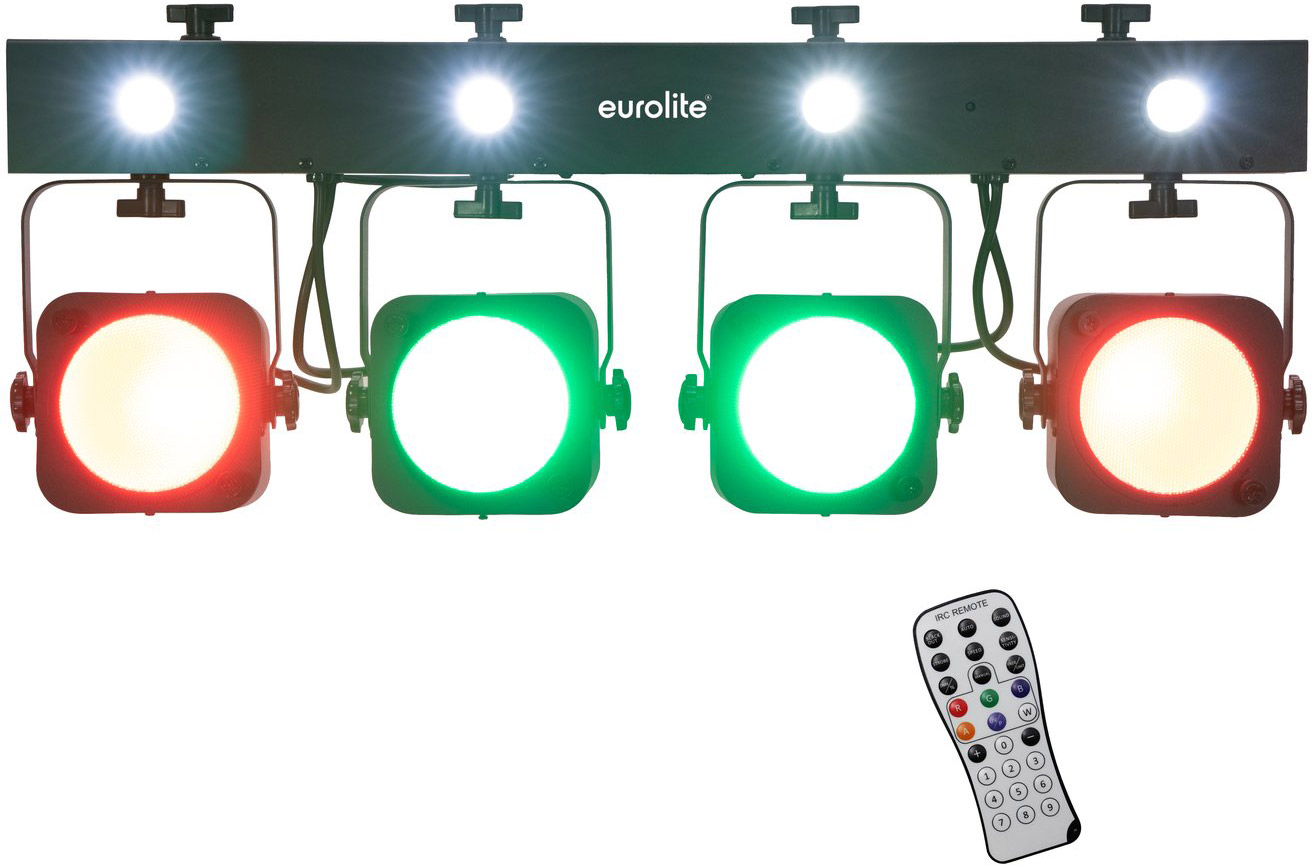

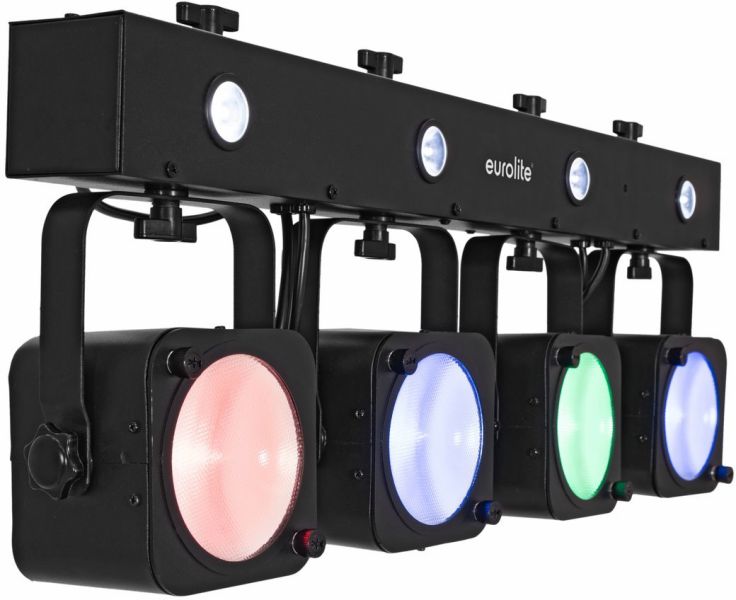

EUROLITE LED KLS-190 Compact Light Set
€399.00 *
incl. tax,
plus forwarding agency costs
Availability:
Currently not available
Currently not available
Bulky goods
Item number: 120031350
EAN: 4026397657715
MPN: 42109608
Bar with 4 RGB spots, 4 white strobe LEDs and QuickDMX USB port Crossbar with integrated DMX... more
All information about the product:
"EUROLITE LED KLS-190 Compact Light Set"
Bar with 4 RGB spots, 4 white strobe LEDs and QuickDMX USB port
- Crossbar with integrated DMX control unit and stand sleeve
- Compact lightweight
- Two additional frost filters provide a soft, homogeneous light
- Movable and tiltable spotlights
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect
- 19 integrated show programs
- Direct color selection for 18 preset colors
- The device is cooled by passive convection cooling
- Control via DMX; sound to light via microphone; IR remote control; master/slave function; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- With a beam angle of 9°
- Silent operation
- Mains input and output for power linking up to 8 units
- Application possibility: On stand; suspended
- Preprogrammed in EASY SHOW 1; Light´J; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
- For application areas such as: Wedding/gala/events; party room; mobile use; mobile djs / entertainer
spotlight
- 4 powerful LEDs 30 W COB (chip-on-board) 3in1 TCL RGB (homogenous color mix)
spots controlled separately
bar
- 4 powerful LEDs 3 W high-power cold white (CW)
LEDs controlled separately
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 1 x bag, 8 x frost filter
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 60 W |
| IP classification: | IP20 |
| Lamp type: | LED lamp |
| DMX channels: | 4; 6; 7; 9; 13; 16 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | DMX; sound to light via microphone; IR remote control; master/slave function; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | EASY SHOW 1; Light´J; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief |
| Beam angle: | 9° |
| Beam angle (1/2 peak): | 9° 42° |
| Beam angle (1/10 peak): | 20° 72° |
| Housing color: | Black |
| Dimensions: | Width: 66,0 cm Depth: 15,0 cm Height: 26,5 cm |
| Weight: | 6,29 kg |
| Noise classification: | Class 0 (no noise at all) |
| Photobiological safety: | Risk Group 0 |
| Spotlight | |
| LED type: | 4 x 30 W COB (chip-on-board) 3in1 TCL RGB (homogenous color mix) |
| Bar | |
| LED type: | 4 x 3 W high-power cold white (CW) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
