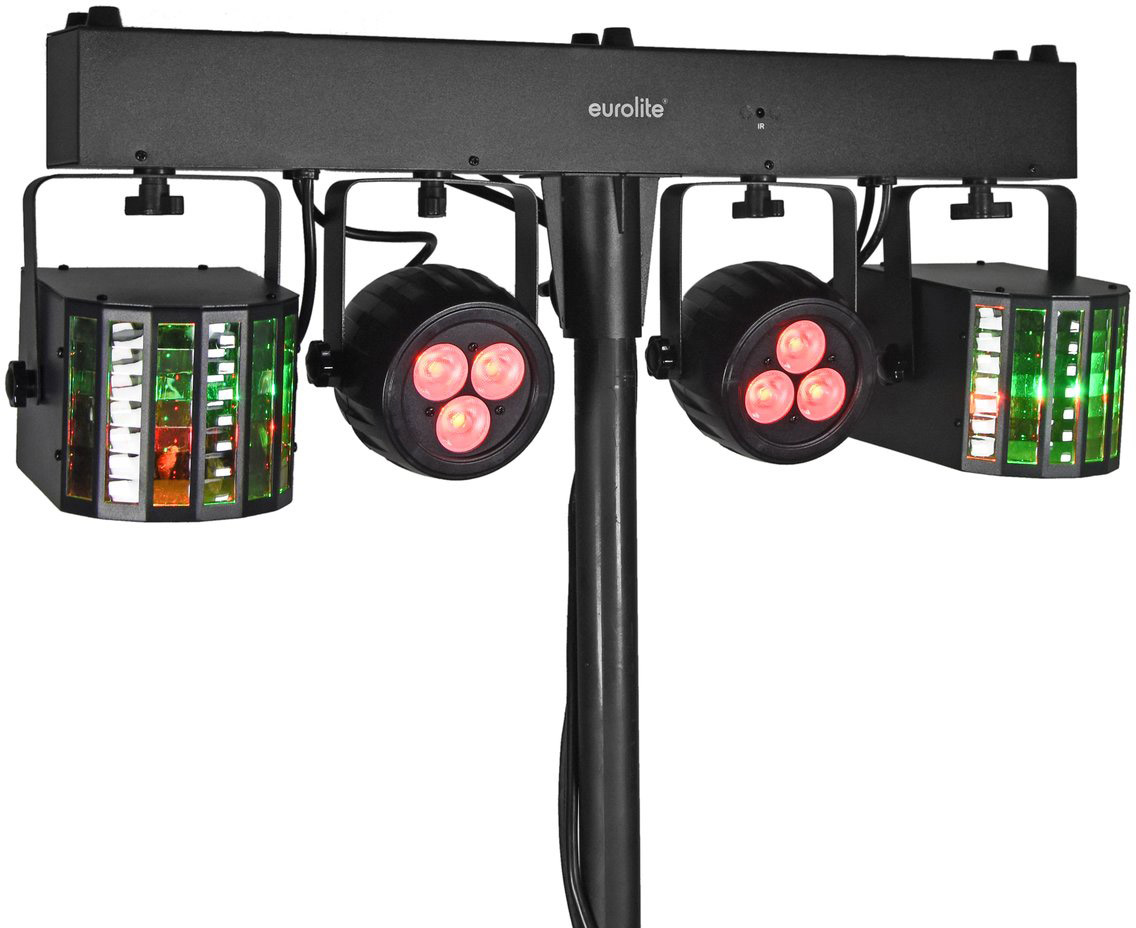

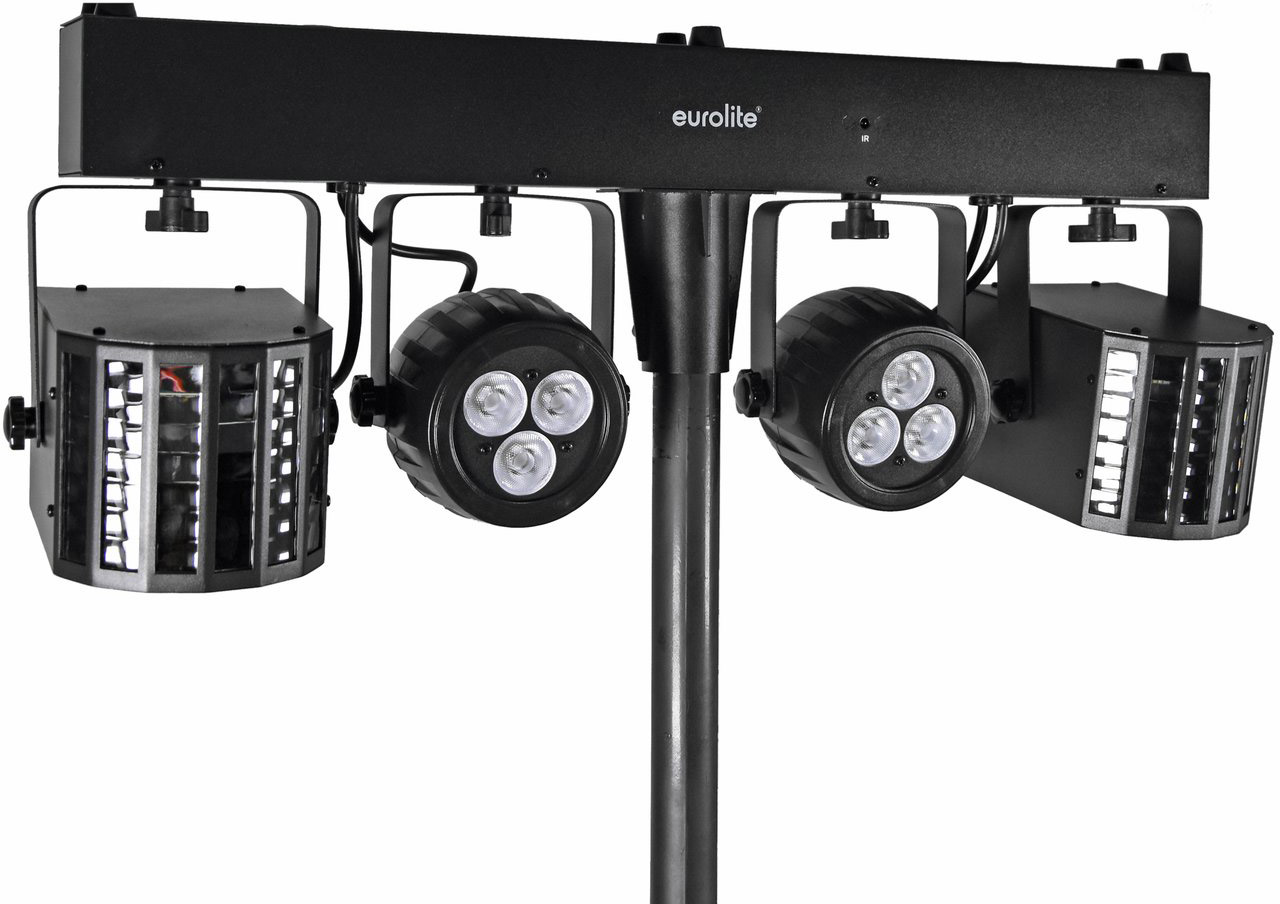

EUROLITE LED KLS-120 FX Compact Light Set
€199.00 *
Availability:
Delivery time: 3-5 days
Delivery time: 3-5 days
Item number: 120033370
EAN: 4026397680751
MPN: 42109607
DMX lighting effect bar with 2 rotating LED derbies and 2 LED spotlights Crossbar with... more
All information about the product:
"EUROLITE LED KLS-120 FX Compact Light Set"

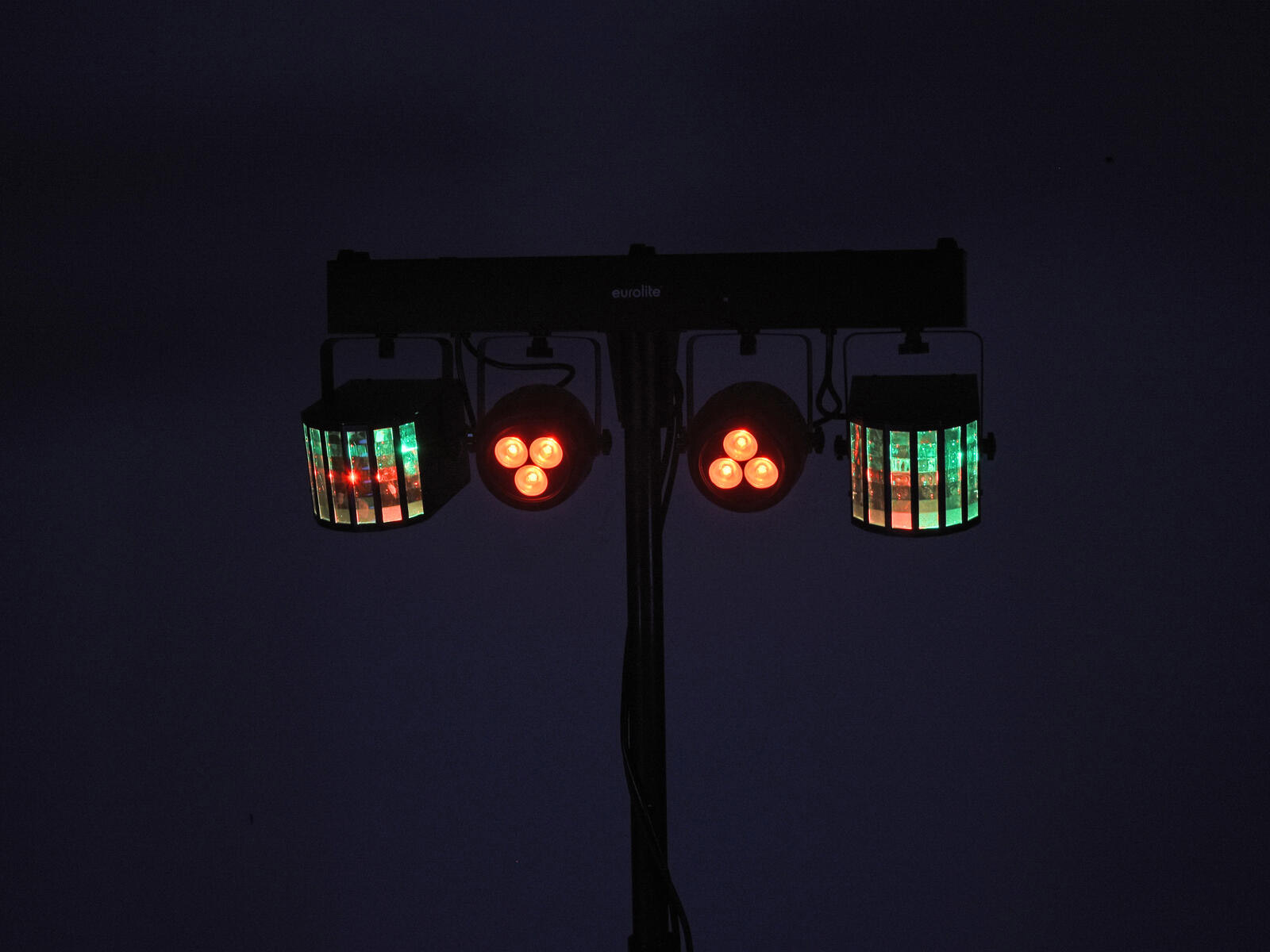

DMX lighting effect bar with 2 rotating LED derbies and 2 LED spotlights

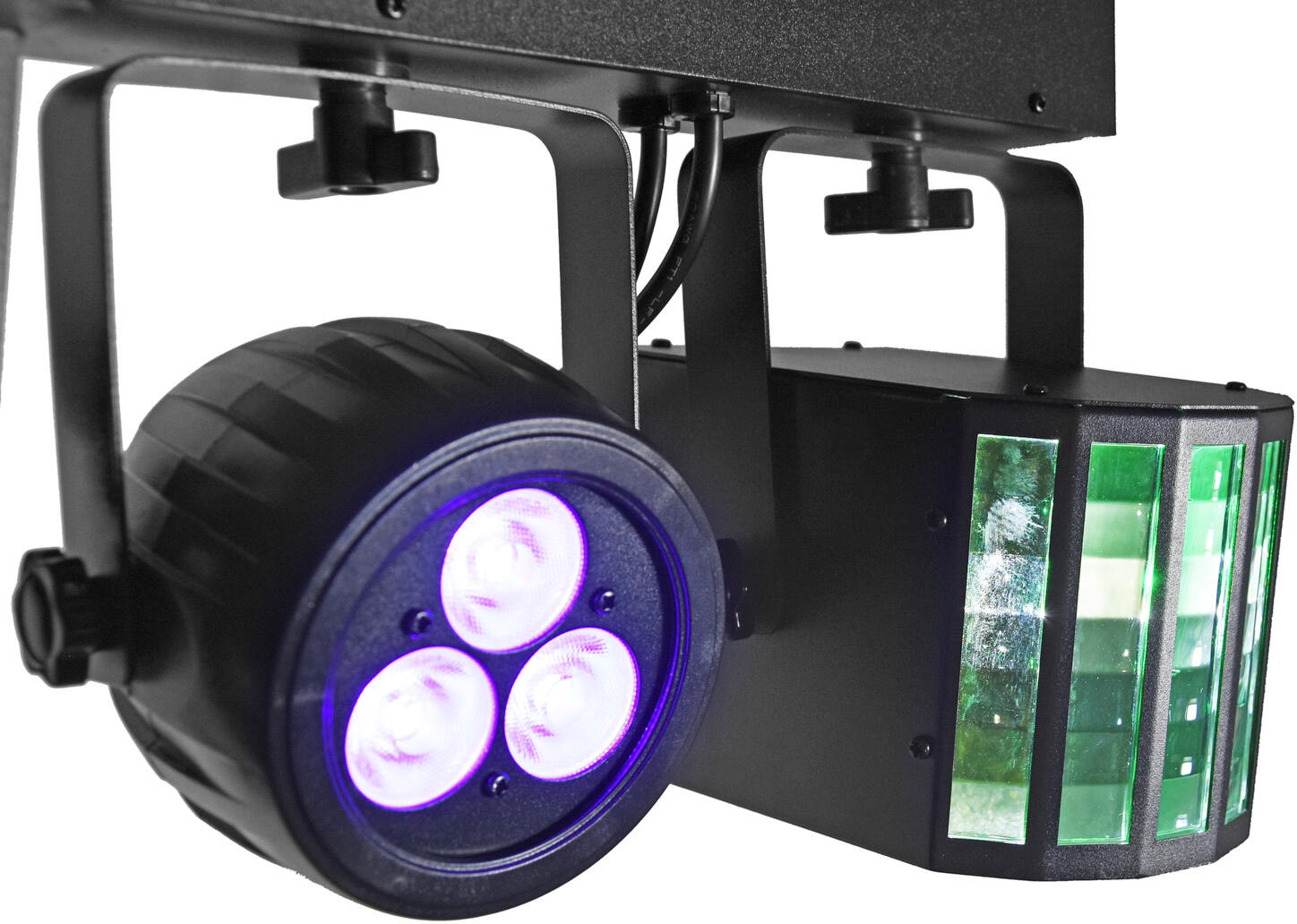

- Crossbar with integrated DMX control unit and stand sleeve
- Compact lightweight
- 2 rotating derbies for mirror ball effects
- Silent operation
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Direct color selection for 15 preset colors
- 3 integrated show programs
- Strobe effect
- Flicker-free
- Control via DMX; IR remote control; stand-alone; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Mains input and output for power linking up to 8 units
- Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J; Colorchief
- 6 rubber feet
- For application areas such as: Wedding/gala/events; party room; mobile use; mobile djs / entertainer
- Application possibility: Standing; on stand

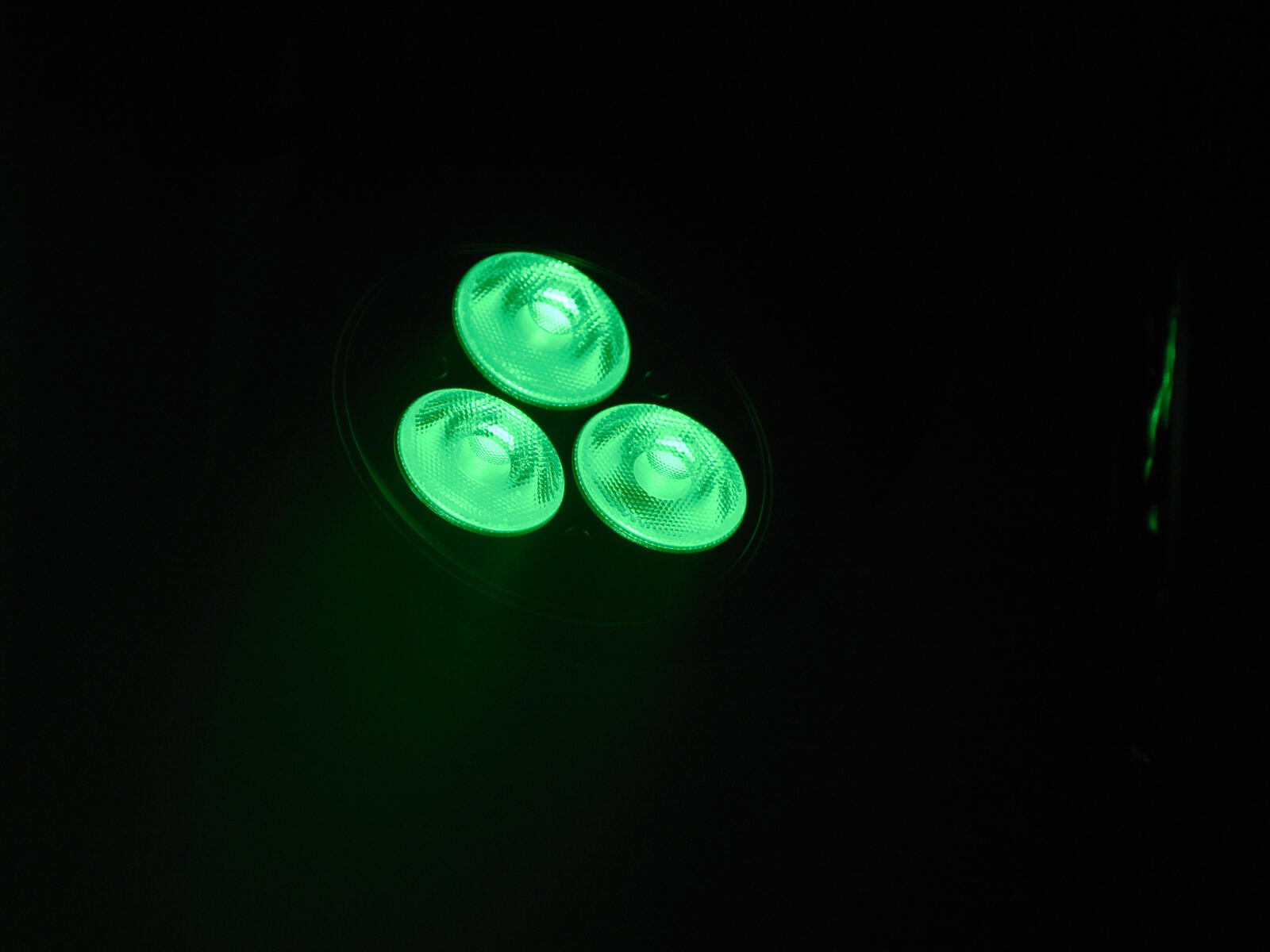

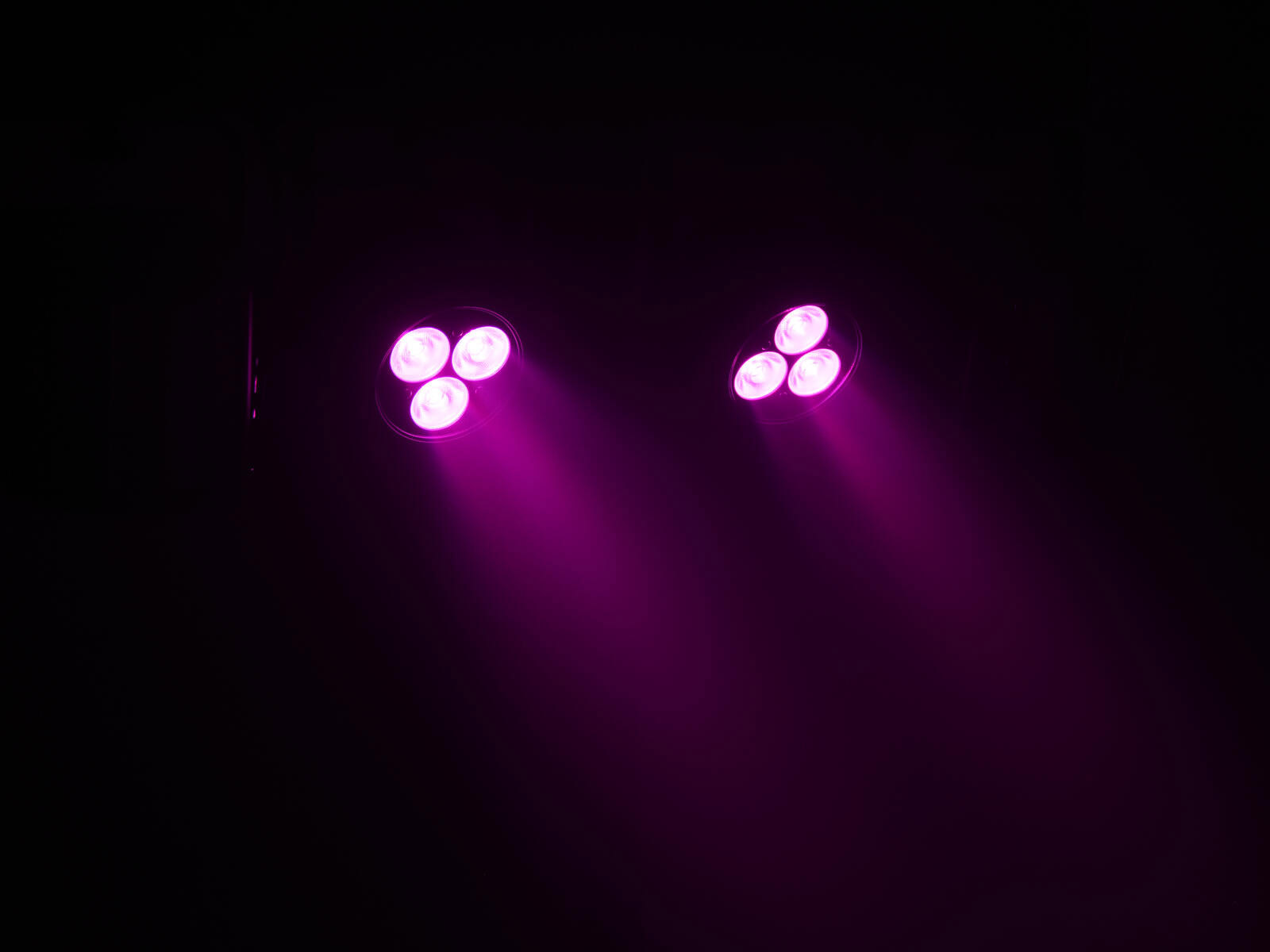

spotlight
- 3 powerful LEDs 8 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
spots controlled separately
light effect
- 4 powerful LEDs 3 W high-power R/G/B/W
LEDs controlled separately
Package contents
- 1 x light effect, 1 x power cord, 1 x remote control, 1 x battery, 1 x bag, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 45 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
| Power output: | IEC connector (F) mounting version |
| Fuse: | T 1 A fuse replaceable |
| Lamp type: | LED lamp |
| DMX channels: | 2; 9; 21 |
| DMX input: | 3-pin XLR (F) mounting version |
| DMX output: | 3-pin XLR (M) mounting version |
| Cooling: | Passive convection cooling |
| Control: | DMX; IR remote control; stand-alone; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J; Colorchief |
| Projection: | Flicker-free |
| Beam angle: | 18° |
| Beam angle (1/2 peak): | Wash effect 18° Multi beam effect 90° multicolor |
| Housing color: | Black |
| Display type: | 4 digit 7-segment LED display |
| Transport aid: | 6 x rubber feet |
| Dimensions: | Width: 62,5 cm Depth: 15,5 cm Height: 22,4 cm |
| Weight: | 4,70 kg |
| Noise classification: | Class 0 (no noise at all) |
| Light effect | |
| LED type: | 4 x 3 W high-power R/G/B/W |
| Power cord | |
| Cable construction: | H05VV-F |
| Cable length: | Approx. 1,2 m |
| Remote control | |
| Battery: | 1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Spotlight | |
| LED type: | 3 x 8 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
