EUROLITE LED KLS-3002 MK2 Compact Light Set AIR
€599.00 *
Availability:
Delivery time: 3-5 days
Delivery time: 3-5 days
Item number: 120038090
EAN: 4026397750713
MPN: 42109896
Bar with 4 powerful 6in1 HCL RGBWA/UV spots, AirW wireless system (2.4 GHz), wireless remote... more
All information about the product:
"EUROLITE LED KLS-3002 MK2 Compact Light Set AIR"

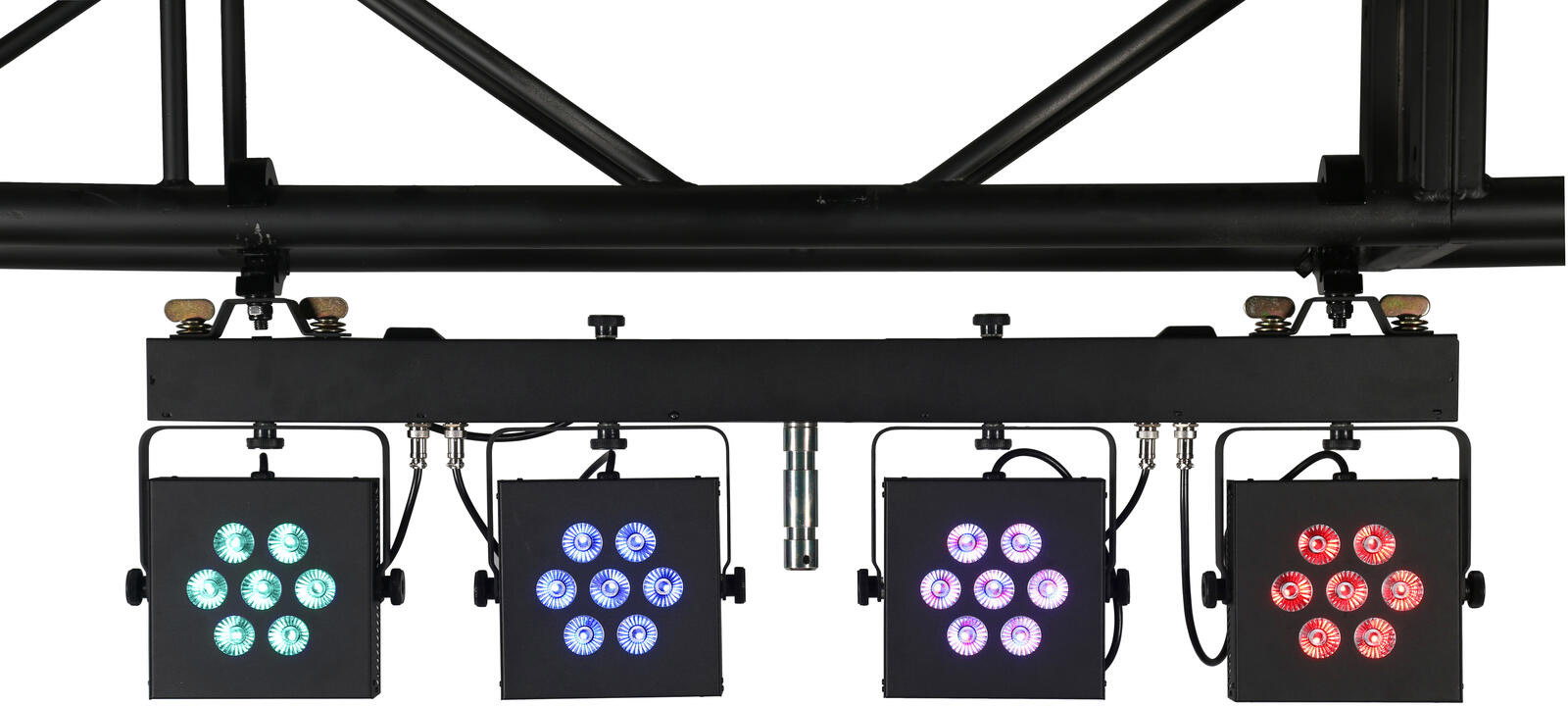

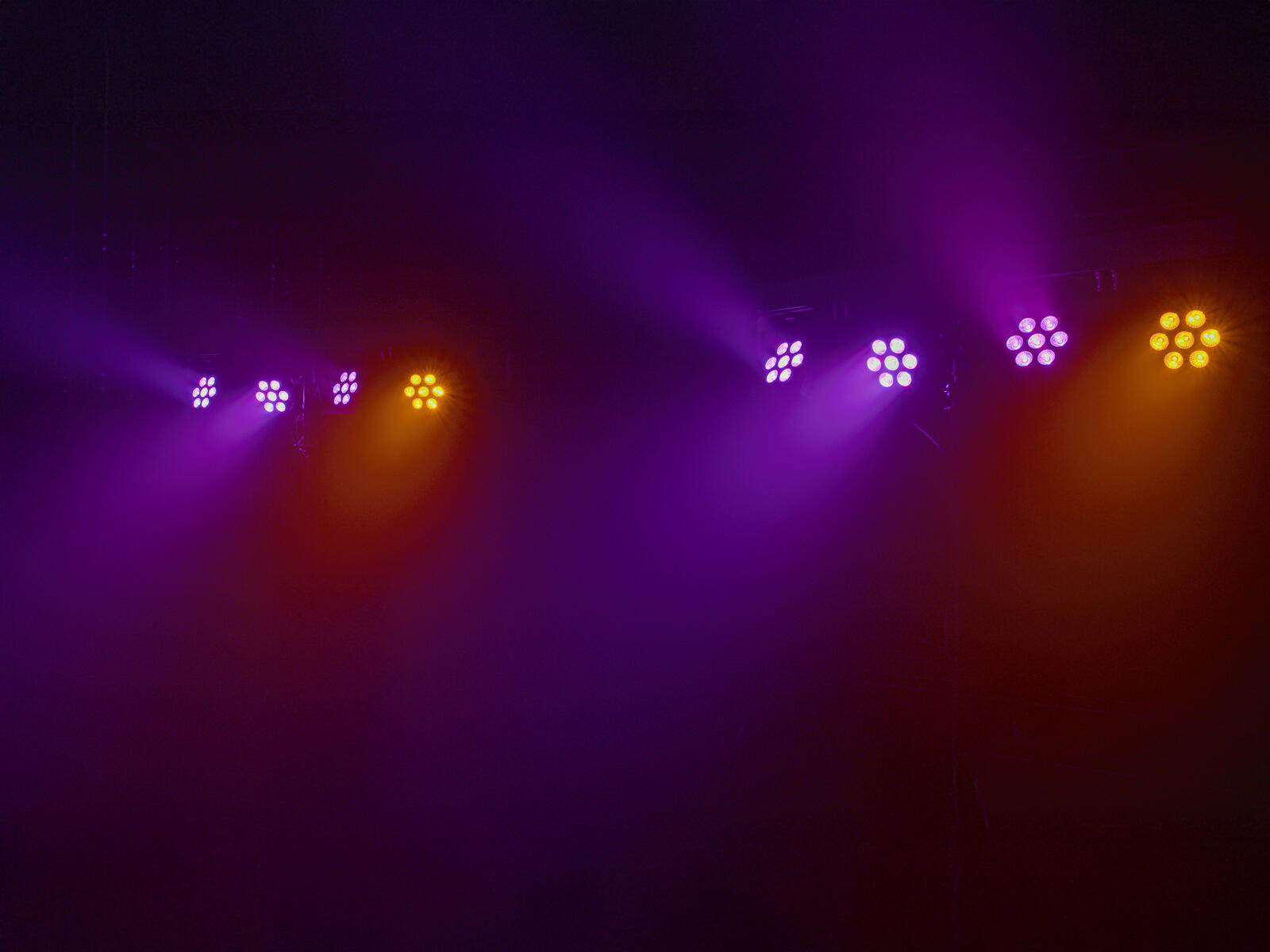

Bar with 4 powerful 6in1 HCL RGBWA/UV spots, AirW wireless system (2.4 GHz), wireless remote control and transport bag
- Crossbar with integrated DMX control unit and TV spigot for tripod installation
- Integrated AirW radio transceiver for wireless master/slave operation
- Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band

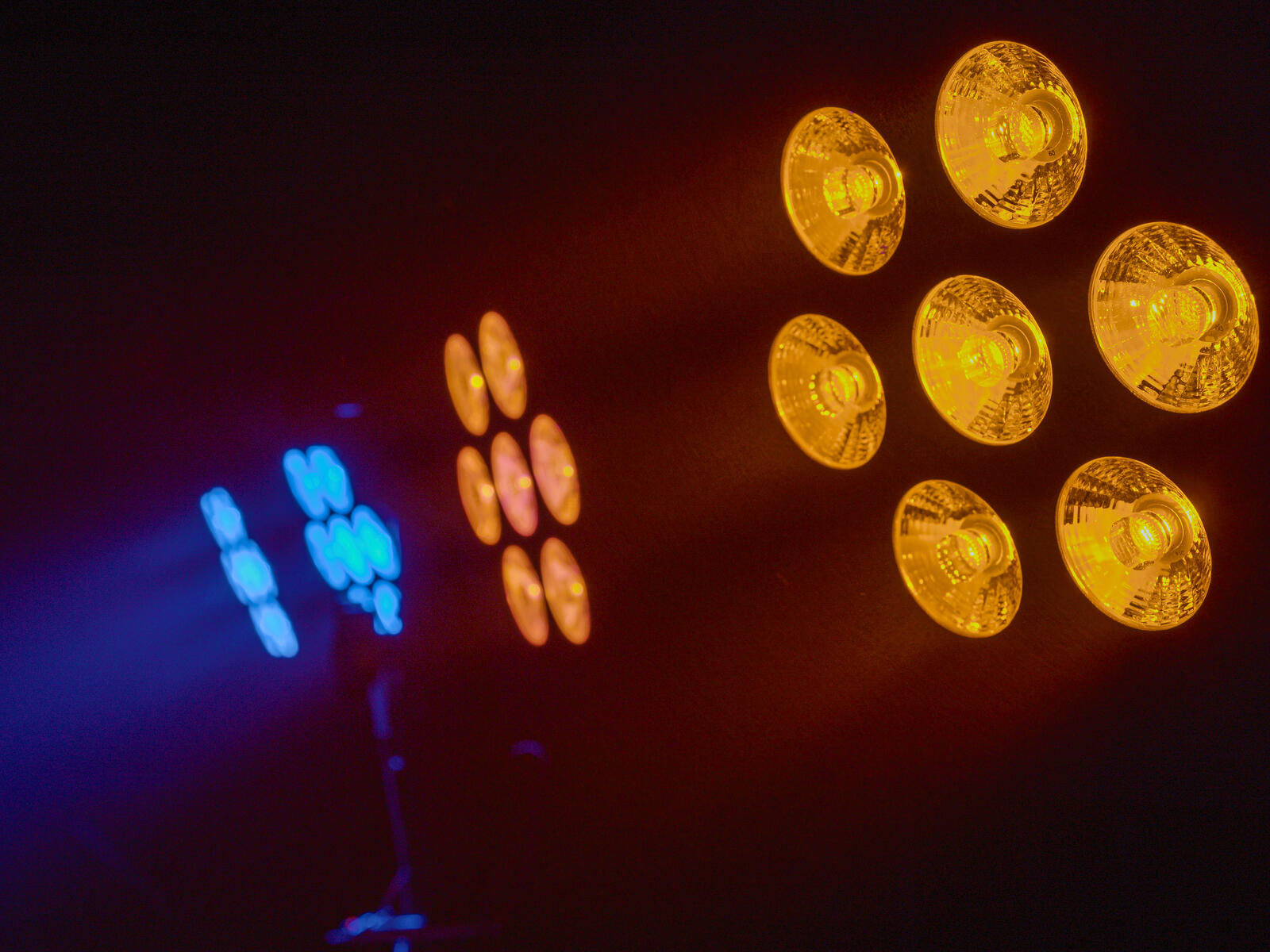

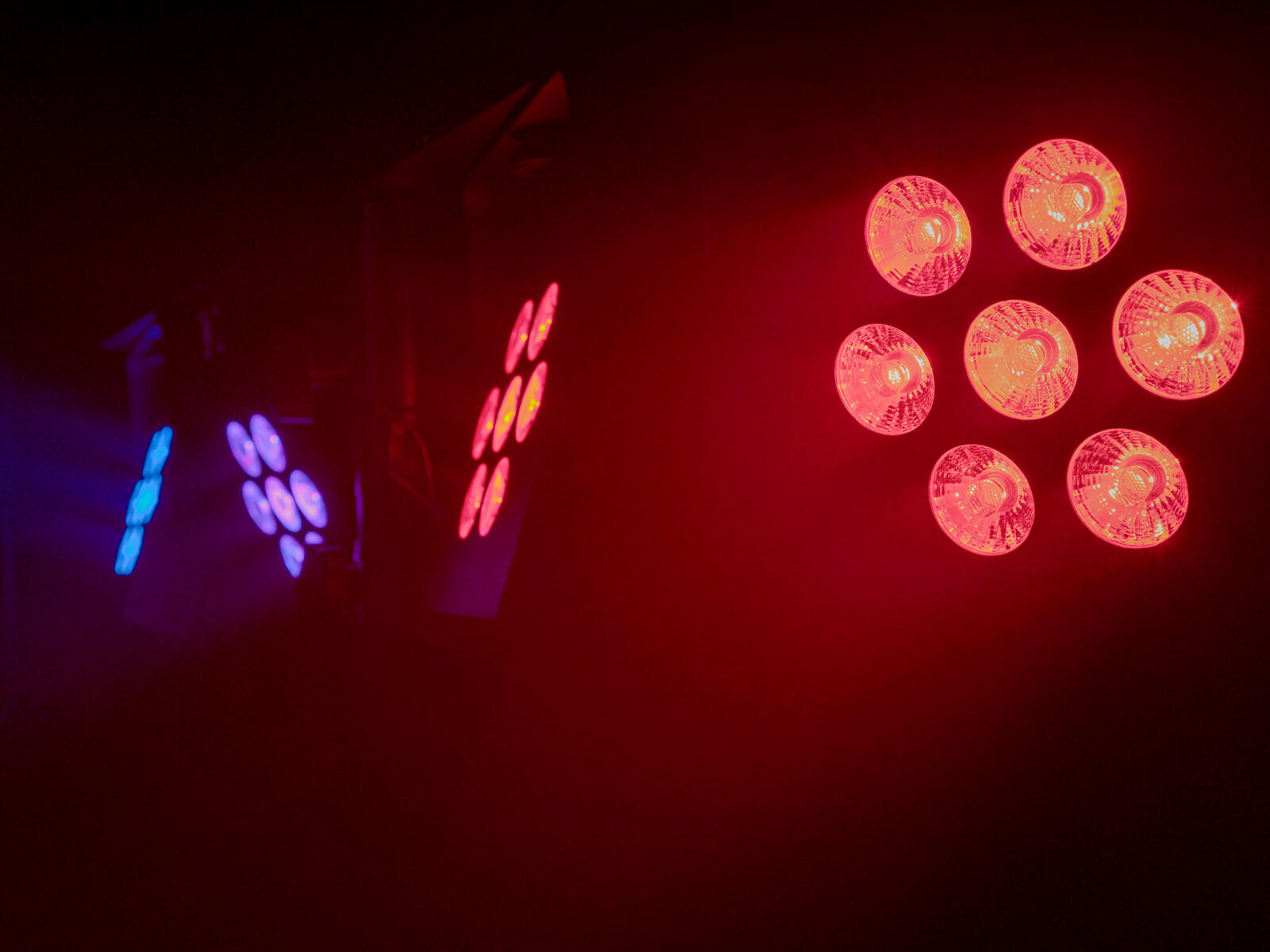

- 28 powerful LEDs 12 W SMD 5050 6in1 HCL RGBWA/UV (homogenous color mix)
4 spots controlled separately - With a beam angle of 15°
- Spot effect; UV effect; strobe effect
- Dimmer electronic; color fade adjustable; color change adjustable; color blend stepless; color selection; program selection; program speed adjustable; color macros
- Direct color selection for 20 preset colors
- 20 integrated show programs
- Control via stand-alone; sound to light via microphone; master/slave function; rotary dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); AirW; wireless Master/slave function; wireless remote control; wireless footswitch (optional)
- 3 buttons on the remote control for saving your own settings
- DMX fail mode (blackout; hold; full on; auto)
- Flicker-free
- Monochrome 4 digit 7-segment LED display
- With omega bracket
- Silent operation
- The device is cooled by passive convection cooling
- For application areas such as: Wedding/gala/events; clubs/dancing school; mobile djs / entertainer; restaurants, bars and hotels; rental
- Application possibility: Suspended; on stand
- Mains input and output for power linking up to 8 units

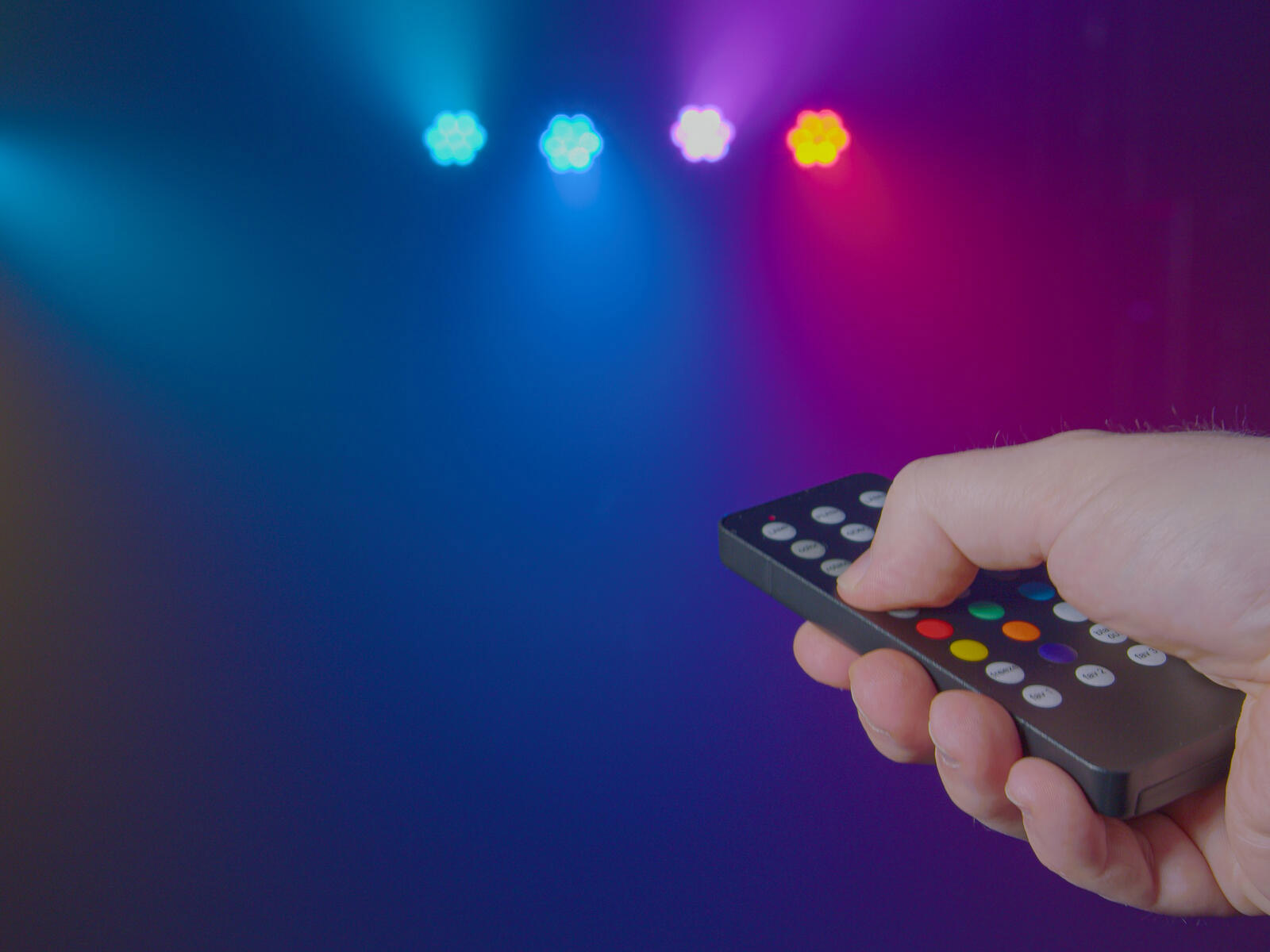

- Wireless remote control: operating range up to 30m in the open air
- AirW: operating range up to 70m with line-of-sight
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x declaration of conformity
- 1 x power cord
- 1 x remote control

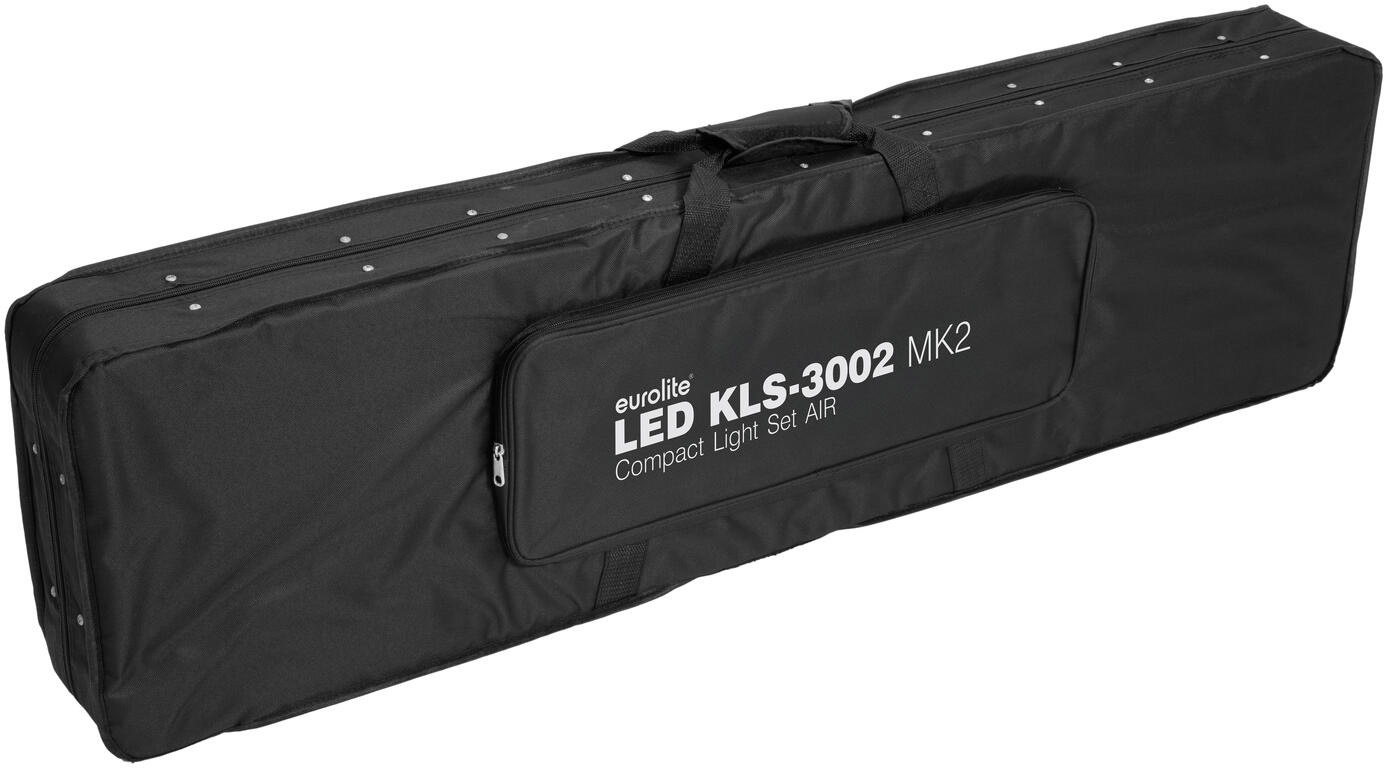

- 1 x bag
- 2 x omega bracket
- 4 x knurled screw
- 4 x washer
- 1 x battery
- 1 x terminating plug (power)
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 245 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable construction: | 3 x 1.0 mm² H05VV-F |
| Cable length: | 3 m |
| Power output: | 1 x P-Con (gray), mounting version Bypass 2 x IEC connector (F) mounting version fused |
| Device fuse: | 5 x 20 mm, T 5 A fuse replaceable |
| Power output fuse per channel: | 5 x 20 mm, T 5 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 28 x 12 W SMD 5050 6in1 HCL RGBWA/UV (homogenous color mix) |
| Flash rate: | 0.3 - 20 Hz |
| DMX channels: | 2; 4; 6; 10; 24; 28; 32; 34 |
| DMX input: | 1 x 3-pin XLR (M) mounting version 1 x USB, type A |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; sound to light via microphone; master/slave function; rotary dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); AirW; wireless Master/slave function; wireless remote control; wireless footswitch (optional) |
| Projection: | Flicker-free |
| Range: | Wireless remote control: range up to 30m in the open air AirW: range up to 70m with line-of-sight |
| Carrier frequency: | 2.4 GHz |
| Modulation: | GFSK |
| DMX fail mode: | Blackout; hold; full on; auto |
| Beam angle: | 15° |
| Beam angle (1/2 peak): | 15° multicolor |
| Beam angle (1/10 peak): | Spot 30° |
| Color temperature: | 5700K |
| Housing color: | Black matte |
| Attachment system: | Pivot: 1x Ø 28mm 2x omega bracket |
| Display type: | 1 x monochrome 4 digit 7-segment LED display |
| USB port: | 1 x type A |
| Material: | Metal, 1 mm, painted |
| Dimensions: | Length: 107.5 cm Depth: 5.5 cm Height: 28.7 cm |
| Weight: | 11.30 kg |
| Noise classification: | Class 0 (no noise at all) |
| Remote control | |
| Battery: | 1 x 12 V 23AE alkaline manganese included |
| Carrier frequency: | 433.92 MHz |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
