LEDVANCE STREETLIGHT FLEX SMALL RV25ST P 13W 727 WAL
€250.00 *
Availability:
Near-term available
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Item number: 101406160
EAN: 4058075552234
MPN: 4058075552234
Light distribution for general road lighting. Product features: Light distributions optimized... more
All information about the product:
"LEDVANCE STREETLIGHT FLEX SMALL RV25ST P 13W 727 WAL"
Light distribution for general road lighting. Product features:
- Light distributions optimized for streets of similar width to the pole height
- Very long lifetime (L90/B10): Up to 100,000 h (at 25 °C)

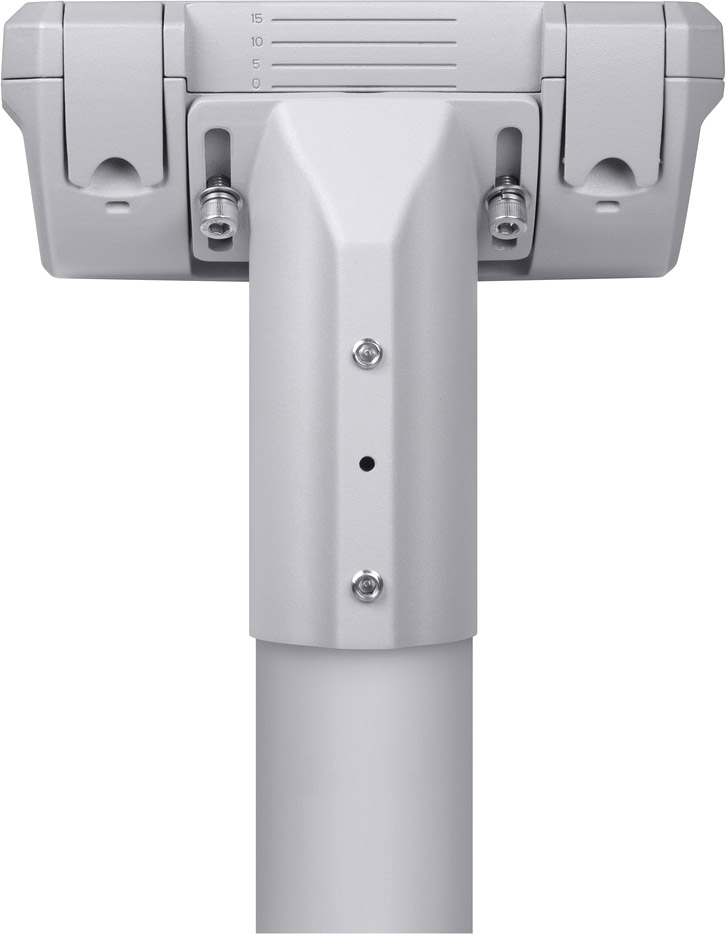

- Spigot for 48-60 mm poles included
- Additional reduction for 42 mm and adapter for 76 mm poles available separately
- Adjustable spigot for both side-entry and post-top installation
- +/- 15° tilt angle adjustment without opening the housing
- High luminous efficacy: up to 144 lm/W
- Operating temperature: -40...50 °C
- High surge protection: up to 10 kV (L/N-GND)
- Protection class: II
- Durable design and highest quality component selection for long lasting performance
- Quick and easy wiring, due to tool-free housing opening and push button terminal
- High light uniformity
- 3 light colors available, perfectly suited to illuminate highly diverse surroundings
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
- Automatic mains disconnection when opening the housing
- 5 years guarantee
- Outdoor use (IP66)
- M-, C- and P-class roads acc
- to EN 13201
- Parking
- Public areas
- Industry
- Equipment / Accessories: Spigot for 42 and 76 mm poles available separately
| Length: | 445 mm |
| Width: | 250 mm |
| Height: | 90 mm |
| Net weight: | 4400 g |
| LED type: | SMD |
| Nominal voltage: | 240 V |
| Nominal current: | 60 mA |
| Rated power: | 13 W |
| Energy consumption: | 13 kWh/1000 |
| Colour temperature: | 2700 K |
| Light colour: | Warm White |
| Beam angle: | 145 ° |
| Luminous flux: | 1650 lm |
| Colour rendering: | 70 CRI |
| Lifetime: | 10000 h |
| Switching cycles: | 100000 |
| Energy efficiency class: | D |
| Dimmable: | No |
| Material: | Aluminum |
| Colour: | White aluminum |
| EAN: | 4058075552234 |
