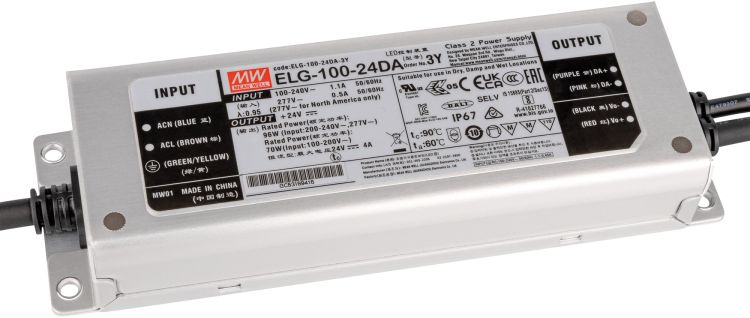

LED Power Supply IP67 100 W/24 V DC Dali Meanwell ELG-100-V-24DA 3Y

ELG-100 series is a 100 W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-100 operates from 100~360 V AC and offers models with 24 V. Thanks to the high efficiency up to 91 %, with the fanless design, the entire series is able to operate for -40?~ +90? case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this
series to fit both indoor and outdoor applications. ELG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting systemTechnical data:

Power Supply:	100-240 V AC 50/60 Hz
Output voltage:	24 V DC
Power Consumption:	100 W
Output Current (A):	4 A
Power Connector In:	Open End
Power Connector Out:	Open End
Protection Class:	II
Length (mm):	199 mm
Height (mm):	36 mm
Width (mm):	63 mm
Weight:	0.85 kg
IP Rating:	IP67
Housing:	Aluminium
Colour:	Gray
