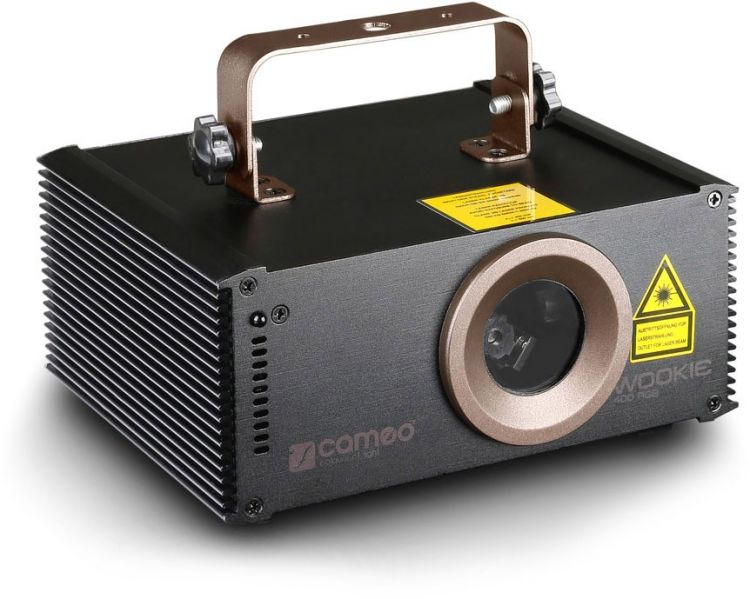

Cameo WOOKIE 400 RGB - Animation Laser 400 mW RGB
- Animation laser with high speed 5 Kpps stepper motor
- 60° scan angle
- Precision beams with minimum divergence
- 32 pattern presets
- DMX, sound and infrared control plus auto function
- Master, slave and standalone modes
- Display with 4 function keys for easy manual operation
- Rugged aluminium enclosure with key switch
- Includes handheld infrared remote
Projecting animations with red, green and blue color mixes the WOOKIE 400 RGB delivers an output of 400 mW from 3 mm beam diameter diode and DPSS lasers with no more than 2 mrad divergence.

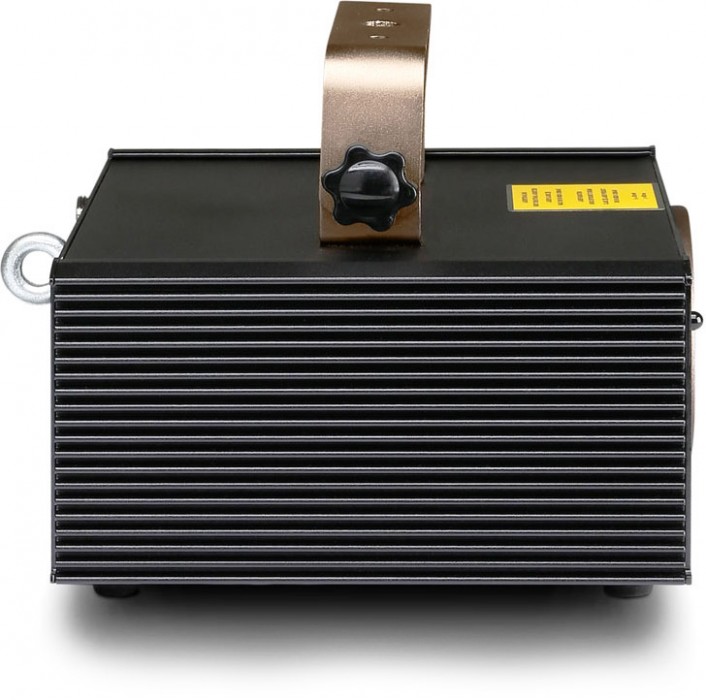

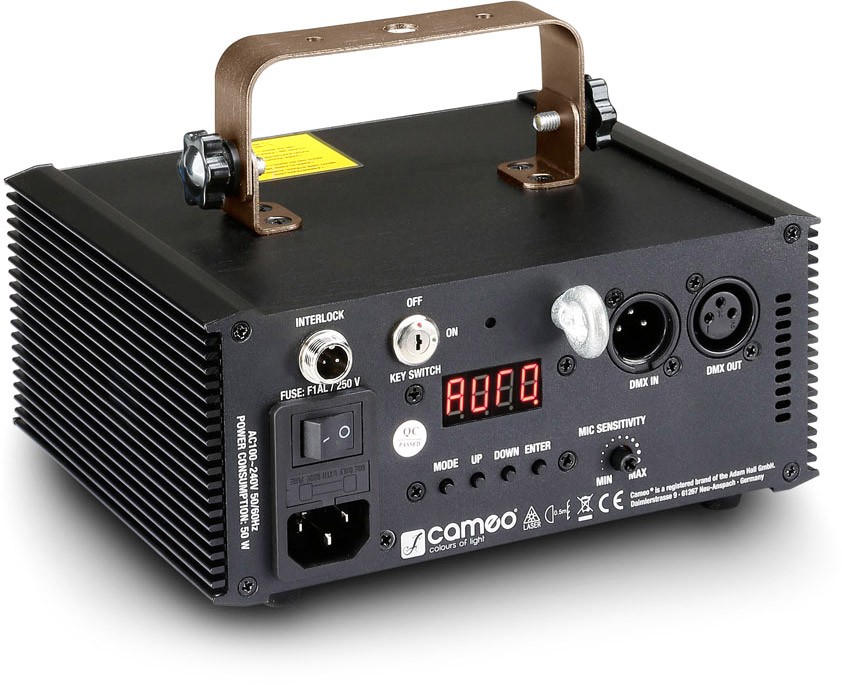

The Wookie Series animation laser lights provide vibrant, highly visible animations with precision beams, 32 lively pattern presets and high speed 5 Kpps stepper motors with a 60° scan angle. They are controllable via DMX in 3-channel and 9-channel modes, the integrated microphone with adjustable sensitivity and capable of master, slave and standalone operation. Each Wookie laser light sports a compact, high quality aluminium enclosure with 3-pin DMX connectors, IEC mains inlet and adjustable mounting bracket. A key switch prevents unauthorized use, and the bright display with four function keys allows easy manual operation. The Wookie Series laser lights come with a convenient infrared remote control.
Technical data:| Product type: | Laser |
| Total power: | 400 mW |
| Colour spectrum: | RGB |
| Wavelength: | 447 nm |
| Wavelength: | 532 nm |
| Wavelength: | 650 nm |
| Beam Data: | approx. 3 mm / 2 mrad divergence |
| Laser sources: | DPSS |
| Laser sources: | Laser diode |
| Laser Class: | 3B |
| Scanner: | High speed stepper motors, 5 kpps |
| Max. scan angle: | 60 ° |
| Operating modes: | Auto programs |
| Operating modes: | DMX 512 protocol |
| Operating modes: | sound control |
| DMX input: | XLR 3-pin male |
| DMX output: | XLR 3-pin female |
| DMX mode: | 3-channel |
| DMX mode: | 9-channel |
| Controls: | Enter |
| Controls: | Mode |
| Controls: | Value Down |
| Controls: | Value Up |
| Operating voltage: | 100 V AC - 240 V AC, 50 - 60 Hz |
| Power consumption: | 50 W |
| Power connector: | IEC power connector male |
| Housing material: | Metal |
| Cabinet colour: | Black |
| Width: | 180 mm |
| Height: | 90 mm |
| Depth: | 192 mm |
| Weight: | 2 kg |
