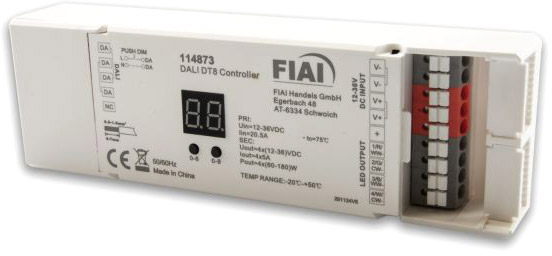

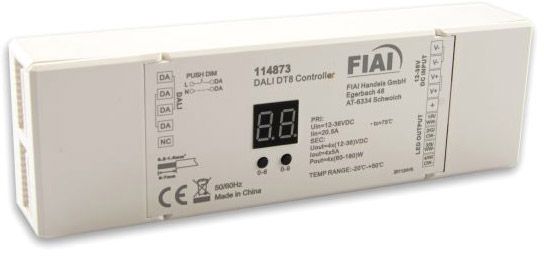

ISOLED DALI DT8 universal Push-Dim PWM controller, 4 channel, 12-36V 4x5A, 48V 4x3A

€94.41 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Currently not available

Item number: 111010915

EAN: 9009377090653

MPN: 114873

DALI DT8 universal Push-Dim PWM controller, 4 channel, 12-36V 4x5A, 48V 4x3A Nominal voltage:... more

All information about the product:

"ISOLED DALI DT8 universal Push-Dim PWM controller, 4 channel, 12-36V 4x5A, 48V 4x3A"

DALI DT8 universal Push-Dim PWM controller, 4 channel, 12-36V 4x5A, 48V 4x3A

Nominal voltage:	12-48V DC
Protection class:	IP20
Incl. illuminant:	No
Special features:	# Built-in DALI-2 interface, DALI DT8 device # 4 in 1 DALI DT8 LED controller # 4 universal device types in 1: SingleColor, CCT dynamic white, XY coordinate, RGBW ... can be set by the buttons # DALI DT8 device to control RGBW outputs or tunable white outputs via a single DALI address # Only 1 address required to control 4 outputs separately under SingleColor mode # 4 Channels constant voltage output # Control of four PWM outputs via DALI device type 8 # Supports DT8 device commands, compatible with DALI masters that support DT8 commands # Configuration via DALI master USB interface # Numeric digital display for setting DALI address manually # Compatible with universal AC push switch

Further links

Further products by ISOLED
Information about the manufacturer

Obligation to provide information on product safety (GPSR)

Manufacturer:
ISOLED FIAI Handels GmbH
Egerbach 48
AUT-6334 SCHWOICH
[email protected]
Safety instructions and warnings

Safety instructions and warnings (GPSR)

Specific safety instructions that apply to the product can be found in the operating instructions for the product.
