LEDVANCE MANUAL CONTROL UNIT TOUCH DALI-2 TW

€106.47 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: approx. 2-3 weeks

Delivery time: approx. 2-3 weeks

Item number: 101419715

EAN: 4058075837560

MPN: 4058075837560

LEDVANCE MANUAL CONTROL UNIT TOUCH DALI-2 TW product advantages Simple, intuitive operation... more

All information about the product:

"LEDVANCE MANUAL CONTROL UNIT TOUCH DALI-2 TW"

LEDVANCE MANUAL CONTROL UNIT TOUCH DALI-2 TW

product advantages

Simple, intuitive operation
Manual dimming, switching, and saving of light settings
Individual adjustment of brightness level and color temperature
Behavior after power failure can be set
High-quality glass cover

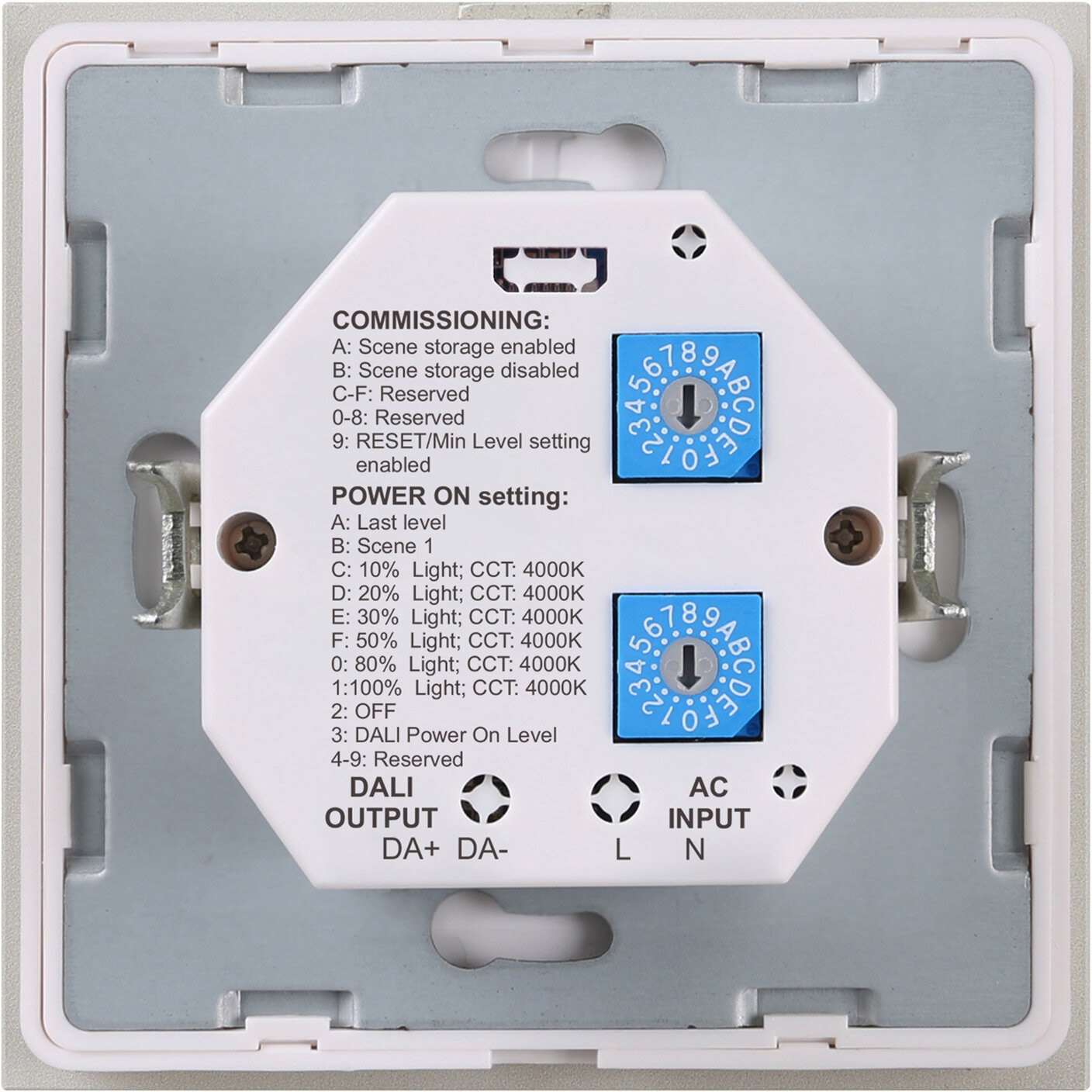

Mains voltage operation (active mode) or DALI bus voltage supply (passive mode)
Optional frame for surface mounting available
Compatible with LEDVANCE VIVARES DALI light management system (LEDVANCE DALI luminaires)

Areas of application

product features

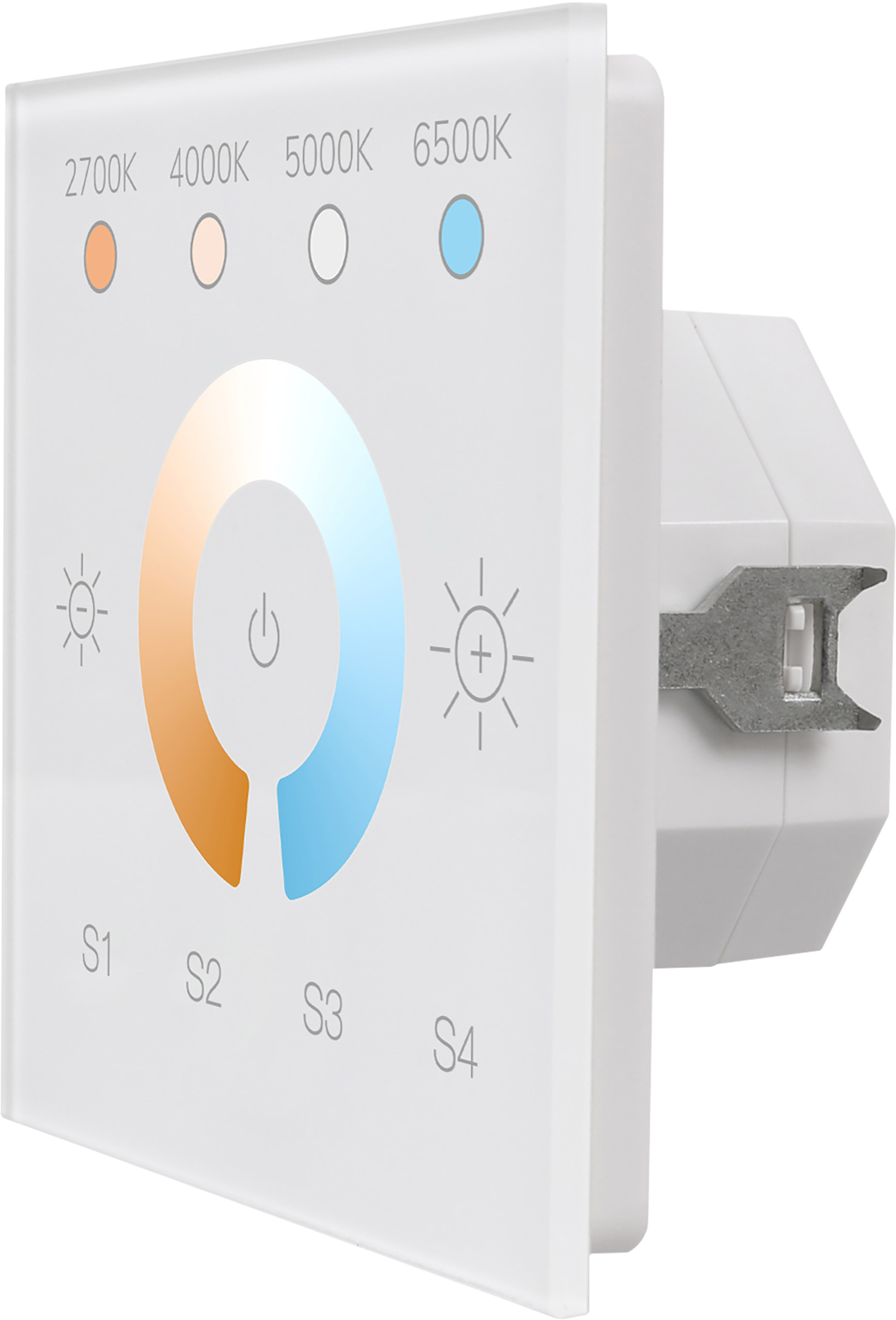

DALI-2 control unit for installation in standard flush-mounted boxes

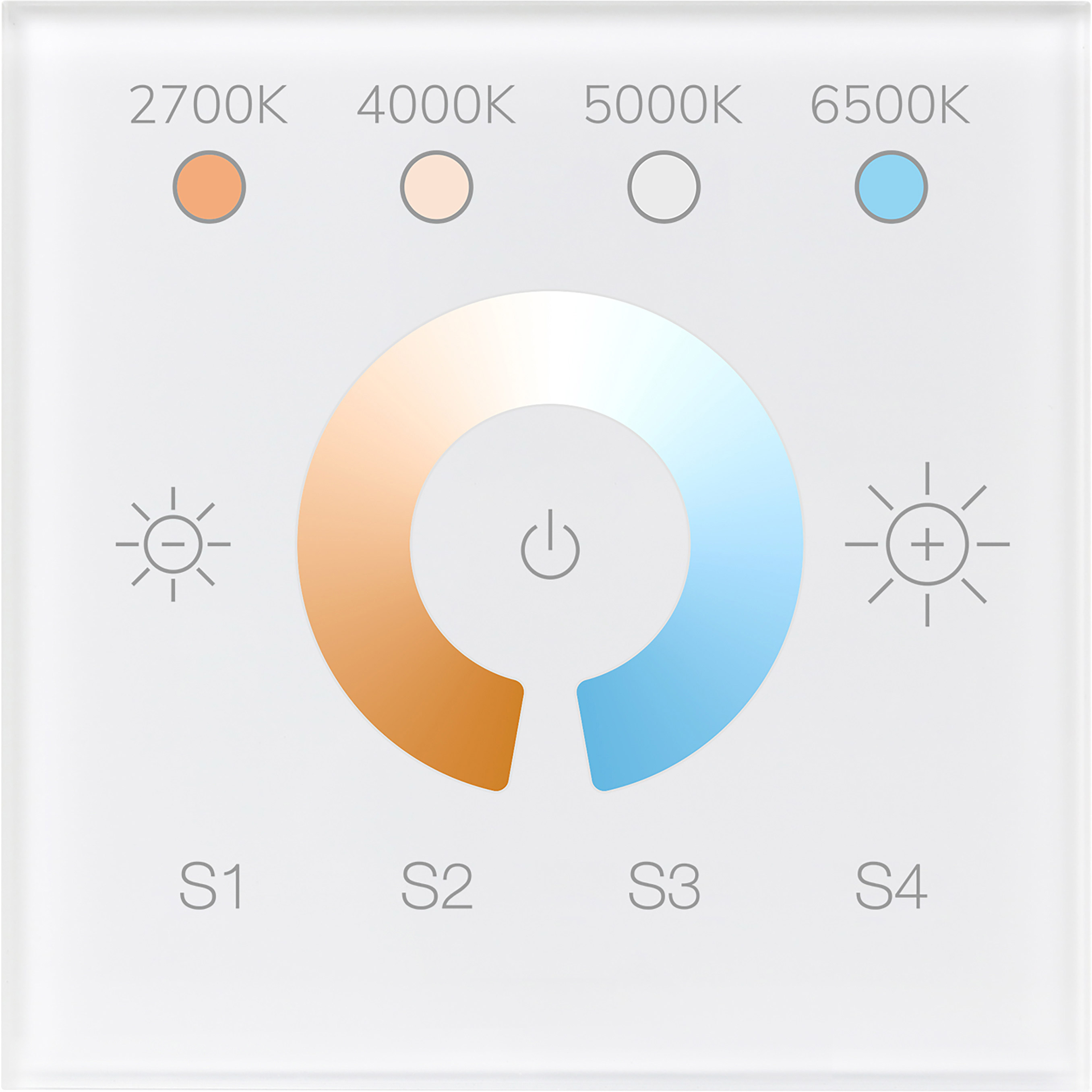

Touch interface for manual lighting control
Up to 4 control units can be connected in parallel to set up multiple control stations
Automatic synchronization between the control panels
Number of DALI luminaires per control unit: up to 25
DALI control cable length: up to 300 m

References / References

Technical data:

Length:	41 mm
Width:	86 mm
Height:	41 mm
Weight:	200 g
Nominal voltage:	240 V
Nominal power:	2,70 W
Energy consumption:	2,70 kWh/1000
Dimmable:	Yes
Switching cycles:	30000
Protection class:	IP20
Operating method:	DALI
With mounting plate:	yes
Operation by Bluetooth:	no
Supporting protocol for Zigbee:	no
Compatible with Apple HomeKit:	no
IFTTT support available:	yes
