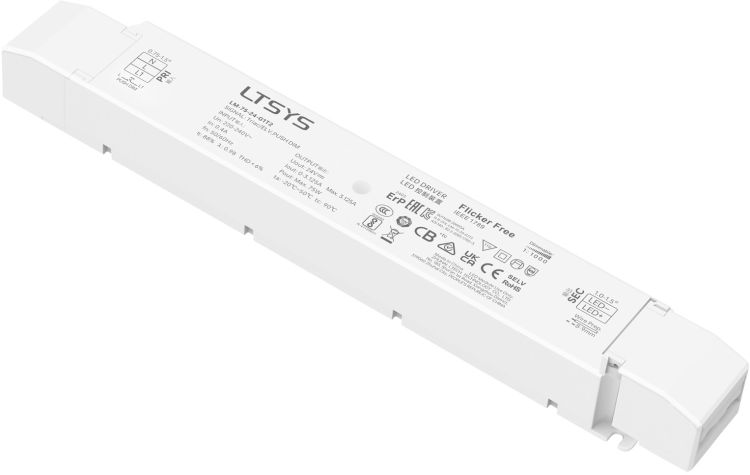

LTECH LED Driver TRIAC 75 W - 24 V

This 75 W, 24 V LED Driver TRIAC has a soft-on and fade-in dimming function to enhance visual comfort. It offers flicker-free dimming from 0 to 100%. In addition to support for TRIAC (leading edge), it supports ELV (trailing edge) and Push DIM. As well as thermal management technology that protects the life of the LED driver, it has built-in safety features including overheat, over voltage, overload and short circuit protection with automatic recovery. Thanks to a dismountable end cap, the length of the V0 flame-retardant housing is adjustable.Technical data:

Control Mode:	Push-dim / Triac (Phase cut dimming)
Dimmable:	Yes
Power Supply:	220-240 V AC 50/60 Hz
Maximum Output Current (A):	3.125 A
Power Connector In:	Open End
Power Connector Out:	Open End
Length (mm):	293 mm
Height (mm):	30 mm
Width (mm):	43 mm
IP Rating:	IP20 (indoor use only)
Colour:	White
Maximum Ambient Temperature:	50 °C
Minimum Ambient Temperature:	-20 °C
Maximum Surface Temperature:	85 °C
