LEDVANCE STREETLIGHT AREA SMALL RV20ST 45W 765 RV20ST GY

Preview: LEDVANCE STRASSENLEUCHTE BEREICH KLEIN RV20ST 45W 765 RV20ST GY

LEDVANCE STRASSENLEUCHTE BEREICH KLEIN RV20ST 45W 765 RV20ST GY

€36.45 *

incl. tax, plus shipping costs

Express delivery possible

Availability:

Low stock; Delivery time: 1-3 days

Delivery time: 1-3 days

Item number: 101415560

EAN: 4058075725157

MPN: 4058075725157

LEDVANCE STREETLIGHT AREA SMALL RV20ST 45W 765 RV20ST GY Fitting a broad range of street and... more

Back to the overview

All information about the product:

"LEDVANCE STREETLIGHT AREA SMALL RV20ST 45W 765 RV20ST GY"

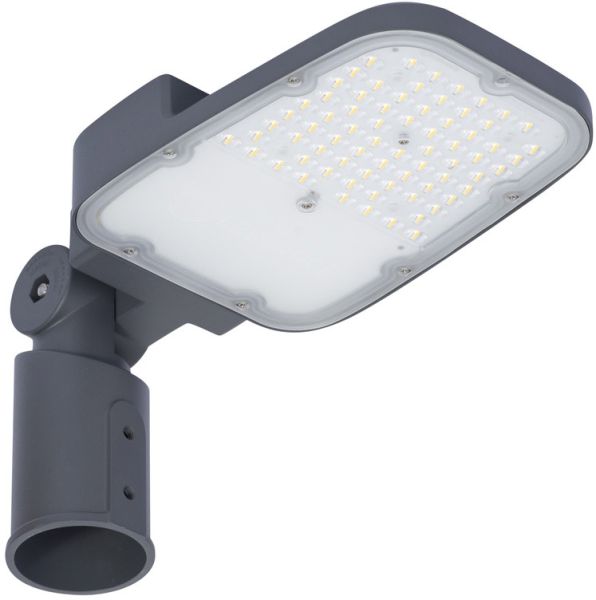

LEDVANCE STREETLIGHT AREA SMALL RV20ST 45W 765 RV20ST GY

Fitting a broad range of street and area lighting applications. Product features: Light distributions optimized for streets of similar width to the pole height. Spigot included, suitable for 48…60 mm diameter poles. Adjustable spigot for both side-entry and post-top installation. +/- 30° tilt angle adjustment without opening the housing. High luminous efficacy: up to 135 lm/W. Operating temperature: -30...50 °C. Long lifetime L70: up to 70,000 h (at 25 °C). High surge protection: up to 10 kV (L/N-PE). Product benefits: Functional and minimalistic design. Low maintenance and operation costs due to long lifetime of LED. 5 years guarantee. Areas of application: Outdoor use (IP66). M-, C- and P-class roads acc. to EN 13201. Car parks. Area lighting.

Technical data:

Length:	448 mm
Width:	172 mm
Height:	73 mm
Weight:	1440 g
Nominal voltage:	100-240 V
Nominal power:	45 W
Nominal current:	186 mA
Energy consumption:	45 kWh/1000
Colour temperature:	6500 K
Luminous flux:	6075 lm
Luminous efficacy:	135 lm/W
Colour rendering:	70-79 CRI
Dimmable:	No
Lifetime:	70000 h
Protection class:	IP66
Light source type:	LED not exchangeable
Material:	Aluminium
Colour:	Grey
Incl. illuminant:	Yes
Mounting method:	Post top
Lamp holder:	None
Surface protection:	Powder coating
Material cover:	Plastic, opal
Voltage type:	AC
With control gear:	yes
Exchangeable control gear:	yes
Dimming phase cut-off (trailing edge):	no
Dimming phase cut-on (leading edge):	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Light distributor:	Focal lens
Max. number of luminaires per miniature circuit breaker B16 (MCB):	60
Max. number of luminaires per miniature circuit breaker C16 (MCB):	64
Adjustable optics:	no
Impact strength:	IK08
Protection class according to IEC 61140:	I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:	no
Rated ambient temperature according to IEC 62722-2-1:	+50°C
Remote control:	None
With radio control:	no
Constant light output (CLO):	no
With light regulation program control:	no
With connection cable:	yes
Cable length:	0,5 m
Power factor:	0.90
Type of wiring:	Ending
Number of poles:	3
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	yes
Operation by Bluetooth:	no
With light sensor:	no
