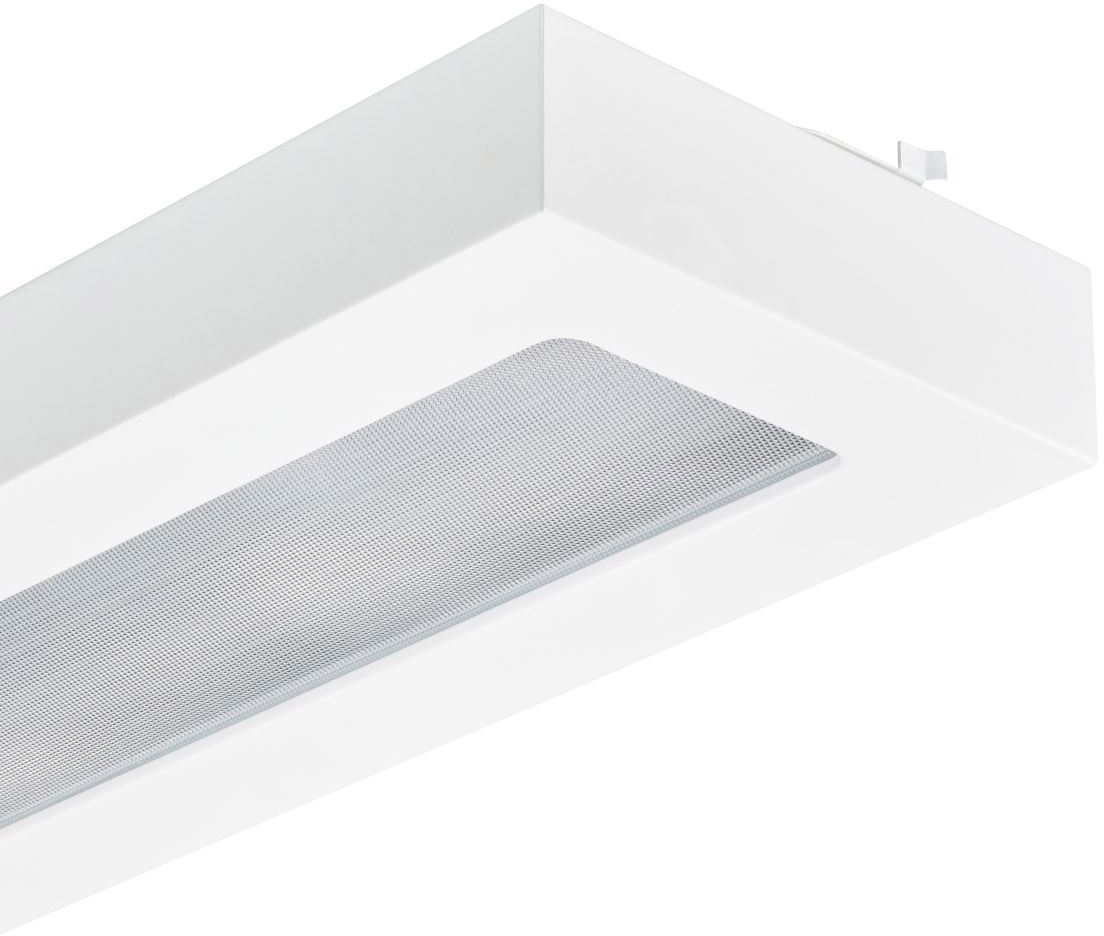

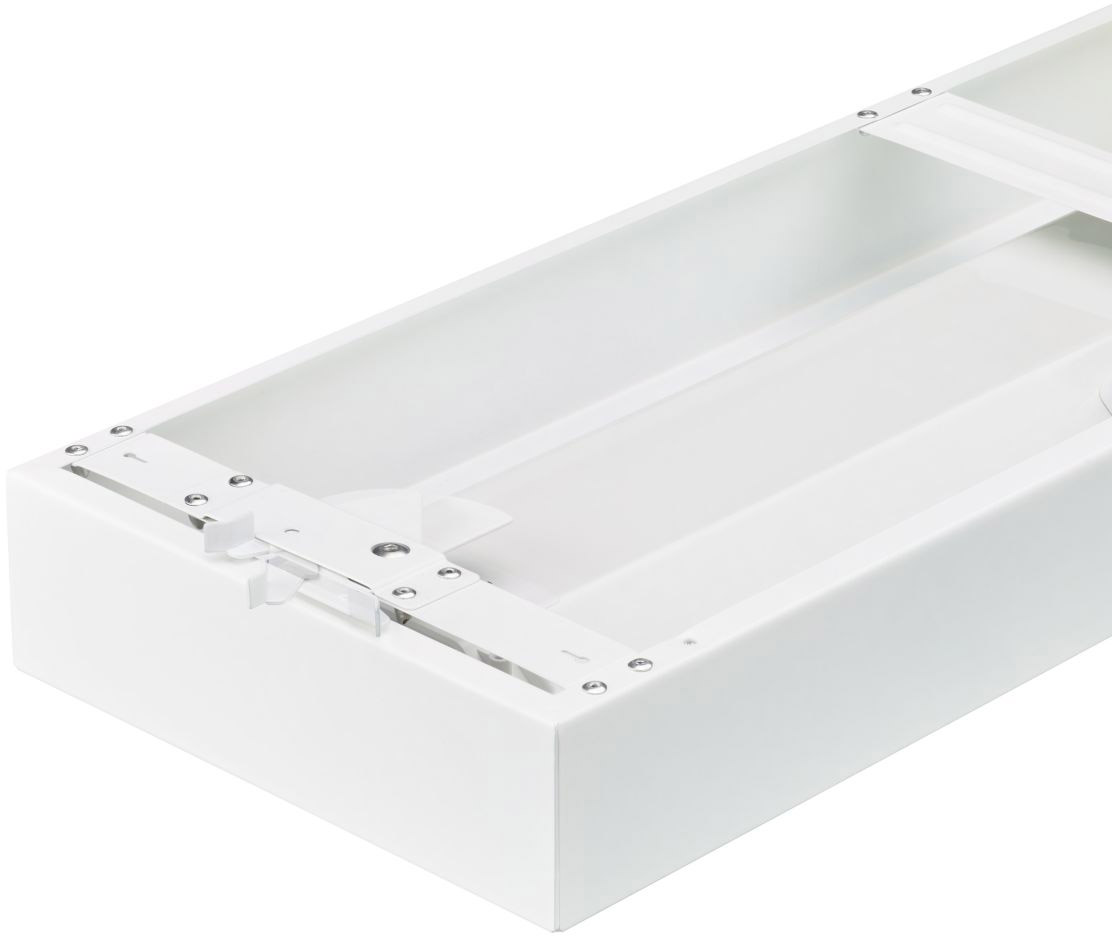

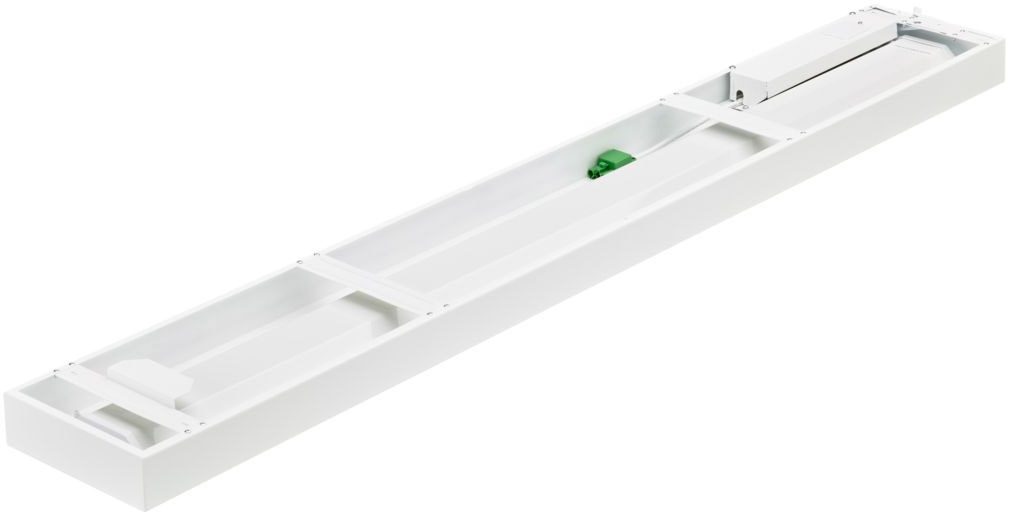

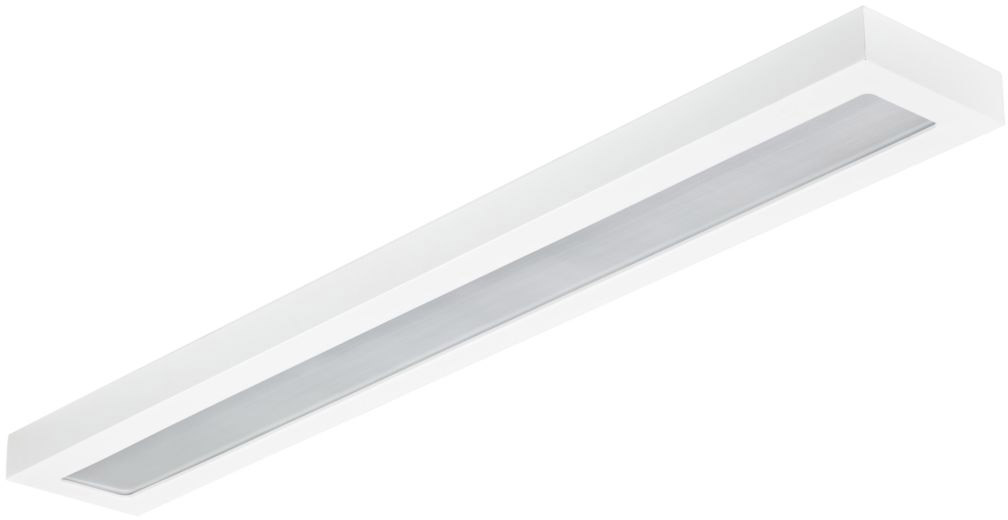

PHILIPS CoreLine surface-mounted, All-in, 31 W, 22 W, 1500x200 mm, 2800 lm, 3400 lm, 4000 lm, 3000 K
€228.45 *
Availability:
Delivery time: approx. 2-3 weeks
Delivery time: approx. 2-3 weeks
Item number: 100427285
EAN: 8719514512368
MPN: 911401882281
PHILIPS CoreLine surface-mounted, All-in, 31 W, 22 W, 1500x200 mm, 2800 lm, 3400 lm, 4000 lm,... more
All information about the product:
"PHILIPS CoreLine surface-mounted, All-in, 31 W, 22 W, 1500x200 mm, 2800 lm, 3400 lm, 4000 lm, 3000 K"
PHILIPS CoreLine surface-mounted, All-in, 31 W, 22 W, 1500x200 mm, 2800 lm, 3400 lm, 4000 lm, 3000 K

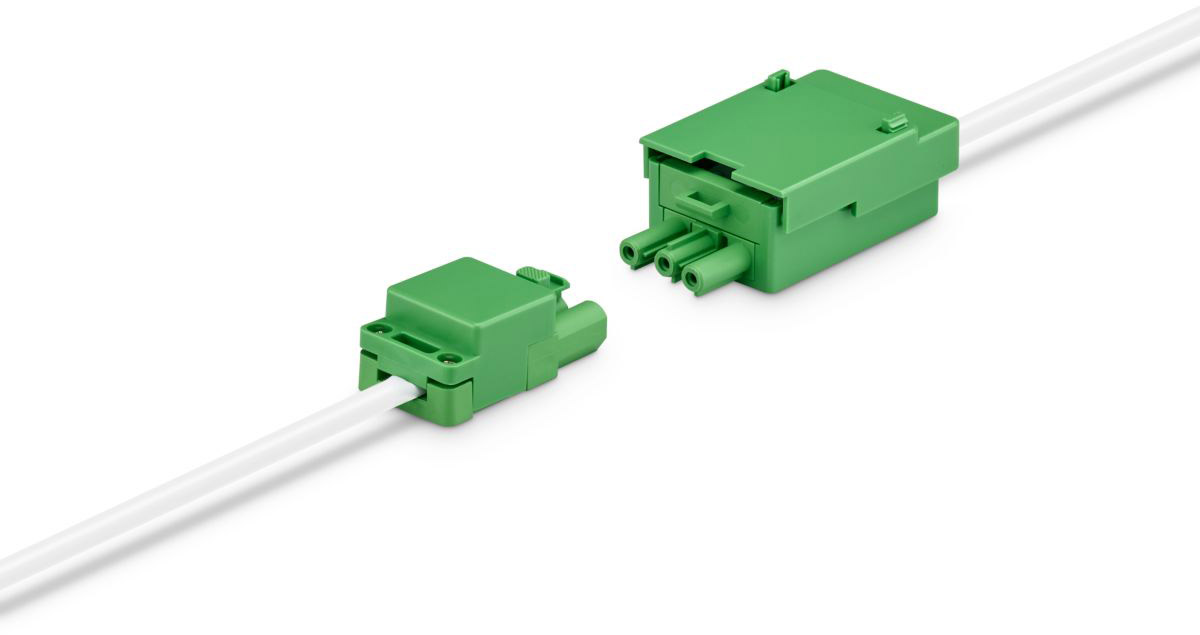

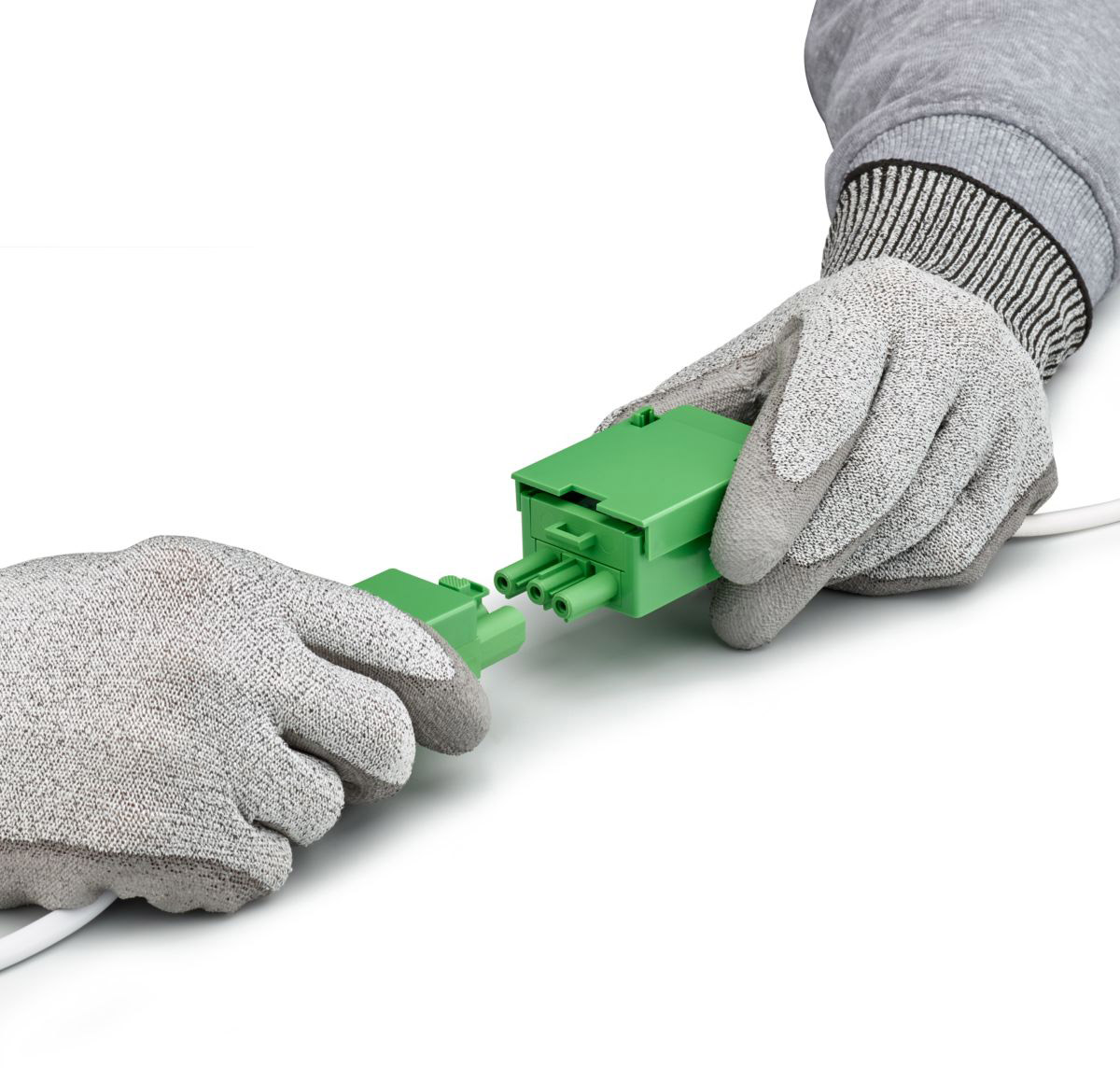

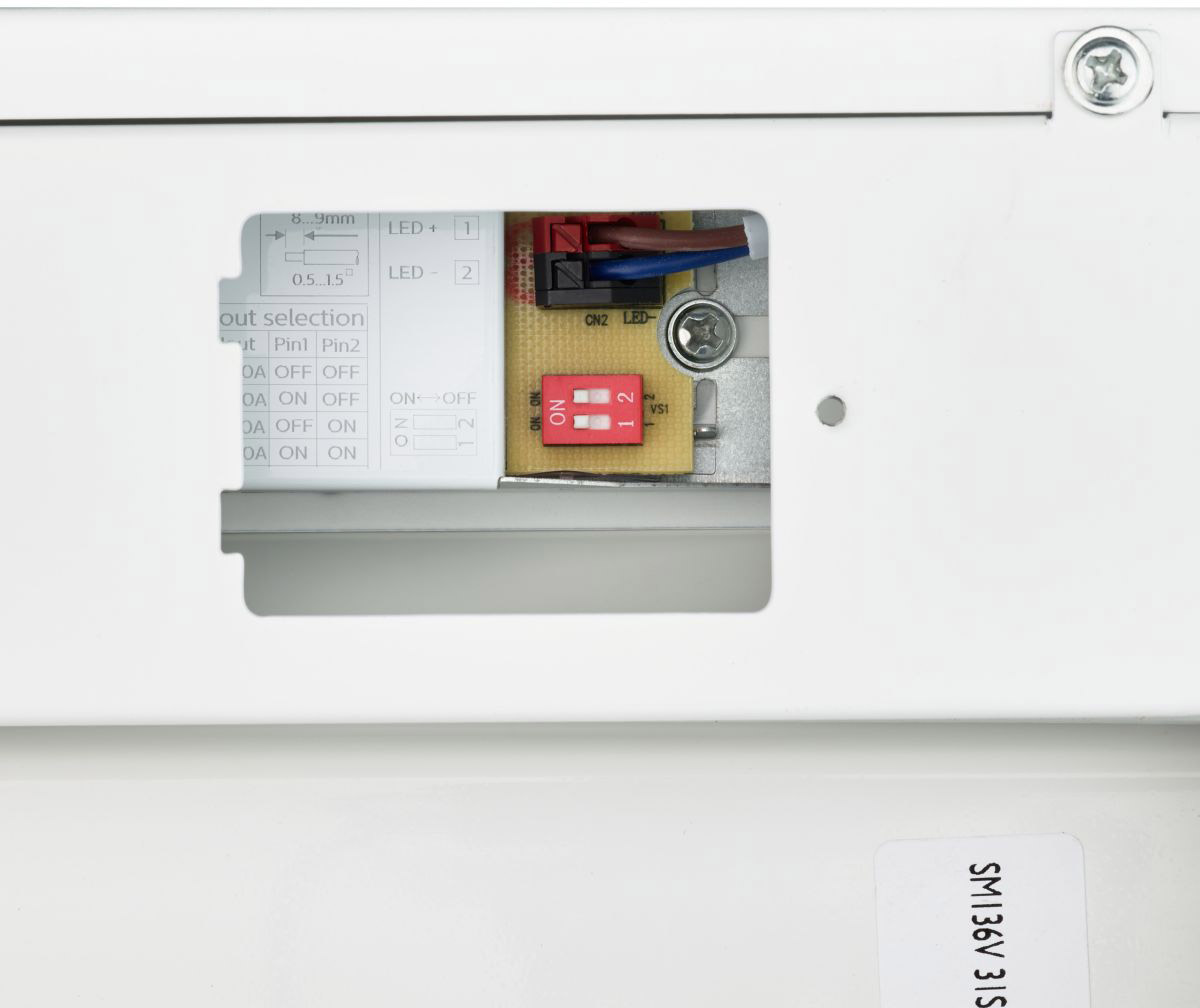

1500x200 mm, Steel, White, Signal white (RAL9003), Power supply unit (On/Off), All-in, Multi Lumen, 2800 lm, 3400 lm, 4000 lm, 31 W, 22 W, 130 lm/W, 3000 K, (0.43, 0.40) SDCM =3, Beam angle 100°, Microprismatic lens, Polymethyl methacrylate, IP20/44 | Finger-protected; wire-protected, splash-proof, IK03 | 0.3 J, Safety class I, Cable with connector 3-pole, Connection unit 3-pole

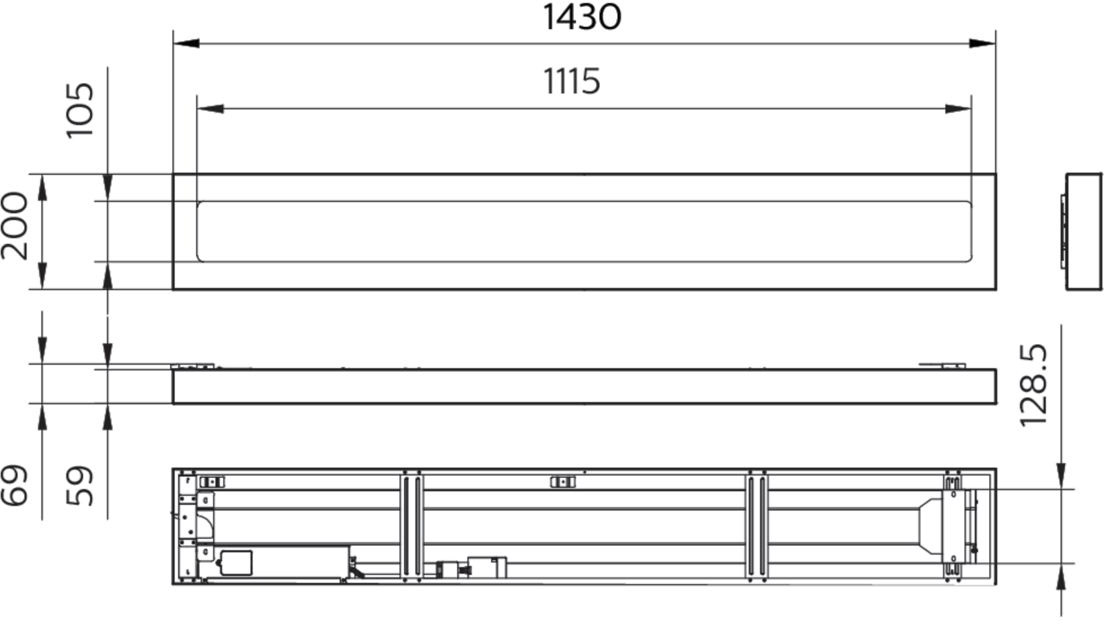

Technical data:| Length: | 1430 mm |
| Width: | 200 mm |
| Height: | 68,50 mm |
| Nominal voltage: | 220-240 V |
| Nominal power: | 31 W |
| Nominal current: | 100-150 mA |
| Energy consumption: | 31 kWh/1000 |
| Colour temperature: | 3000 K |
| Light colour: | White |
| Beam angle: | > 80° - Extreme wide beam |
| Luminous flux: | 4000 lm |
| Luminous efficacy: | 130 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | No |
| Lifetime: | 100000 h |
| Protection class: | IP20 |
| Energy efficiency class: | D |
| Light source type: | LED not exchangeable |
| Material: | Steel |
| Colour: | White |
| Incl. illuminant: | Yes |
| Suitable for wall mounting: | no |
| Suitable for number of light sources: | 1 |
| Operation by Bluetooth: | no |
| Compatible with Casambi: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
| Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): | no |
| Surface protection housing: | Powder coating |
| Material cover: | Plastic, structured |
| Type of grid: | None |
| Voltage type: | AC |
| Suitable for suspended mounting: | no |
| Type of control gear: | LED operating device current-controlled |
| With control gear: | yes |
| Exchangeable control gear: | no |
| Suitable for ceiling mounting: | yes |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Suitable for built-in mounting: | no |
| Light distributor: | Diffuser lens/optic/panel |
| Light distribution: | Symmetric |
| Colour consistency (McAdam ellipse): | SDCM3 |
| Light outlet: | Direct |
| Suitable for surface mounting: | yes |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): | 85% |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): | 5% |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 35 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 60 |
| Impact strength: | IK03 |
| Suitable for light line configuration: | no |
| Protection class according to IEC 61140: | I |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Rated ambient temperature according to IEC 62722-2-1: | 25°C |
| Suitable for emergency lighting: | no |
| Emergency power supply integrated: | no |
| With movement sensor: | no |
| With light sensor: | no |
| Covering of the luminaire with thermally insulating material possible: | yes |
| With air slots: | no |
| Filament test according to IEC 60695-2-11: | 650 °C - 30 s |
| Suitable for workplace according to EN 12464-1: | no |
| Flickering value Pst LM: | 1 |
| Power factor: | 0.9 |
| Stroboscope effect value SVM: | 0.4 |
| Constant light output (CLO): | no |
| Type of wiring: | Suitable for loop-through wiring |
| Number of poles: | 3 |
| Conductor cross section: | 0.75mm² |
| Total harmonic distortion: | 20 |
| Photobiological safety according to EN 62471: | RG0 |
| Unified Glare Ratio (UGR): | 25 |
| Colour of light adjustable: | No |
| Luminous flux adjustable: | Positions |
| Beam angle adjustable: | No |
