SLV BATTEN P 1200 52, 830/840/850 WH EM 3H

The BATTEN P light family from the SLVtec range offers powerful and flexible LED lighting solutions that are ideal for the energy-efficient refurbishment of existing T8/T5 fluorescent lamp installations. With a light output of up to 150lm/W and a lifespan of 100,000 hours (L80B10), they provide a durable, economical solution for commercial applications such as offices, schools, retail and infrastructure. The lights are available in three lengths (600, 1200, 1500 mm) and have an integrated multi-lumen and multi-CCT function: four output levels and three light colours (3,000/4,000/5,000 K) can be set on site using a DIP switch. Versions with integrated DALI control, sensors or emergency module (3h) are also available for maximum flexibility in lighting design. With its robust aluminium and polycarbonate (IP20, IK04) housing and simple assembly, the BATTEN P is ideal for demanding projects. An optional accessory 2m steel cable suspension kit completes the system and allows flexible mounting options such as ceiling or pendant mounting.Technical data:

Product name:	BATTEN P 1200 52 830/840/850
Colour:	white
electrical power:	20 W
Luminous Flux:	2985 / 5258 lm
Colour temperature:	3000/4000/5000 Kelvin
CRI:	80
CCT Switch:	Yes
IP Code:	IP20
Assembly:	Surface
Assembly details:	Ceiling
Shape:	rectangular

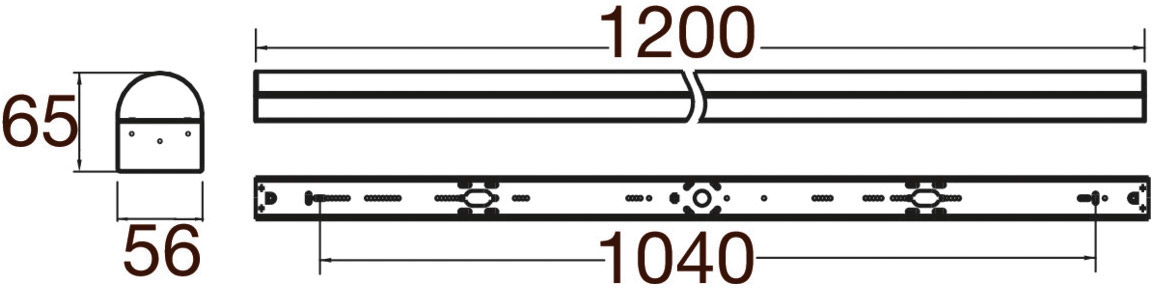

Length:	120 cm
Width:	5.6 cm
Height:	6.5 cm
Shock resistance category:	IK04
Primary nominal voltage:	220-240V ~0/50/60 Hz
Secondary power / secondary voltage:	200-350mA
TC point (°C):	80 °C
Ambient temperature:	-20 - 40 °C
Net weight:	0.75 kg
Weighted consumption:	20 kWh/1.000h
Batteries required:	LI_ON_LI_PO|Lithium-ion/lithium-polymer (LiPo)
Service life:	100000 h
Number of lights on LS B16A:	28 St.
Number of lights on LS C16A:	47 St.
Inrush current level:	17.7 A
Inrush current duration:	224 μs
Risk group:	1
