Cameo HYDRABEAM 4000 RGBW - Lighting System with 4 Ultra-fast 32 W RGBW Quad LED Moving Heads
€659.46 *
Availability:
Near-term available
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Item number: 131001380
EAN: 4049521241376
MPN: CLHB4000RGBW
Lighting System with 4 Ultra-fast 32 W RGBW Quad LED Moving Heads Lighting system with 4... more
All information about the product:
"Cameo HYDRABEAM 4000 RGBW - Lighting System with 4 Ultra-fast 32 W RGBW Quad LED Moving Heads"
Lighting System with 4 Ultra-fast 32 W RGBW Quad LED Moving Heads
- Lighting system with 4 individually controllable moving heads
- Ultra fast 540° pan and 270° tilt
- Powerful 32 W RGBW Quad LEDs
- Universal mounting options
- 2 Omega brackets and pole mount adapter included
- Blue and grey Power Twist plus 3 and 5-Pin DMX connectors
- Easy daisy chaining and power linking
- 5 DMX modes, sound activation and automatic operation
- 16 exciting auto-run programs
- 4-button LC colour display for intuitive configuration

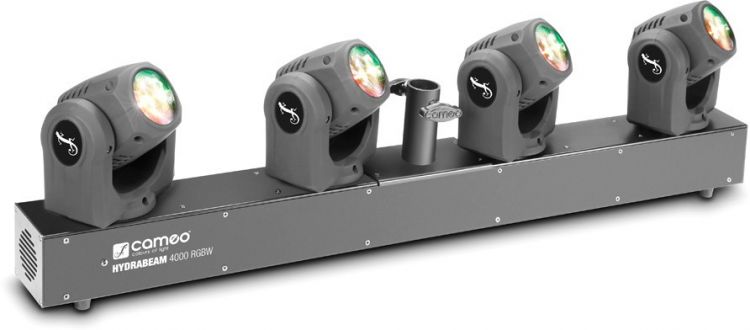

The Cameo Hydrabeam 4000 features four individually controllable moving heads on a 100 cm (3.28 ft.) bar with ultra fast 540° pan and 270° tilt. They are equipped with powerful 32 W quad LEDs for brilliant, uniform colour mixes and project razor sharp beams with an extremely focused 2.5° spread.
The Hydrabeam 4000 provides 5 modes of DMX control, sound activation and automatic operation with 16 exciting built-in programs. In addition, the fixture permits smooth dimming and includes a high-speed strobe function firing a maximum of 20 intense flashes per second.
The compound ABS and metal construction integrates a low-noise fan and a 4-button colour display that permits easy, intuitive configuration and manual operation. 3 and 5-pin DMX inputs and outputs plus the blue and grey Power Twist connectors enable convenient and versatile daisy-chaining. The Hydrabeam 4000 comes with dual Omega brackets and a pole adapter virtually covering all mounting options.
Technical data:| Product type: | LED Moving Lights |
| Type: | LED Moving Lights |
| Colour spectrum: | RGBW |
| Number of LEDs: | 4 |
| Average LED lifetime: | 50000 hrs. |
| LED type: | 32 W |
| Refresh rate: | 6000 Hz |
| Dispersion: | 2.5 ° |
| DMX input: | XLR 3-pin male |
| DMX input: | XLR 5-pin male |
| DMX output: | XLR 3-pin female |
| DMX output: | XLR 5-pin female |
| RDM: | no |
| Protocols: | USITT DMX-512 |
| DMX mode: | 10-channel |
| DMX mode: | 19-channel |
| DMX mode: | 32-channel |
| DMX mode: | 56-channel |
| DMX mode: | 6-channel |
| DMX Functions: | Auto programs |
| DMX Functions: | colour change |
| DMX Functions: | Dimmer |
| DMX Functions: | PAN |
| DMX Functions: | strobe |
| DMX Functions: | TILT |
| Wireless DMX: | no |
| PAN movement: | 540 |
| TILT movement: | 270 |
| High Speed Strobe: | 1 - 20 Hz |
| Standalone modes: | Auto run |
| Standalone modes: | sound control |
| Controls: | Enter |
| Controls: | LCD display |
| Controls: | Mode |
| Controls: | Value Down |
| Controls: | Value Up |
| Indicators: | colour LC display |
| Operating voltage: | 100 V AC - 240 V AC, 50 - 60 Hz |
| Power consumption: | 220 W |
| How many devices can be connected (110 V): | 3 |
| How many devices can be connected (240 V): | 5 |
| Fuse: | F3AL / 250 V |
| Power connector: | Blue Power Twist, male |
| Power supply connection: | Grey Power Twist, female |
| Max. output current: | 11 A |
| Housing material: | ABS plastic |
| Housing material: | Metal |
| Cabinet colour: | Black |
| Protection class IP: | IP20 |
| Cooling: | low-noise fan |
| Illuminance: | blue 9600lx @ 1m |
| Illuminance: | green 42400lx @ 1m |
| Illuminance: | red 17900lx @ 1m |
| Illuminance: | white 67200lx @ 1m |
| Maximum Ambient Temperature: | 0 - 40° C °C |
| Width: | 90 mm |
| Height: | 270 mm |
| Depth: | 1000 mm |
| Weight: | 11,6 kg |
