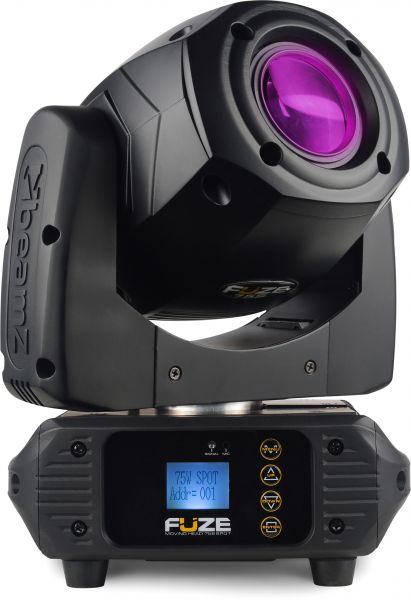

beamZ Fuze75S Spot 75W LED Moving Head

beamZ Fuze75S LED Spot Moving Head – Compact 75 W Moving Head with Gobos and Prism

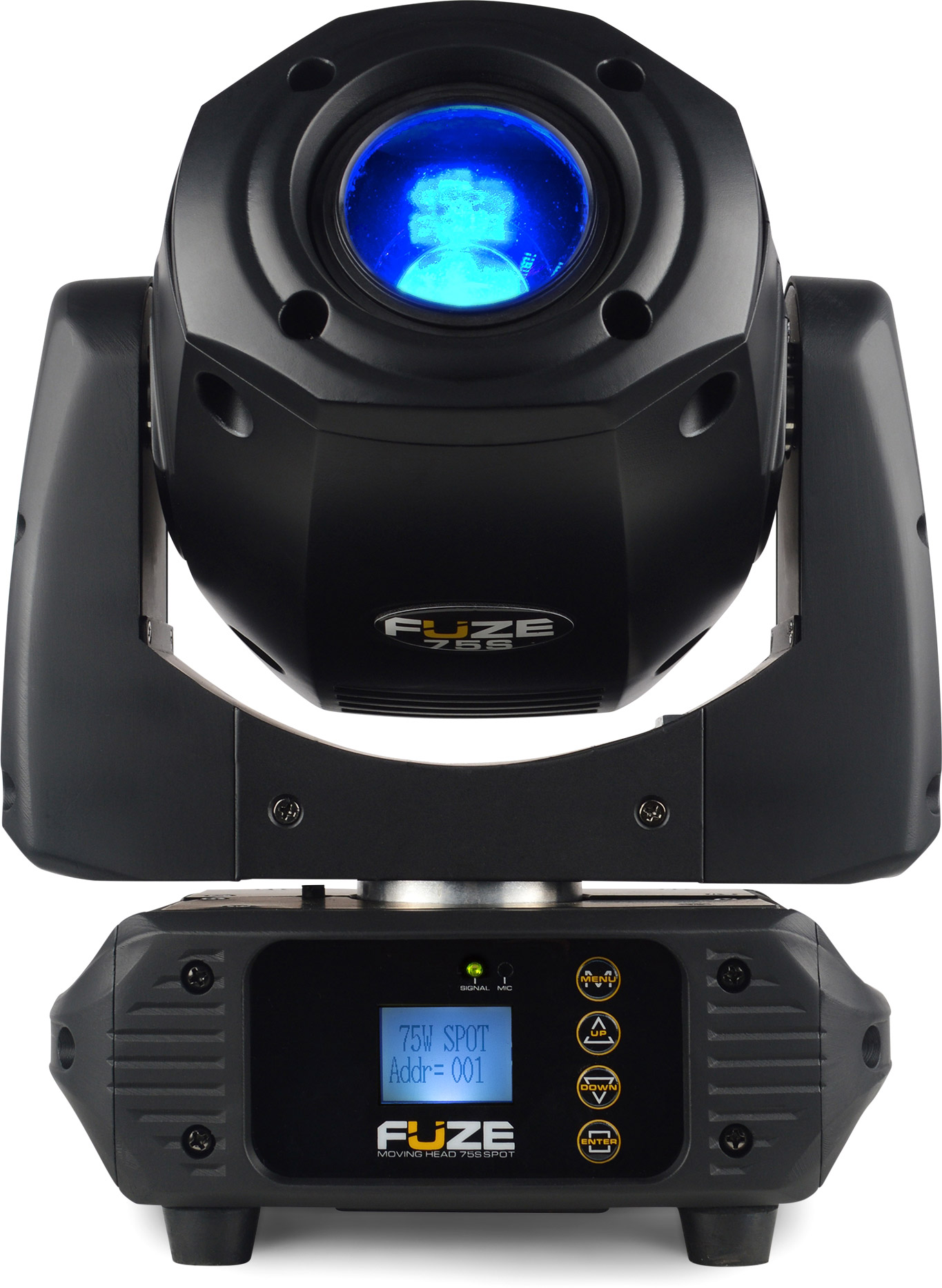

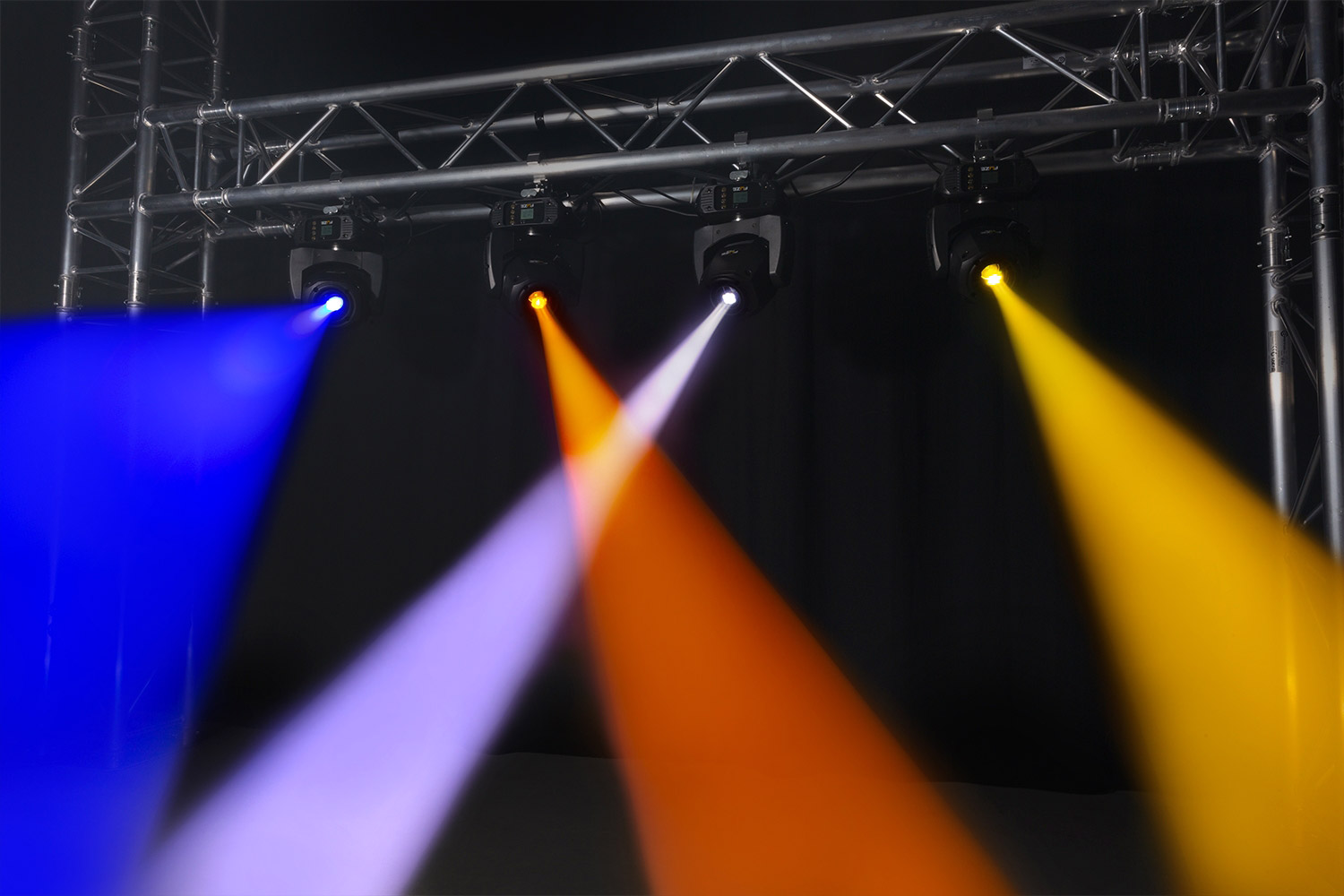

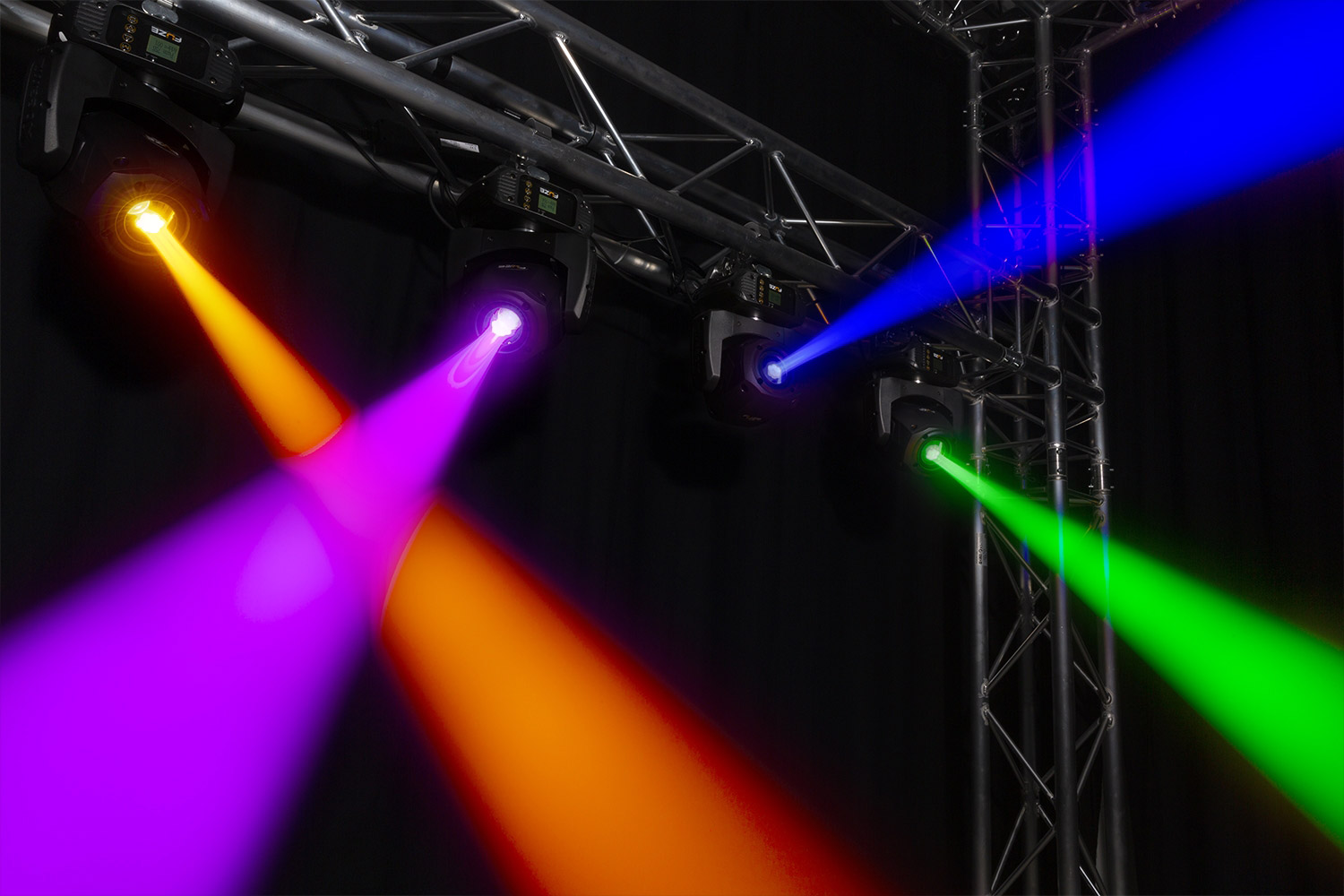

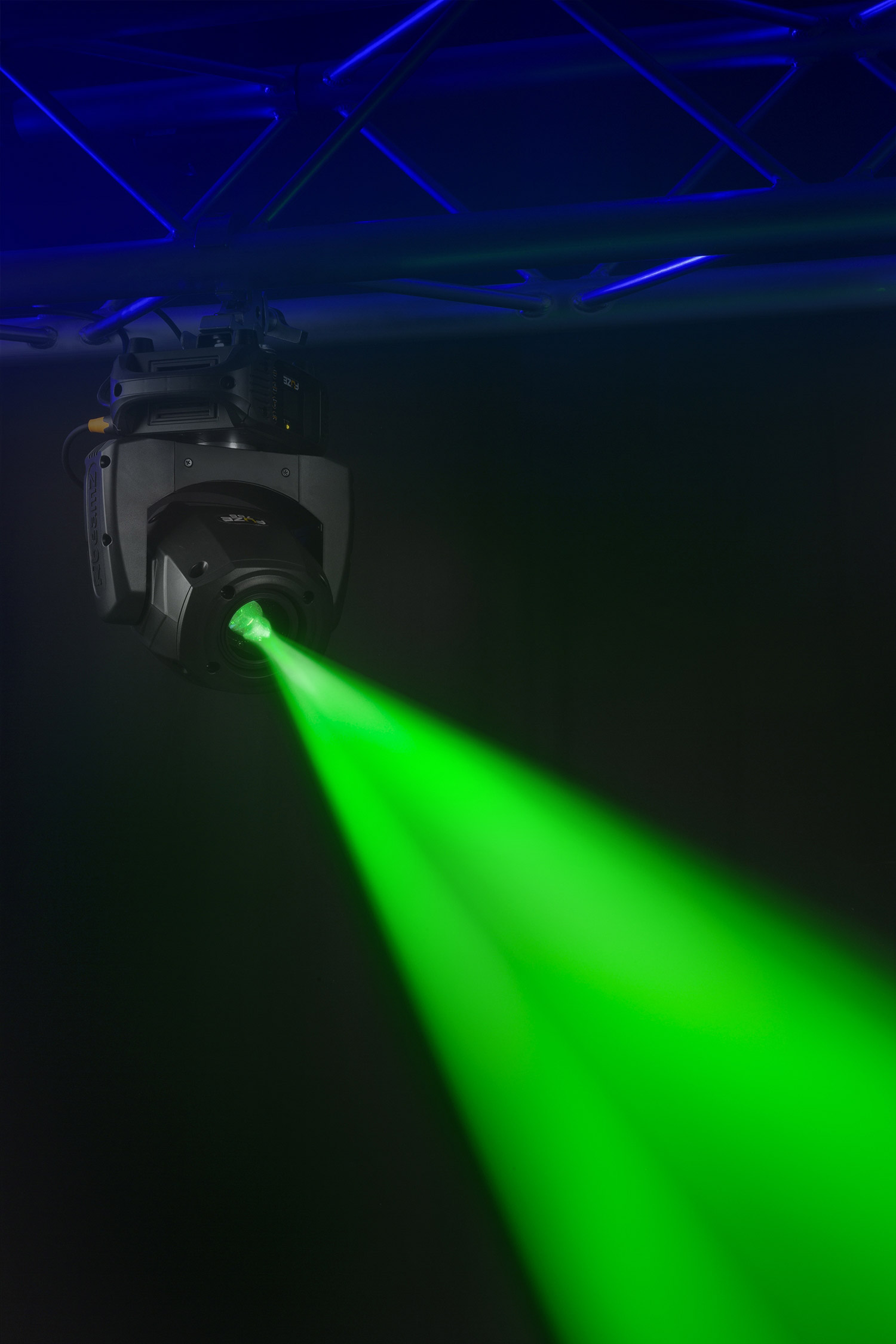

The beamZ Fuze75S LED Spot Moving Head is a lightweight and compact Moving Head featuring a powerful 75 W white LED. It produces sharp and bright beams with a beam angle of 12°. The built-in color and gobo wheels allow you to create a variety of lighting effects and customize them to your liking.

For additional effects, the Fuze75S features a rotating 3-facet prism that splits the light beam, allowing it to cover larger areas. The motorized focus enables precise adjustment of the projection. With its various control options, this Moving Head is ideal for lighting designers, DJs, bands, clubs, bars, and installations where compact dimensions and a lightweight design are required.

Flexible Control Options

The beamZ Fuze75S can be controlled via DMX with 11 or 13 channels. Additionally, automatic programs, a sound-activated mode with adjustable sensitivity, manual control, and master/slave synchronization are available. Operation is via the integrated control panel with an LCD display.

Color and Gobo Effects

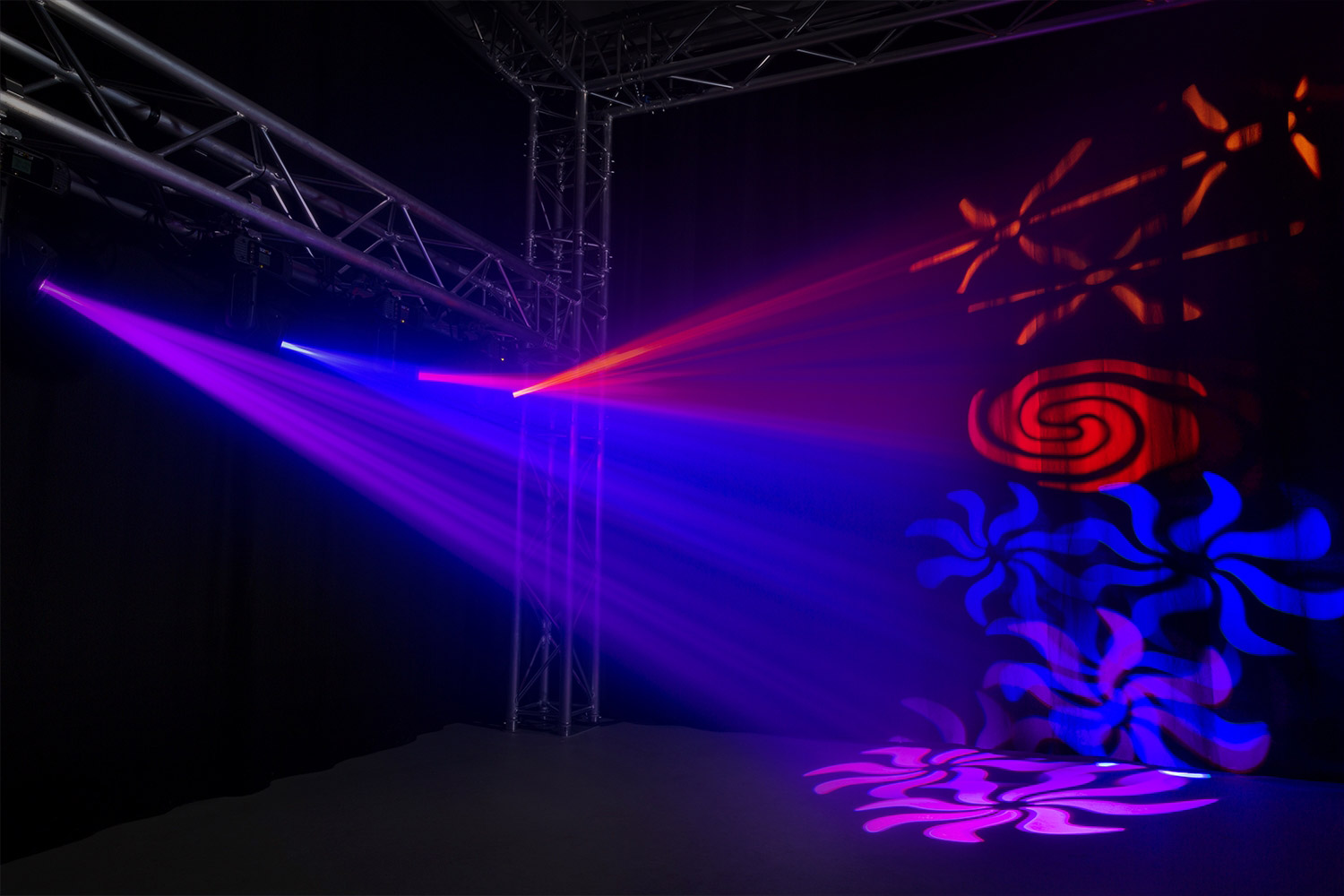

The color wheel offers 8 colors plus a clear setting. Additionally, 6 interchangeable metal gobos plus a clear setting are available. Gobo functions include Gobo Shake and Gobo Rotation. The interchangeable gobos have a diameter of 14.92 mm.

Highlights

• Powerful 75 W white LED
• Color temperature: 4000 K
• Illuminance: 70,000 lx @ 1 m
• Beam angle: 12°
• Motorized focus
• 8 colors plus open
• 6 interchangeable metal gobos plus open
• Gobo shake and gobo rotation
• Rotating 3-facet prism
• Electronic dimmer from 0–100%
• Strobe at 1–11 Hz
• 11 or 13 DMX channels
• DMX and stand-alone modes
• Automatic programs
• Sound-activated mode with adjustable sensitivity
• Master/slave synchronization
• Selectable pan and tilt
• Automatic pan/tilt correction
• Reset function
• LCD display

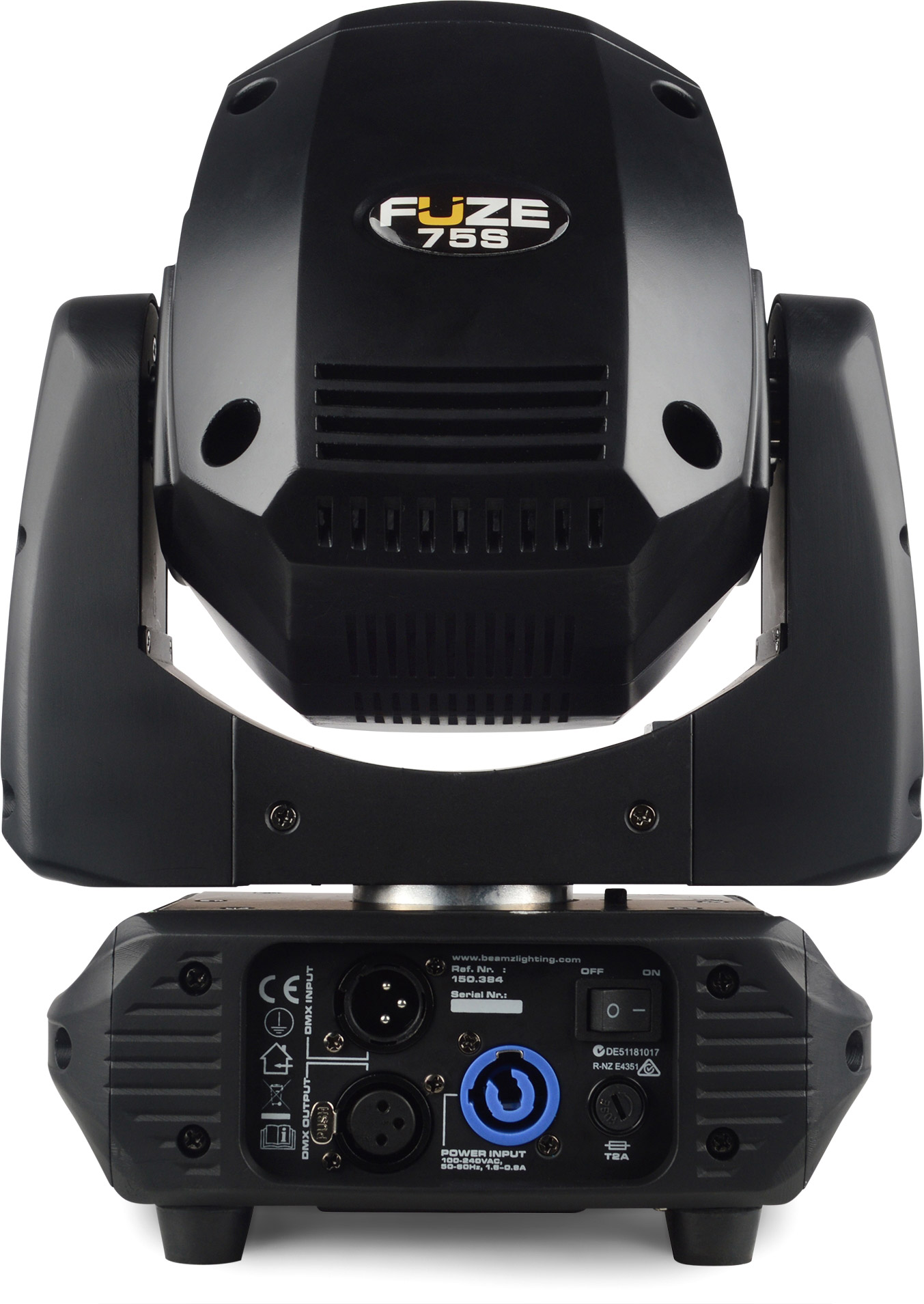

• DMX input and output via 3-pin XLR
• Power connector input and output

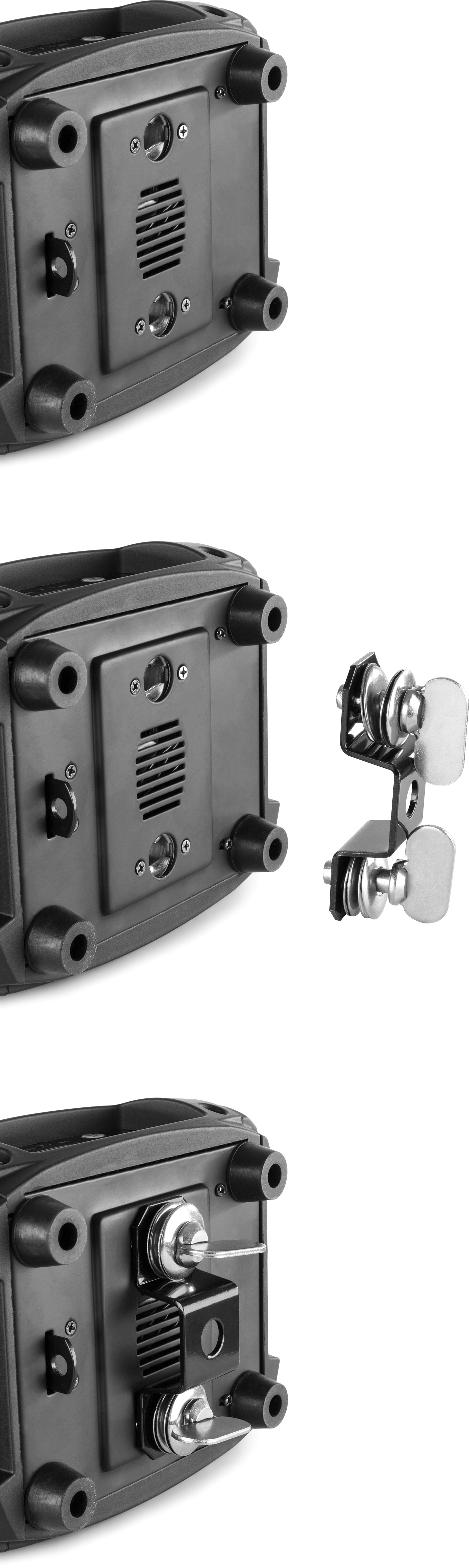

• Omega quick-release clamp included
• Remote control included

Technical Specifications

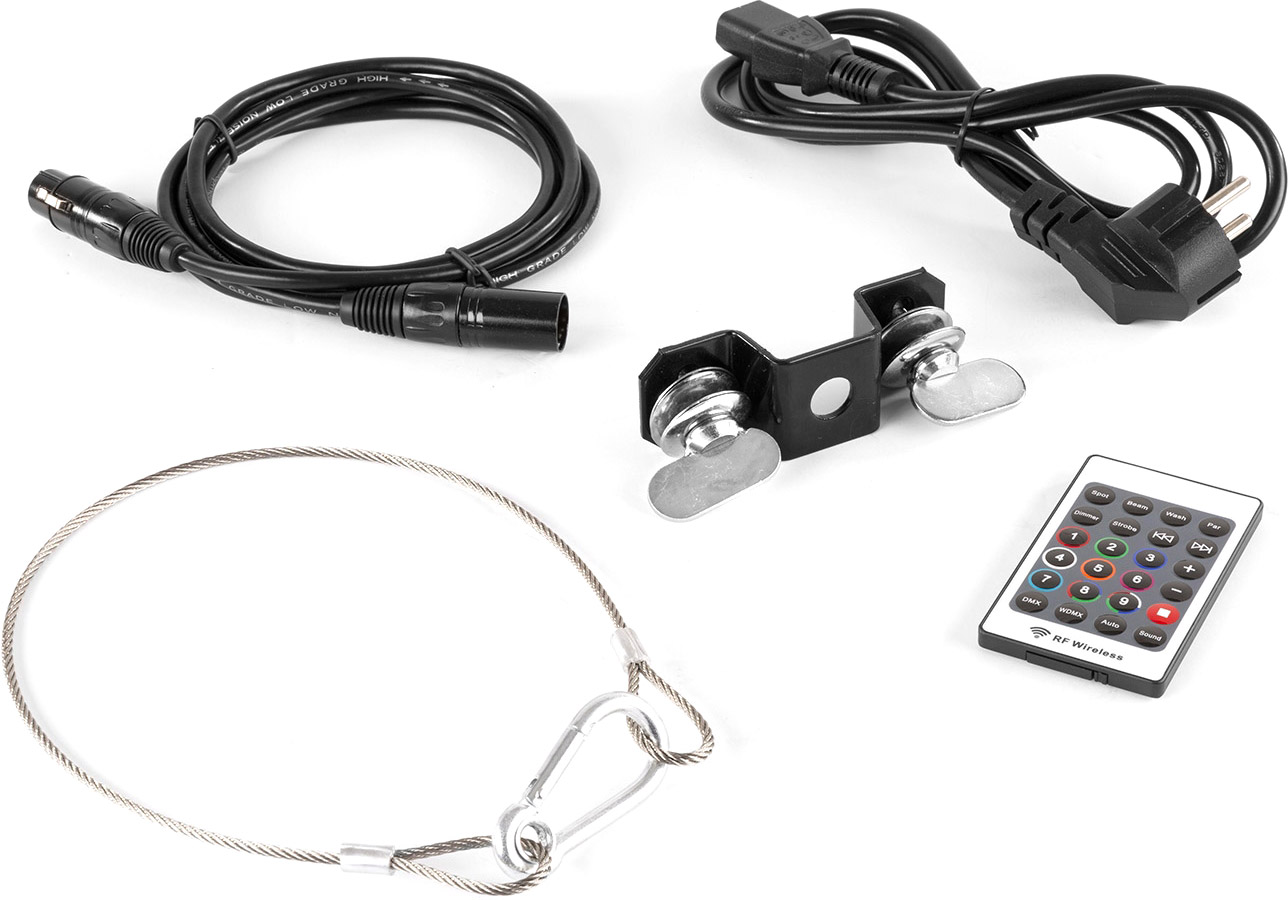

Package Contents

• DMX cable
• Mounting bracket / Omega quick-release clamp
• Power cord

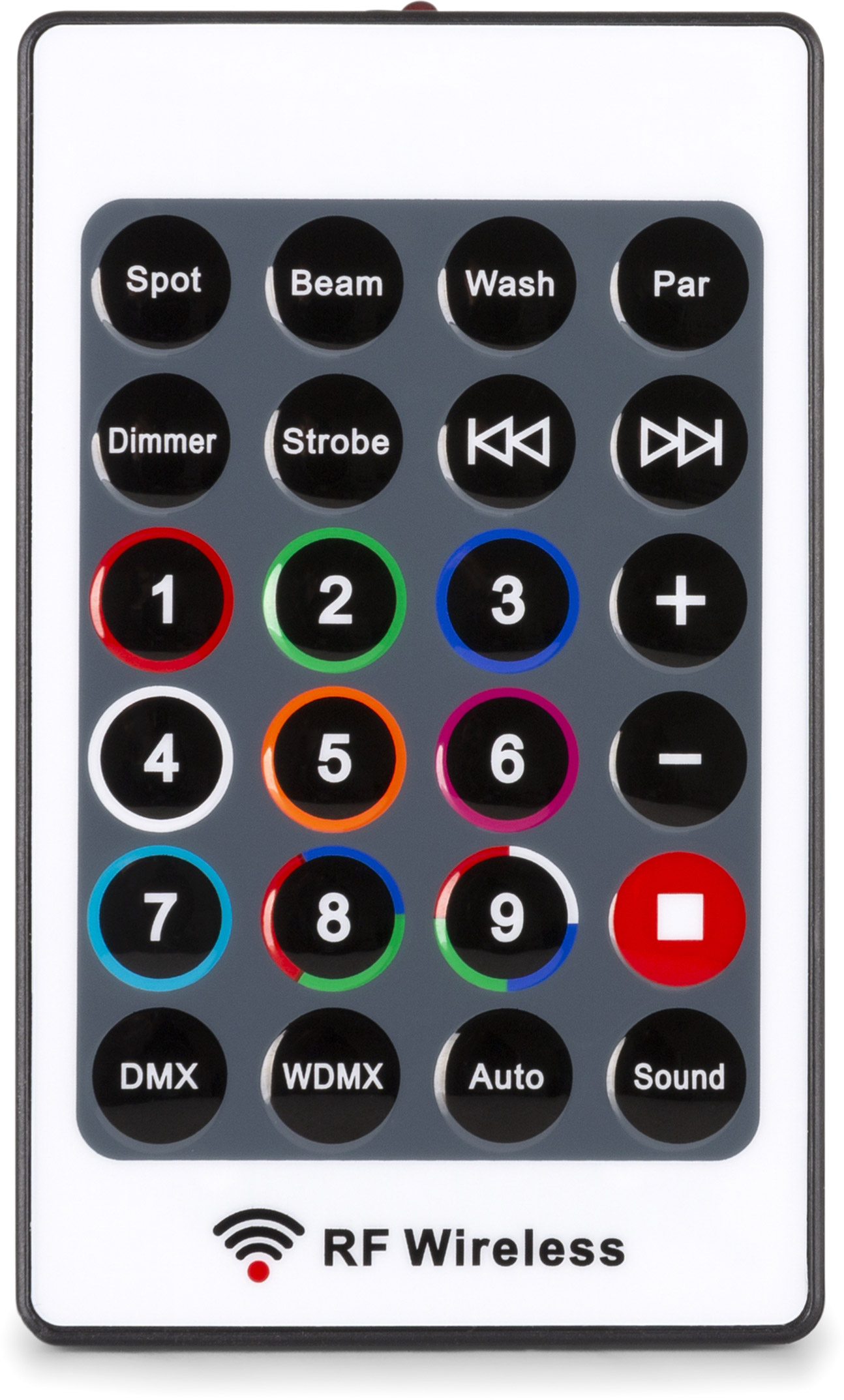

• Wireless remote control
• Safety cable
