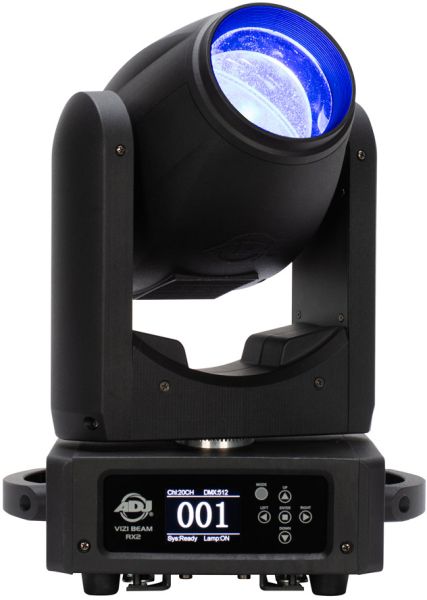

Preview: ADJ Vizi Beam RX2 Moving Head Scheinwerfer

ADJ Vizi Beam RX2 Moving Head Scheinwerfer

€899.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: 3-5 days

Item number: 250803375

EAN: 810087372484

MPN: 1237000337

Elevate your lighting performance with the ADJ Lighting Vizi Beam RX2, a compact and quick... more

Back to the overview

All information about the product:

"ADJ Vizi Beam RX2"

Elevate your lighting performance with the ADJ Lighting Vizi Beam RX2, a compact and quick moving head beam fixture designed for the modern lighting designer. Featuring a vigorous 100W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, this potent fixture delivers stunning visuals with a precise 2-degree beam angle, as well as, high speed 3-phase pan/tilt motors for maximum performance.

Unlock a wealth of features including on-board wireless DMX, two prism wheels (16-facet circular & 4-facet linear), a frost effect, motorized focus (with 16-bit fine focus), along with a 14-color dichroic wheel that includes CTO (3200K), CTB (9000k) & UV filters) and 15 static GOBOs + open (3 GOBOs are beam reducers).

Designed for convenience, it features outdoor-rated In/Out locking connections for power daisy-chaining, 5-pin In/Out DMX sockets and a color LCD display with 4-button function menu. The Vizi Beam RX2 is a versatile and reliable lighting solution for any high-octane event.

Technical data:

LIGHT SOURCE:

OSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.)
Color temperature: 9000K (+/- 300K)

FEATURES:

On-Board Wireless DMX
Motorized Focus + 16-Bit Fine Focus
2-Degree beam angle
Frost Filter (to create wash effect)
High Quality Glass Lens
2 Rotating Prisms
0-100% Smooth Dimming
Various Strobe Speeds
OTA, wireless, firmware updates
Fan cooled

COLOR WHEEL:

14 Dichroic Colors + white (Includes CTO (3200K), CTB (9000K) & UV)
Indexable Color Wheel (for Split Colors)

GOBO WHEEL:

15 static GOBOs + open (3 GOBOs are beam reducers)
GOBO Shake Effect

PRISM WHEEL:

2 Rotating prisms
16-Facet circular and 4 facet linear prisms

CONTROL:

Protocols: DMX512 & RDM
Control Mode: DMX512 & Manual (On-board Controls)
Aria X2 Wireless Management / DMX System
2 DMX Channel Modes: 12/16 Channels
Color LCD display with 4-button function menu
0-100% smooth dimming
Various strobe speeds

PAN/TILT:

Pan: 540 Degrees (plus 16-bit fine pan)
Tilt: 270 degrees (plus 16-bit fine tilt)
3-Phase, High Speed, Pan/Tilt Motors

CONNECTIONS:

DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)
Power Connections: Outdoor locking In/Out connections to daisy chain power

ELECTRICAL:

Multi-voltage Operation: 100-240V, 50/60Hz
Max power consumption: 157W

DIMENSIONS / WEIGHT:

Dimension: 230 x 304 x 416mm
Weight: 7.5 kg.

APPROVALS / RATINGS:

CE
cETLus (Pending)

WHAT’S INCLUDED:

2x Omega Brackets (107 Type)
1x 2M, Outdoor Locking 14AWG Power Cord

subject to change. Preliminary Data!
