Preview: EUROLITE LED TMH-X4 Moving-Head Wash Zoom ws

EUROLITE LED TMH-X4 Moving-Head Wash Zoom ws

€568.50 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: 3-5 days

Item number: 120036310

EAN: 4026397713206

MPN: 51785916

Washlight with 19 intense 15 W 4in1 LEDs, motorized zoom and white housing 19 powerful LEDs 15... more

Back to the overview

All information about the product:

"EUROLITE LED TMH-X4 Moving Head Wash Zoom wh"

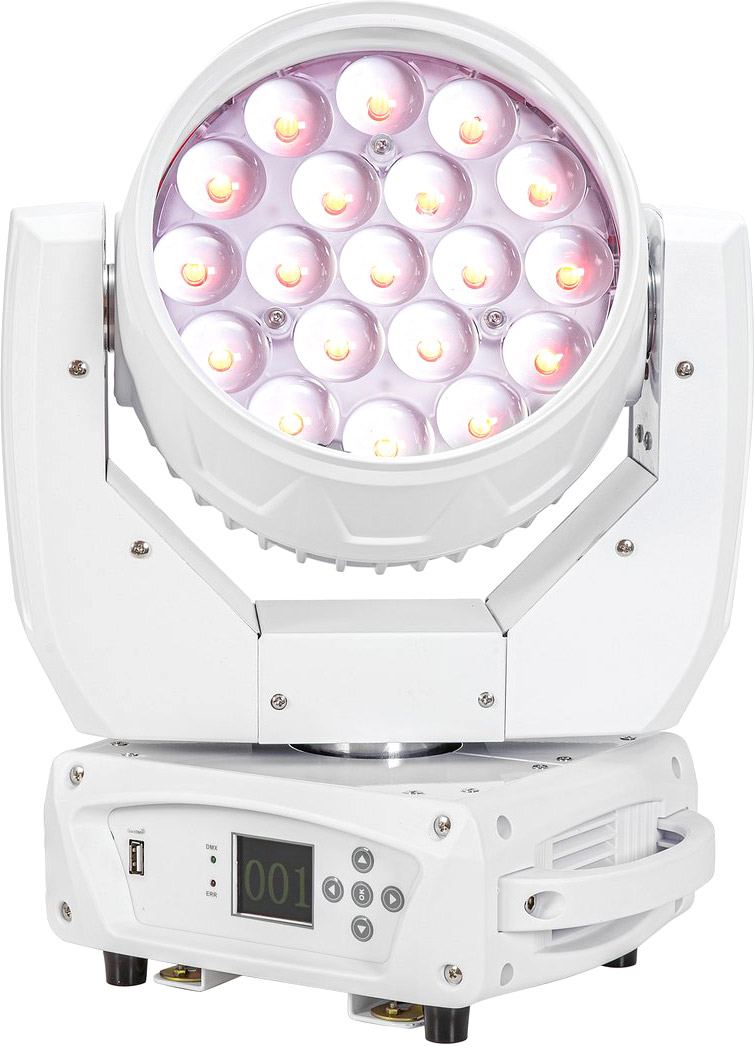

Washlight with 19 intense 15 W 4in1 LEDs, motorized zoom and white housing

19 powerful LEDs 15 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
3 segments controlled separately
Positioning within 630° PAN, 270° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Zoom motor driven
Integrated show programs
The device is cooled by temperature-controlled fan at the Head; cooling fan at the base
Control via stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With a beam angle of 1° - 40°
Multicolor LCD display
Color blend stepless; color change adjustable; Dimmer electronic
Strobe effect
Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; wedding/gala/events; stage; mobile djs / entertainer; rental
Application possibility: Standing; suspended

Package contents

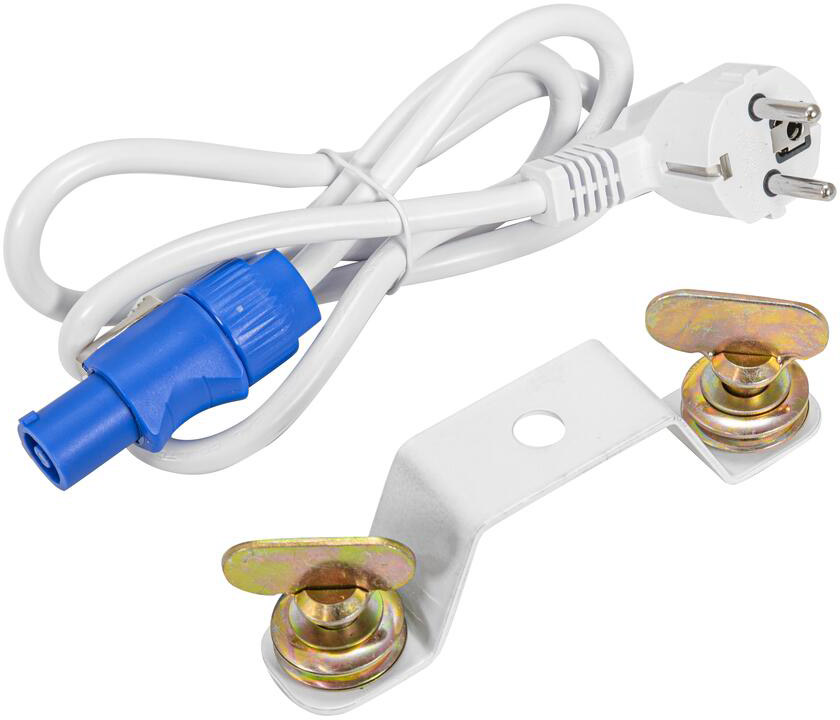

1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	225 W
IP classification:	IP20
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 2 A fuse replaceable
Lamp type:	LED lamp
LED type:	19 x 15 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:	270° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:	630° exact positioning (16 bit resolution) auto position correction (feedback)
Equipment:	Zoom motor driven
DMX channels:	16; 24

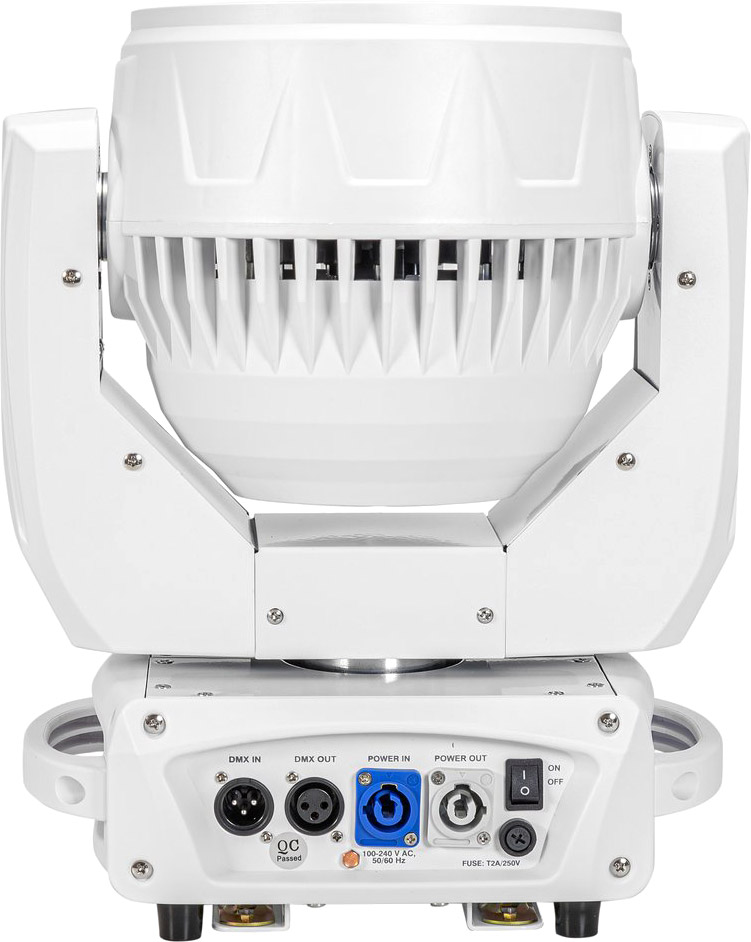

DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan at the Head Cooling fan at the base
Control:	Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:	Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain
Projection:	Flicker-free
Beam angle:	1° - 40°
Beam angle (1/2 peak):	1 - 25°
Beam angle (1/10 peak):	8 - 40°
Illuminance in Lux (lx):	Narrow red (R) 3m: 2779 lx, 6m: 763 lx Narrow green (G) 3m: 7893 lx, 6m: 1841 lx Narrow blue (B) 3m: 1468 lx, 6m: 390 lx Narrow cold white (CW) 3m: 9558 lx, 6m: 2468 lx Narrow all 3m: 19553 lx, 6m: 5001 lx Wide red (R) 3m: 272 lx, 6m: 73 lx Wide green (G) 3m: 583 lx, 6m: 160 lx Wide blue (B) 3m: 117 lx, 6m: 34 lx Wide cold white (CW) 3m: 740 lx, 6m: 211 lx Wide all 3m: 1568 lx, 6m: 439 lx
Housing color:	White
Display type:	Multicolor LCD display
Dimensions:	Width: 30,5 cm Depth: 20,0 cm Height: 40,0 cm
Weight:	8,62 kg
Noise classification:	Class 3 (clearly perceptible sounds)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
