ADJ Hydro Flex L19

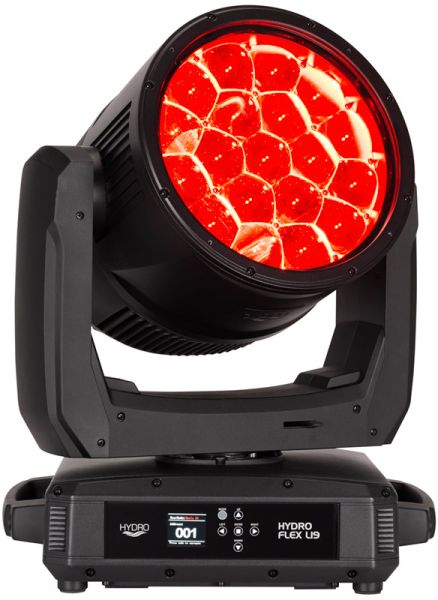

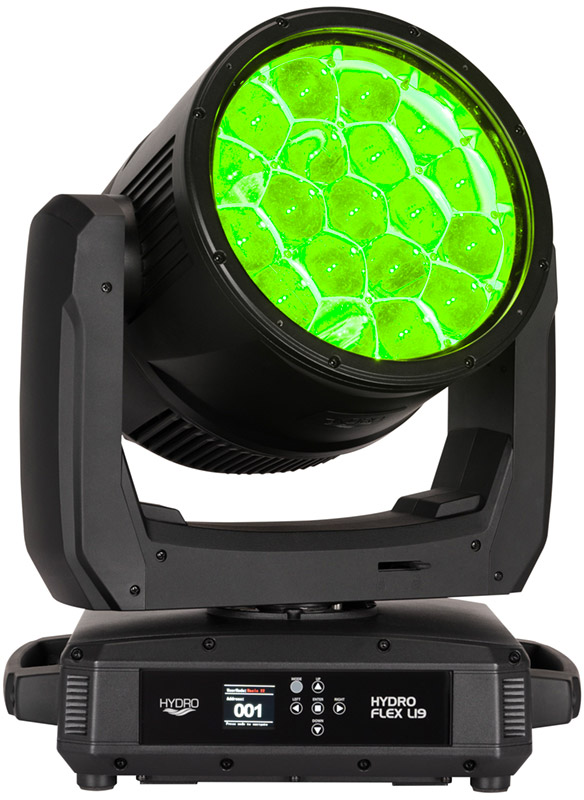

ADJ Hydro Flex L19 IP65 Movinghead-Washer

€3,899.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: 3-5 days

Item number: 250803875

EAN: 810087373801

MPN: 1237000353

Back to the overview

All information about the product:

"ADJ Hydro Flex L19"

Powered by nineteen 60W RGBL LEDs, the Hydro Flex L19 offers an extensive range of features designed for modern lighting professionals. These include Individual Pixel Control with built-in Pixel Effect Programs, Virtual CMY DMX Control Modes, Linear White Color Temperature Control with presets, and Virtual Foreground and Background Color Wheel Control. Built for touring, rental, and event production applications, this powerful fixture combines exceptional brightness with a versatile feature set, ensuring optimal performance even in demanding conditions.

With robust IP65-rated construction, the Hydro Flex L19 is suitable for both indoor and outdoor use. Its durable metal housing provides reliable protection against dust, sand, moisture, and liquids, making it a perfect choice for festivals, outdoor events, open-air clubs, and other entertainment venues where dependable wash lighting is essential.

Additionally, the Hydro Flex L19 incorporates the Aria X2 wireless management system for seamless control, alongside DMX512, ArtNet, sACN, and KlingNet compatibility. It features IP65-rated 5-pin DMX In/Out and RJ45 networking ports, all safeguarded by rubber protective covers, ensuring consistent performance in any setting.

Technical data:

Source:

19 x 60-Watt RGBL LEDs (50,000 hr.)
CRI: 84.2
TM30 Rf: 84.7
TM30 Rg: 99.8
Color Temperature: 2700K ~ 10,000K
54,400 lux / 4.3° beam @ 16' (5m)
2,090 lux / 28.3° beam @ 16' (5m)
Lumens: 17,000 (Zoomed Out, Full On)

Features:

Moving Light Pixel Wash
Individual Pixel Control
Built-In Pixel Effect Programs
Aria X2 Wireless Management System
Electronic Strobe / Dimmer
Pan/Tilt: 540/630 x 243
Motorized Zoom
Beam Angle: 5° ~ 38°
Field Angle: 8° ~ 56°
Color Calibrated Pixels so units match from batch to batch
Virtual CMY DMX Control Modes
Virtual Foreground and Background Color Wheel Control
Selectable LED Refresh Rates (900 Hz~25K Hz)
Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
4 Dim Curves: Square, Linear, Inv. Square and S. Curve
0-100% smooth dimming
Fan Cooled

Colors:

19x RGBL LEDs (Red, Green, Blue and Lime)
Virtual CMY DMX Control Modes
Virtual Foreground and Background Color Wheel Control
Built-In Color Macros
2,700K ~ 10,000K Linear White Color Temperature Control
Color Temperature Presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K

Control:

6 DMX Modes (22, 31, 40, 104, Standard CMY 31, Extended CMY 34)
Color LCD display with 6-button function menu
Control: DMX512, ArtNet, sACN, KlingNet and Aria X2 Wireless Management System
Built-In Effect Pixel Programs with Speed and Fade Control
RDM (Remote Device Management) compliant
With Wired Digital Communication Network

Pan/Tilt:

Pan: 540/630 degrees
Tilt: 243 degrees
16-Bit Fine Pan & Tilt
Pan & Tilt Locks

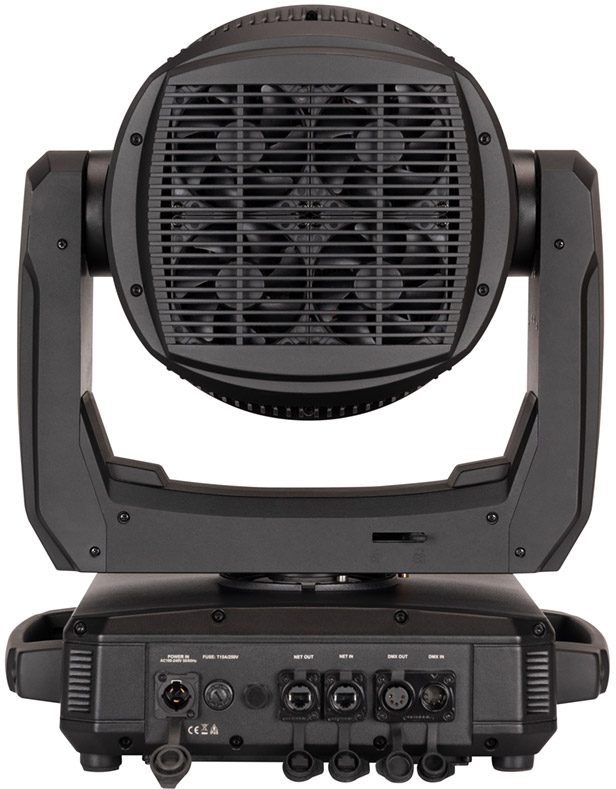

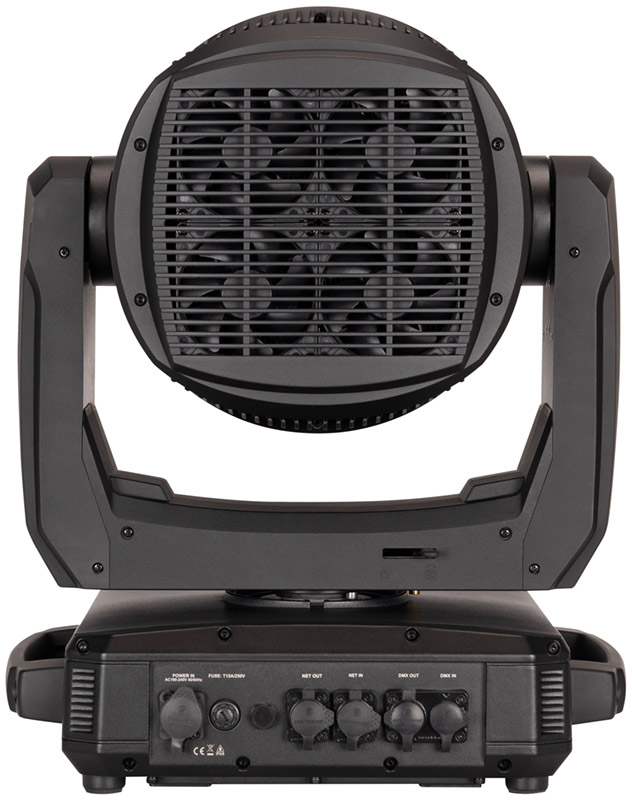

Connections:

DMX Connections: IP65-rated Locking In/Out XLR Sockets
IP65-rated Locking In/Out RJ45 Network Sockets
Power Connections: IP65-rated Locking Input Power Socket

Electrical:

Multi-voltage operation: 100-240V, 50/60Hz
Max power consumption: 1350W (6.38Amps) @ 220V

Dimensions & Weight:

Dimensions (LxWxH): 318x433x517mm
Weight: 27.6kg

What's Included:

180mm Omega Brackets (2x)
1x 1.83M, IP65-rated locking power cable
Safety Cable

Approvals / Rating:

IP65 with C4 Coated Exterior and conformal coated PCB's.

subject to change without notice
