EUROLITE Set 2x LED TSL-1000 Scan MK2 + Case with trolley function

Preview: EUROLITE Set 2x LED TSL-1000 Scan MK2 + Case mit Trolleyfunktion

EUROLITE Set 2x LED TSL-1000 Scan MK2 + Case mit Trolleyfunktion

€1,349.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: 3-5 days

Item number: 120038045

EAN: 4026397705683

MPN: 20000918

Positioning within EUROLITE LED TSL-1000 Scan MK2 Scanner with 100 W LED, rotating gobos,... more

Back to the overview

All information about the product:

"EUROLITE Set 2x LED TSL-1000 Scan MK2 + Case with trolley function"

Set consisting of:

2 x EUROLITE LED TSL-1000 Scan MK2

1 x ROADINGER Flightcase 2x LED TSL-1000 with trolley function

Positioning within

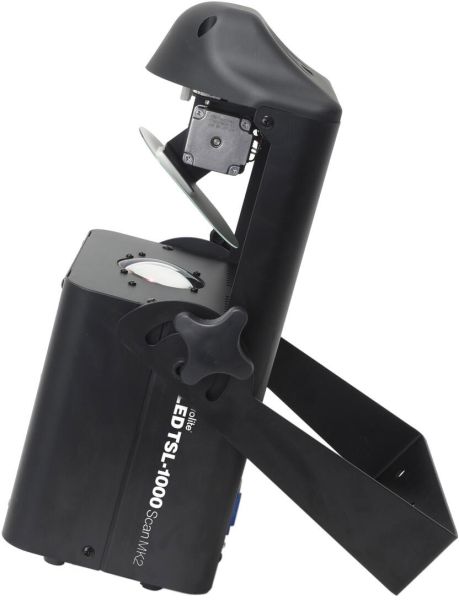

EUROLITE LED TSL-1000 Scan MK2

Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus

Note: The macro programs of the predecessor model (no. 51786122) are not identical, therefore no synchronous master/slave operation is possible between these devices.
1 powerful LED 100 W COB (chip-on-board) cold white (CW)
Positioning within 160° PAN, 50° TILT
Exact positioning (16 bit resolution)
Focus motor-driven; color wheel; gobo wheel with rotating gobos; prism 3-fold
Dimmer electronic
Gobo effect; strobe effect
Color wheel with 8 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions
Gobo wheel with rotating gobos, 7 gobos and open
shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
Integrated show programs
The device is cooled by cooling fan
Control via stand-alone; DMX; master/slave function; sound to light via microphone
Preprogrammed in Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Flicker-free
With a beam angle of 20°
OLED display
Rubber feet
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; wedding/gala/events; mobile djs / entertainer; stage; restaurants, bars and hotels
Application possibility: Standing; suspended; on stand

safety eyelet

M6 thread

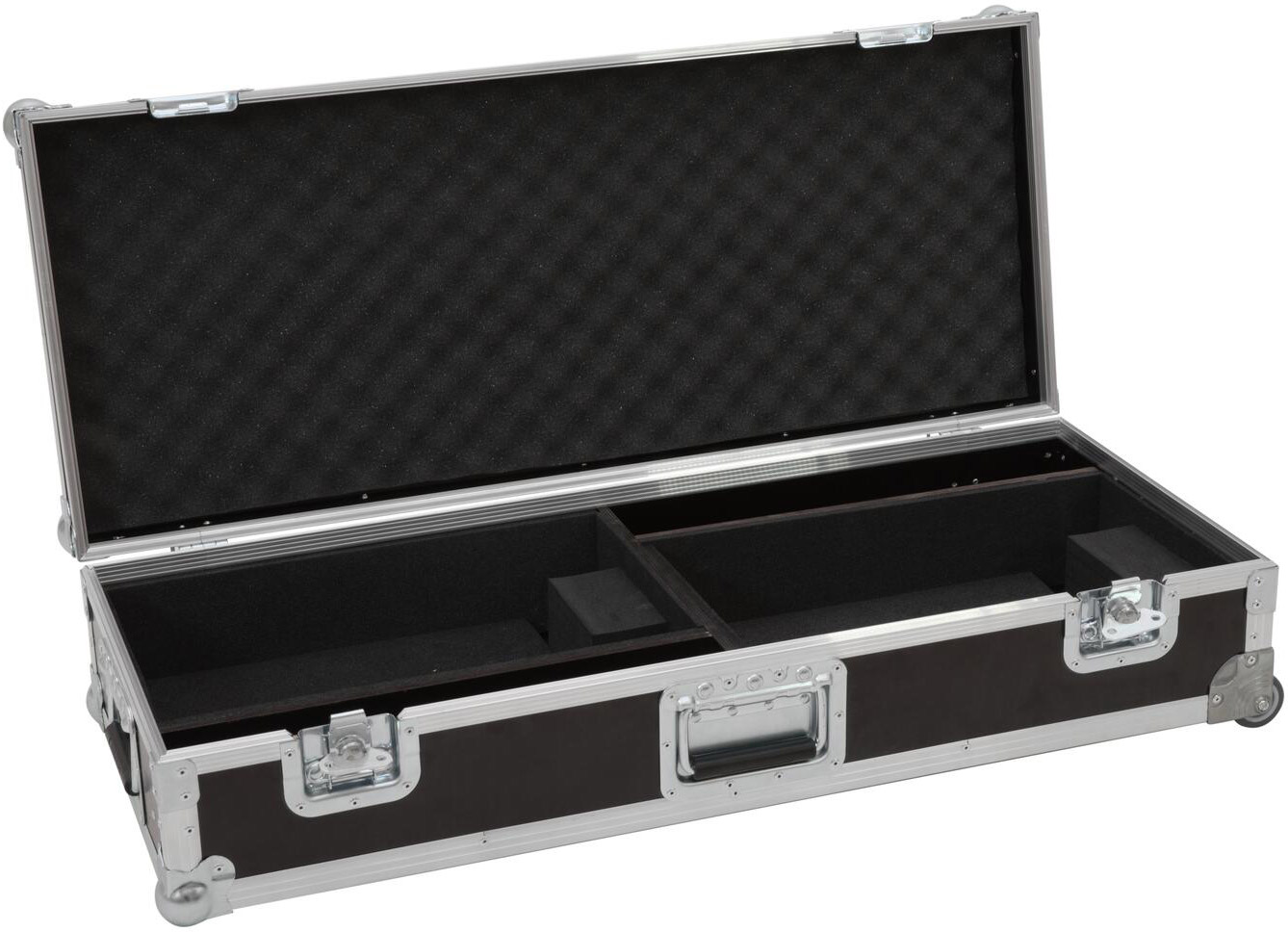

ROADINGER Flightcase 2x LED TSL-1000 with trolley function

Trolley case, PRO version

High-quality workmanship with birch multiplex 6.5 mm,
Interior with foam padding
Aluminum profile frames 25mm with rounded edges
3 hinged, chromium plated case handles
2 chrome tip-over locks
2 high-quality butterfly locks
Trolley
Branded hardware
Made in Europe
For further information about this product, please refer to the Data Sheet under "Downloads"

Scope of delivery

2 x EUROLITE LED TSL-1000 Scan MK2

1 x light effect
1 x power cord
1 x safety eyelet
1 x user manual

Weight:	21.60 kg
EUROLITE LED TSL-1000 Scan MK2
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	110 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 4 A fuse replaceable
Lamp type:	LED lamp
LED type:	1 x 100 W COB (chip-on-board) cold white (CW)
Max. TILT movement:	50° exact positioning (16 bit resolution)
Max. PAN movement:	160° exact positioning (16 bit resolution)
Flash rate:	1 - 25 Hz
Equipment:	Focus motor-driven; color wheel; gobo wheel with rotating gobos; prism 3-fold
Color generation:	Color wheel with 8 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:	Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 23.9mm Image diameter 18mm Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement
DMX channels:	10; 15
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; DMX; master/slave function; sound to light via microphone
Preprogrammed in:	Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Projection:	Flicker-free
Beam angle:	20°
Beam angle (1/2 peak):	20°
Color temperature:	8000K
Illuminance in Lux (lx):	Cold white (CW) 1m: 35679 lx, 3m: 4265 lx, 6m: 1055 lx
Housing color:	Black
Display type:	OLED display
Transport aid:	Rubber feet
Material:	Metal; plastic
Dimensions:	Width: 25.1 cm Depth: 14.1 cm Height: 37.7 cm
Weight:	5.75 kg
Noise classification:	Class 2 (slight noise)
Power cord
Cable construction:	3 x 1.0 mm² H05VV-F
Cable length:	Approx. 1.5 m
Mounting bracket
Diameter mounting holes:	3 x Ø10mm
Material:	Metal, 3 mm
Safety eyelet
Material:	Metal
Ring diameter:	Outside: 23 mm Inside: 11 mm
Thread:	M6 thread
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 2x LED TSL-1000 with trolley function
Maximum load:	25 kg
Aluminum profile frames:	25 mm
Case handle:	3 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Transport aid:	Trolley
Use of brands:	Branded hardware
Material:	Birch multiplex, 6.5 mm
Accessory compartment:	44 cm x 7 cm x 13 cm
Device compartment:	36 cm x 25.5 cm x 13 cm
Inside dimensions:	86.5 cm x 32.5 cm x 13 cm
Weight:	10.10 kg
