Palmer PAN 03 - 19" DI Box 4-Channel active
€329.18 *
Availability:
Near-term available
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Delivery time: approx. 1 week
Item number: 500117325
EAN: 4049521049002
MPN: PAN03
19" DI Box 4-Channel active Active 4-channel DI box. Each channel has a jack input with a... more
All information about the product:
"Palmer PAN 03 - 19" DI Box 4-Channel active"
19" DI Box 4-Channel active

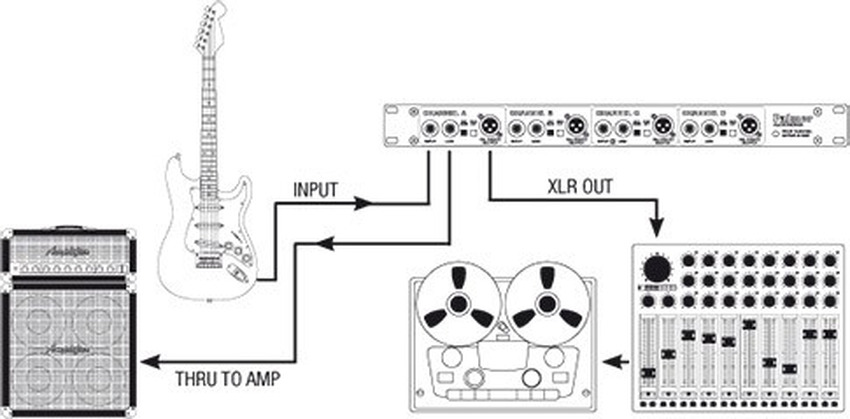

Active 4-channel DI box. Each channel has a jack input with a parallel output for passing through the signal. An attenuation switch (-30 dB) allows either a line or loudspeaker signal to be connected.Active 4 x DI box, 19" format. Technical specitications identicl to the PAN-02, however, the PAN-03 is built for mains operation. All connections and switches are located on the front panel, an additional parallel XLR output is located in back. 19 inch rack-mount format, 1 rack space, 90 mm front to back.
Technical data:| Product type: | DI Boxes |
| Type: | active |
| Channels: | 4 |
| Inputs: | 4 |
| Input connectors: | 6.3 mm jack |
| Max. input level: | + 45 dBu |
| Input impedance: | (@ 60 Hz) 1 M Ohm(s) |
| Input pad: | 0 / -30 dB |
| Outputs: | 4 (+ 4 parallel XLR outs) |
| THRU outputs/channel: | 1 |
| Output connectors: | 6.3 mm jack |
| Output connectors: | XLR |
| Max. output level: | + 10 dBu |
| Output impedance: | 600 Ohm(s) |
| Frequency response: | 10 - 20000 Hz |
| Transformer balanced: | Yes |
| Ratio: | 10 : 1 |
| Indicators: | Power |
| Controls: | attenuator |
| Controls: | ground lift |
| Operating voltage: | external |
| Cabinet material: | sheet steel |
| Cabinet surface: | Powder coated |
| Width: | 480 mm |
| Width: | 19 " |
| Depth: | 90 mm |
| Height: | 45 mm |
| Height: | 1 U |
| Weight: | 1,6 kg |
