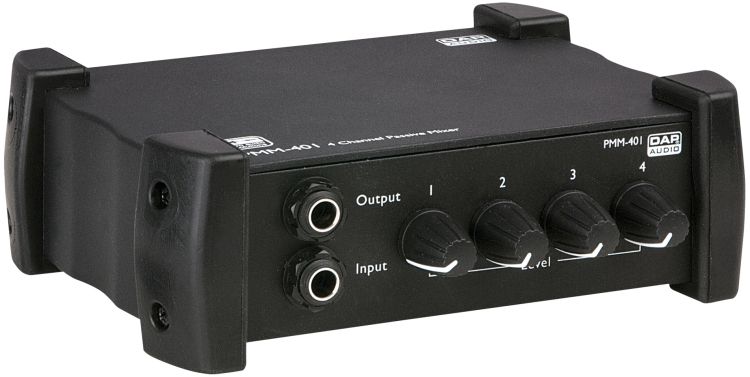

DAP-Audio PMM-401 4-channel passive jack audio splitter/mixer

The DAP Pro Audio Solutions are a complete line-up of audio tools for the professional musician or audio engineer. It is a series of audio modifying tools like mini-mixers, pre-amps and converters available in active or passive models. All audio solutions are designed to meet the highest stage and audio demands and feature a metal road proof housing with rubber feet and easy accessible controls. The units also have a small footprint which make them ideal to be used and placed in any environment where space is critical.

The DAP PMM-401 is a high-quality product that can function as a passive mixer or splitter with four stereo channels. You can combine 4 line inputs into one output or split one input into 4 outputs without noise or distortion.

The volume of each input/output can be adjusted to set appropriate mix/volume levels. This makes it a handy tool in unforeseen situations. In addition, it is a very handy device as it does not require a power source such as batteries or mains power.Technical data:

Stereo Inputs:	5
Stereo Input Connector:	TRS balanced 6.3 mm
Stereo Input Impedance:	50000 Ω
Main Outputs:	5
Main Output Connector:	TRS balanced 6.3 mm
Main Output Impedance:	12000 Ω
THD Level %:	Signal-to-noise Ratio:> 110 dB
Frequency Response Minimum:	20 Hz
Frequency Response Maximum:	20000 Hz
Height (mm):	53 mm
Width (mm):	158 mm
Length (mm):	135 mm
Weight:	0.67 kg
IP Rating:	IP20 (indoor use only)
Housing:	Aluminium
Colour:	Black
