DAP-Audio DCP-24 MKII 4-channel digital crossover

The DAP DCP-24 MKII is a 4-channel digital crossover, suitable for your 4-part sub/top speaker combination. It is equipped with a variety of functions, such as a 5-band equalizer, volume control, X-over, reverse, limiter and delay. This allows you to achieve optimal sound quality at any location.

In one view you have insight into all the necessary information thanks to audio signal indicators for inputs and outputs in combination with an LCD display. The DCP-24 MKII is suitable for PA as well as line arrays, audio installations and sound distribution networks.

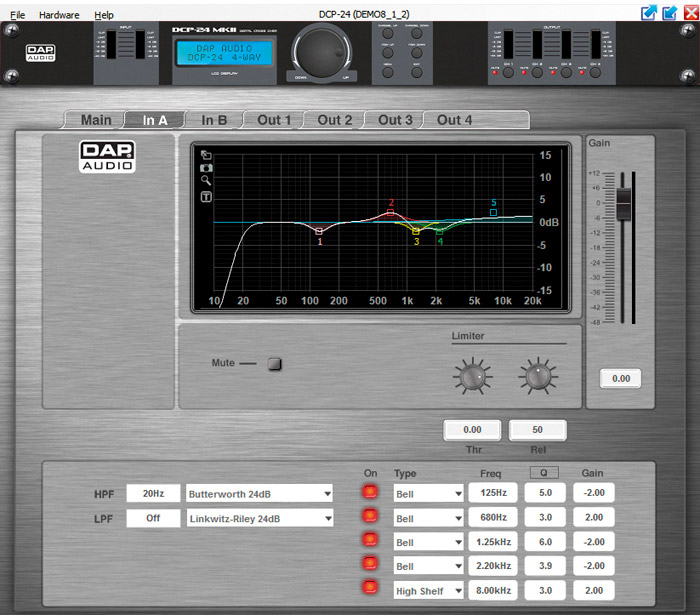

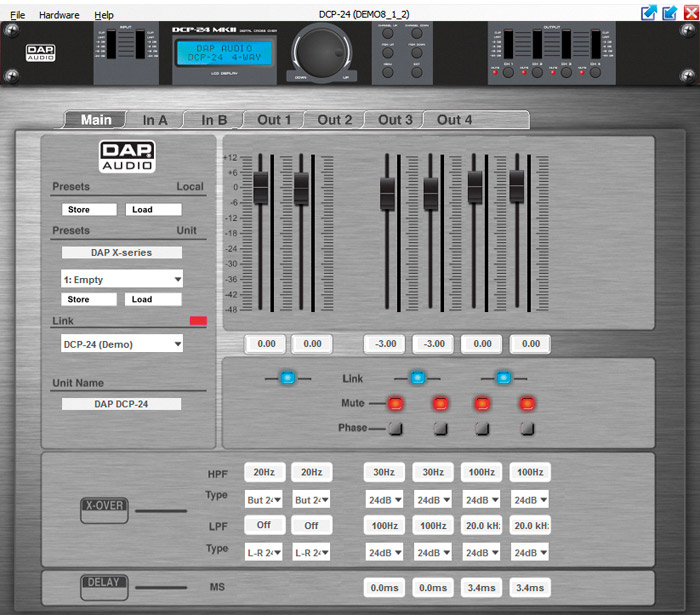

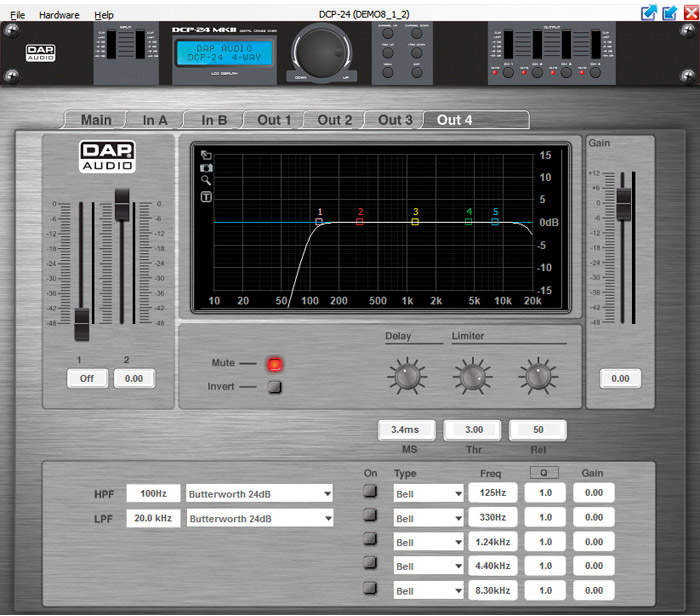

Using the DAP DSP Control software, available for Windows and MacOS, you can use advanced settings to fine-tune and protect your sound system. You can also easily save or recall presets. The DCP-24 MKII can be connected to your PC/laptop using a USB-A to USB-B cable.

Not familiar with speaker processors? Our DAP technicians will help you get started with the basic settings. Ask your supplier or contact person for help and you will receive the right guidance.Technical data:

Mono Inputs:	2
Mono Input Connector:	3-pin XLR
Mono Input Headroom:	22 dB
Mono Input Gain Range:	12 dB
Balanced Mono Input Maximum Level:	22 dBu
Mono Input Impedance:	10000 Ω
Main Outputs:	4
Main Output Connector:	3-pin XLR
Main Output Headroom:	9 dB
Main Output Maximum Level:	0 dBu
Main Output Impedance:	100 Ω
THD Level %:	Signal-to-noise Ratio:> 90 dB
Audio Latency:	1.27 ms
DSP Processor Bitrate:	64-bit
Frequency Response Minimum:	20 Hz
Frequency Response Maximum:	20000 Hz
Supported Operating Systems:	Windows
DSP:	Yes
Equalizer Gain Range:	12 dB

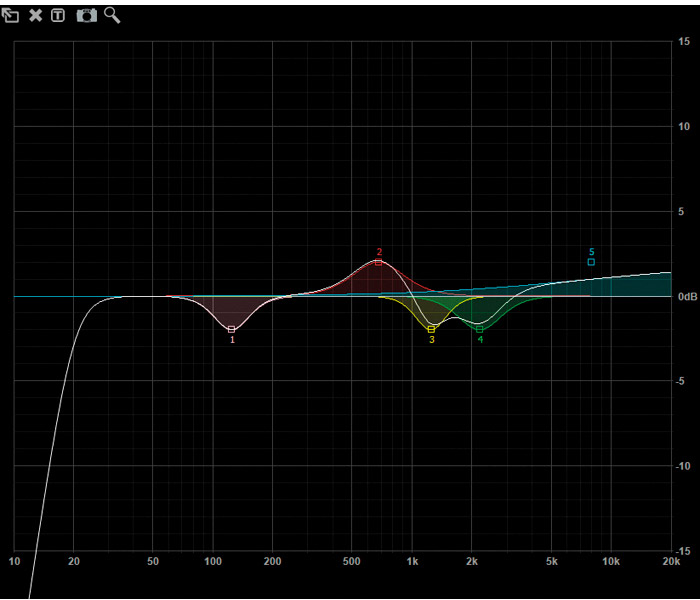

Parametric Input Equalizer:	5 Bands
Parametric Output Equalizer:	5 Bands
Input Equalizer Types:	Allpass / Bell / High Shelf / Low Shelf / Notch
Output Equalizer Types:	High Shelf 6 / High Shelf 12 / Low Shelf 6 / Low Shelf 12
Crossover Filter Types:	Bessel / Butterworth / Linkwitz Riley
Crossover Slopes:	6 / 12 / 24 / 48 dB
Dynamics Processing:	Limiter
Phase Reverse:	Yes
Limiter Threshold Minimum:	-20 dB
Limiter Threshold Maximum:	20 dB
Limiter Release Time Minimum:	1 ms
Limiter Release Time Maximum:	100 ms
Output Delay (Max.):	8 ms
User Presets:	Yes
User Presets Capacity:	50
Control Mode:	Manual / PC Software
Display:	LCD
Power Supply:	220-240 V AC 50 Hz
Output voltage:	6 V DC
SMPS:	Yes
Power Consumption:	4 W
Power Connector In:	Low Voltage DC plug
Data Connector In:	USB B
Cable Length:	1.5 m
Height (mm):	44 mm
Width (mm):	483 mm
Length (mm):	155 mm
Installation Depth (Excl. Connector):	155 mm
Flightcase Size:	19"
Rack Units:	1 U
LED Indicators:	Clip / Input level / Operation mode / Output level / Signal
Housing:	Metal
Colour:	Black
Weight:	1.9 kg
IP Rating:	IP20 (indoor use only)
Included Cables:	USB-A - USB-B cable

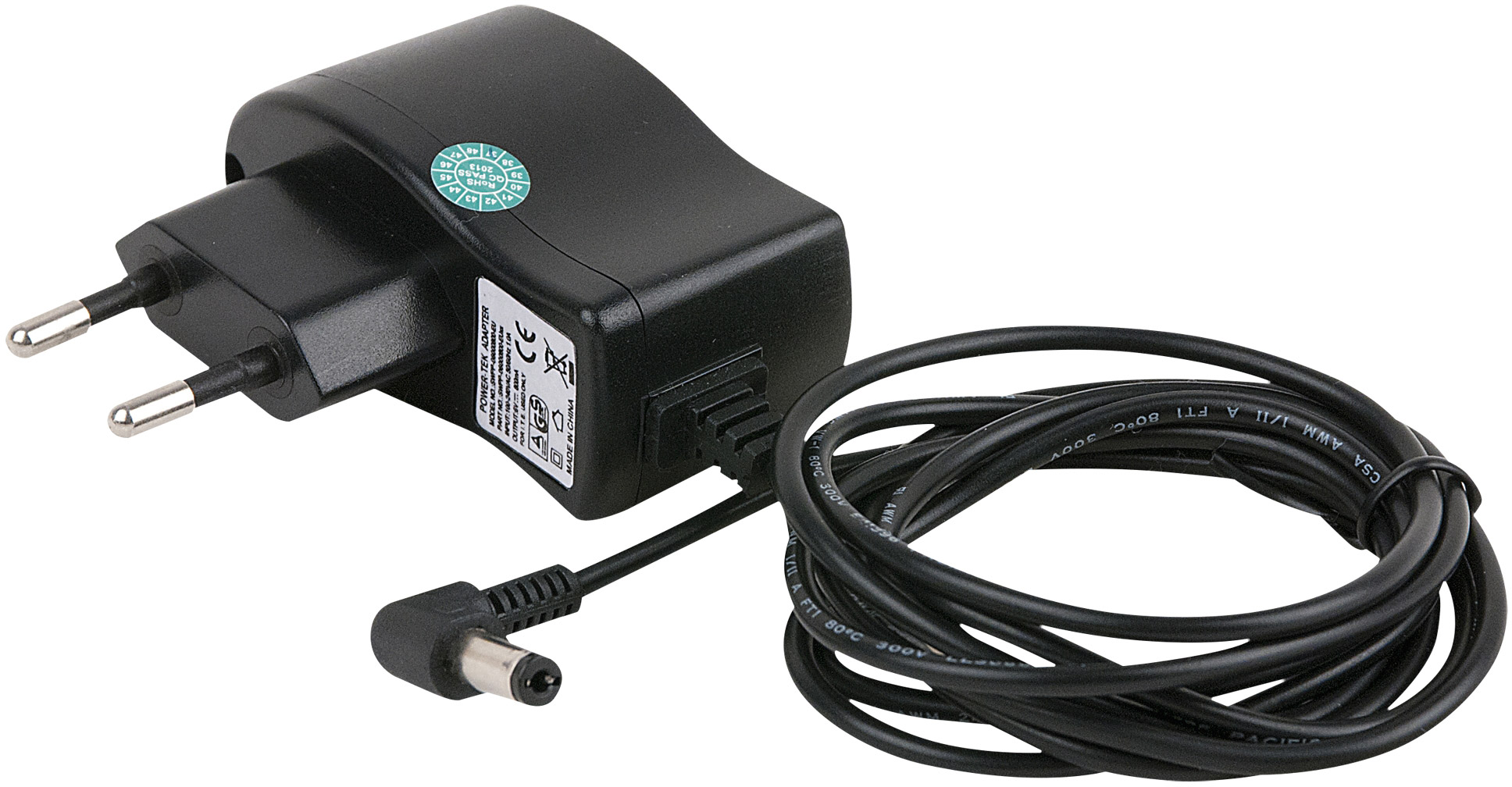

Included Accessories:	Adapter / Software
