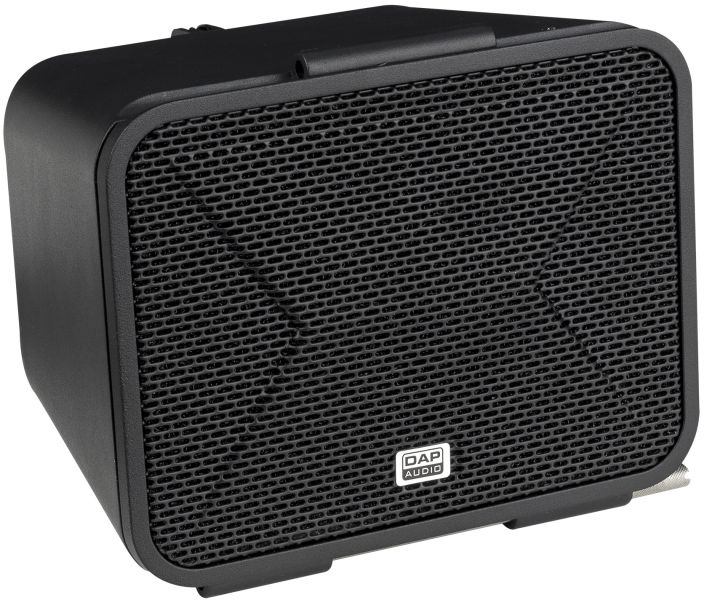

DAP-Audio Xi-3 Passive 4" installation speaker set - black

The DAP Xi-3 is a set of two elegant 4-inch passive installation speakers with three 0.5" dome tweeters each. These versatile speakers can be used as stand-alone full-range solution at public places such as gyms and shops. Combined with the DAP Xi-12B, it can form a compact line array set for medium-sized and higher demanding environments, such as clubs, bars, auditoriums and community centres.

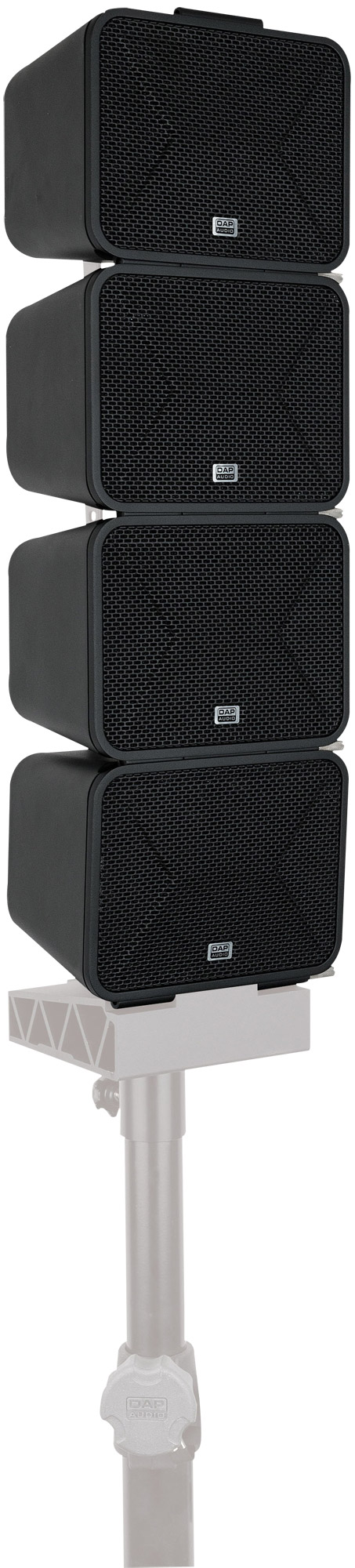

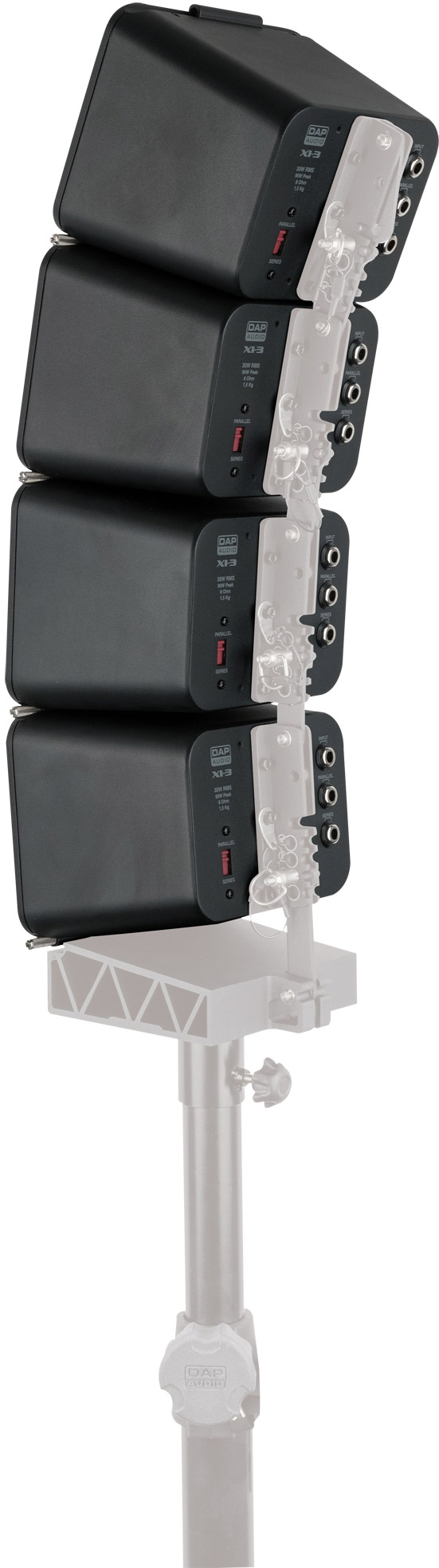

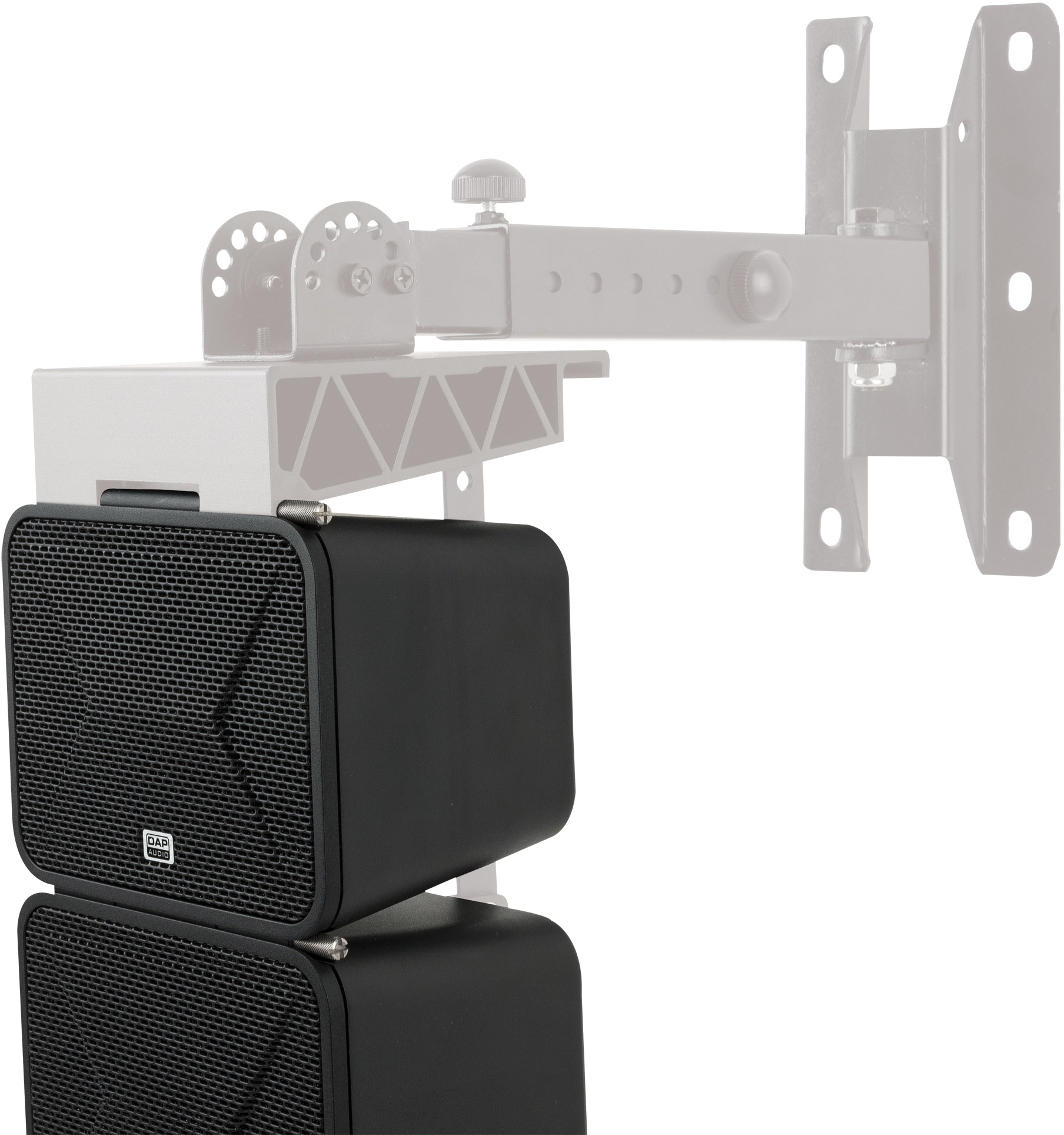

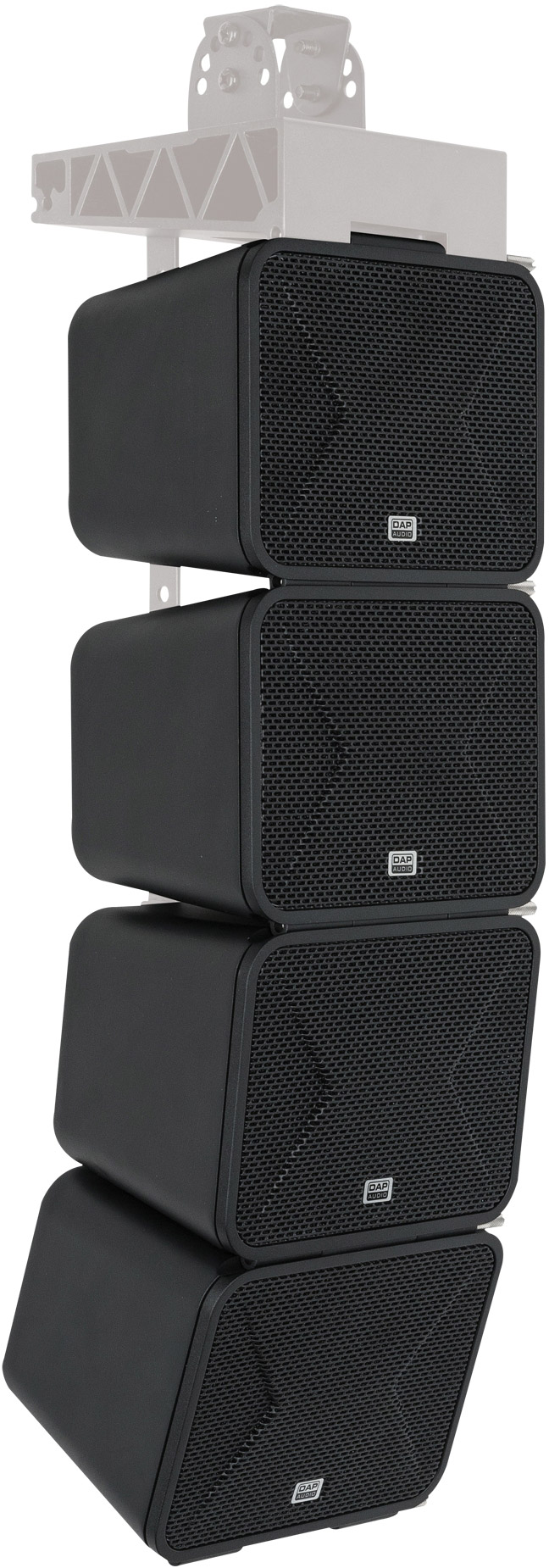

The Xi-3 is stackable up to 4 pieces when using a dedicated mobile bracket. You can also opt for a wall/suspension bracket, enabling you to stack up to 8 pieces. You can use different dispension angles between 0° and 12° for an optimal spread of the sound in any location.

The Xi-3 is not only a versatile solution, it also fits on any location. It is available in both white and black versions and works on any audio infrastructure up to 8 Ohms. A 20 cm jack cable is included.Technical data:

RMS Input Power:	30 W
Peak Input Power:	90 W

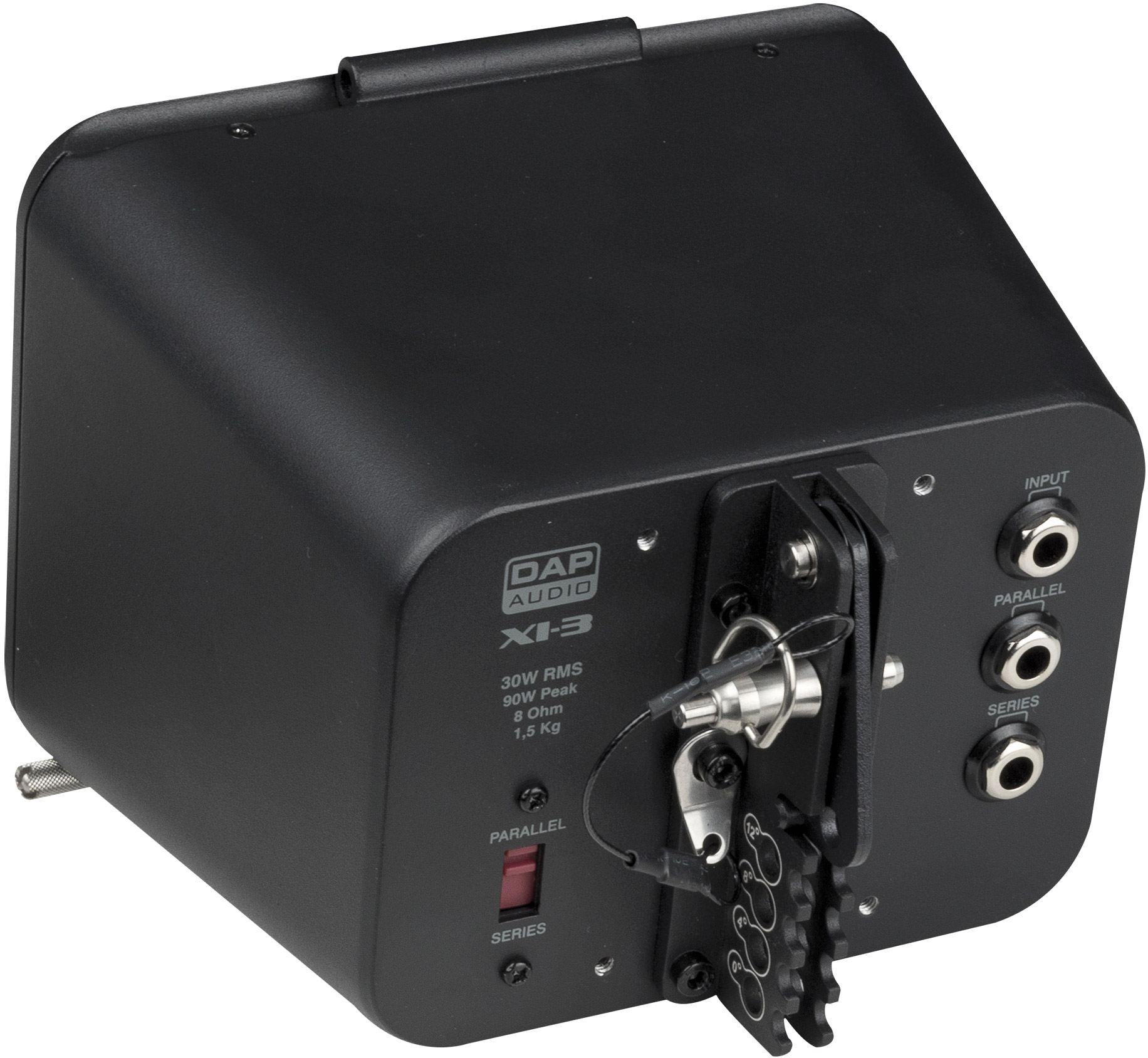

Passive Input Connection:	TS unbalanced 6,3mm
Passive Output Connector:	TS unbalanced 6.3 mm
THD Level %:	Speaker System:2-way
Speaker Sensitivity (1 W/1 m):	88 dB
Speaker Impedance:	8 Ω
Maximum SPL at 1 m:	94 dB
Frequency Response Minimum:	100 Hz
Frequency Response Maximum:	20000 Hz
Frequency Response (-10 dB) Minimum:	100 Hz
Frequency Response (-10 dB) Maximum:	20 Hz
Crossover Frequency (High):	3000 Hz
Woofer Diameter:	4"
Woofer Voice Coil Diameter:	1"
Woofer Magnet Type:	Neodymium
Compression Driver Diameter:	0.5"
Compression Driver Magnet Type:	Ferrite
Dispersion Angle (Horizontal):	110°
Dispersion Angle (Vertical):	20°
Height (mm):	141 mm
Width (mm):	170 mm
Length (mm):	145 mm
Material:	Aluminium
Colour:	Black
Finish:	Powder Coating
Weight:	1.5 kg
IP Rating:	IP20 (indoor use only)
Pole Mount:	Optional 35 mm pole mount
Speaker Grille Material:	Aluminium
Thread:	M6
Mounting Options:	Bracket / Wall
Mounting Orientations:	Vertical
Rigging Options:	Flying / Stacking
Included Cables:	TRS unbalanced 6.3 mm - TRS unbalanced 6.3 mm
