Pole mount for the DQOR series Includes 2 stainless steel band clamps with a diameter of up... more

Back to the overview

All information about the product:

"LD Systems DQOR PB - Pole Mount Bracket for the DQOR Series"

Pole mount for the DQOR series

Includes 2 stainless steel band clamps with a diameter of up to 290 mm
Suitable for mounting on cylindrical objects with a circumference of 35 to 290 mm
Option for mounting with screws for masts with a small diameter
Compatible with DQOR wall mount, CURV500 WMB, SAT WM10B and SUWMB10(W/B)

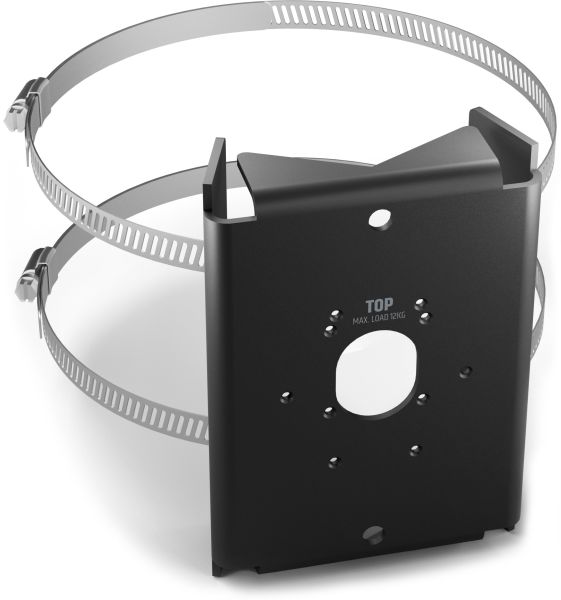

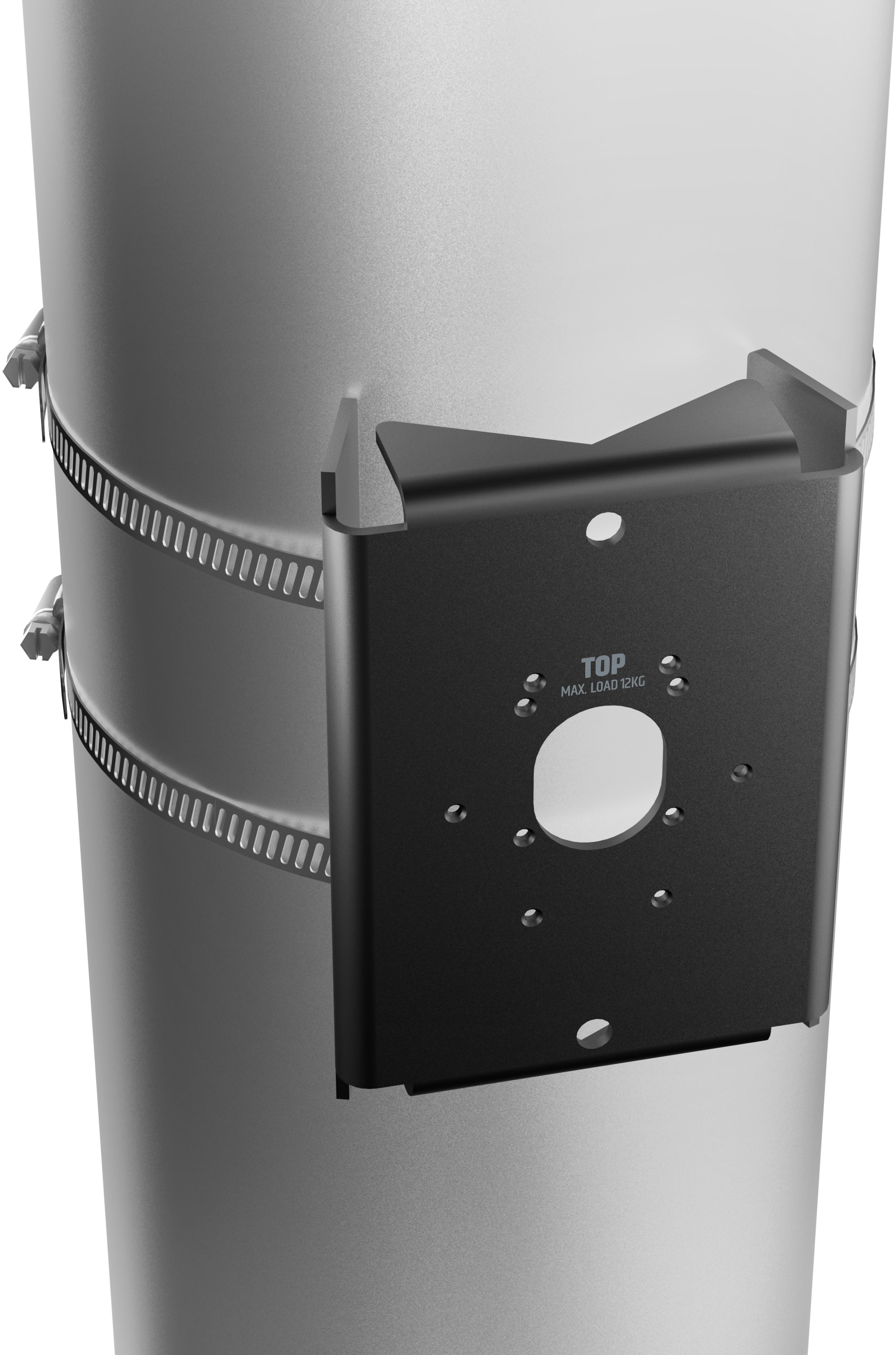

This pole mount has been developed for mounting DQOR loudspeakers on cylindrical objects (poles, trusses, etc.). The black bracket is made of solid stainless steel and comes with two stainless steel band clamps for secure mounting. Alternatively, it can also be attached with two screws (not included). The holes in the bracket are compatible with the CURV500 WMB(W), LDSATWMB10(W/B) and SUWMB10(W/B) wall brackets.

Technical data:

Product type:	Loudspeaker pole mount
Material:	stainless steel
color:	Black.
Surface:	Black matt powder-coated
Load capacity:	20 kg
width:	116.9 mm
Height:	165 mm
Depth:	43.2 mm
Pipe diameter:	35 mm - 290 mm
Weight:	0.9 kg
